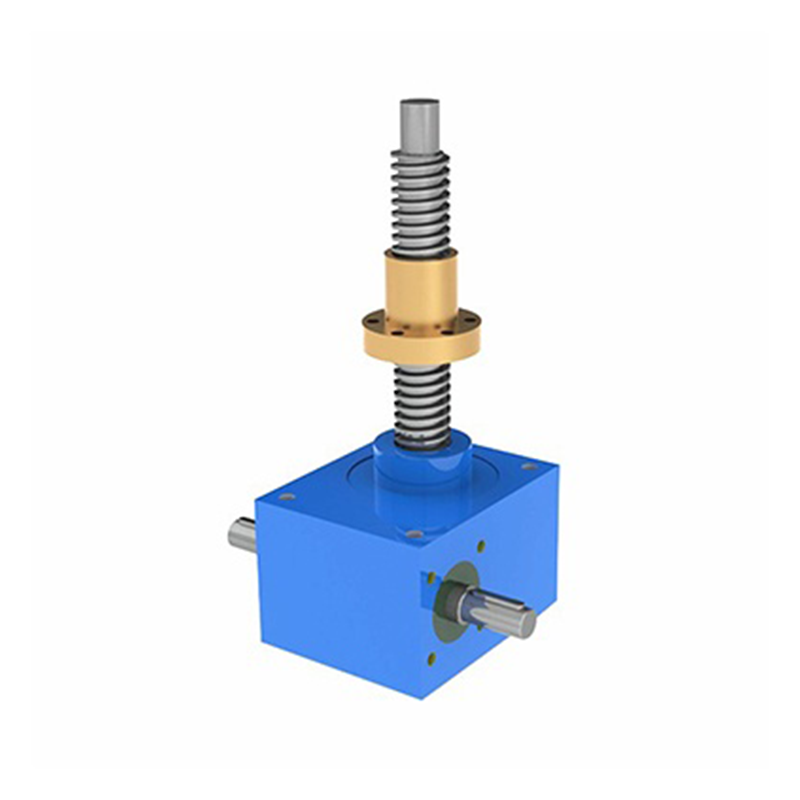

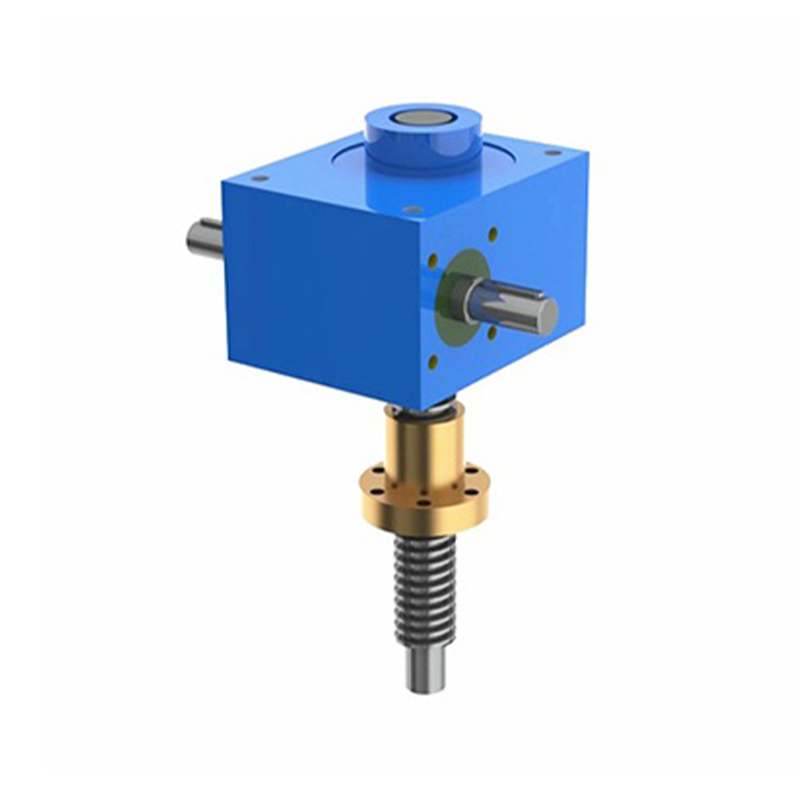

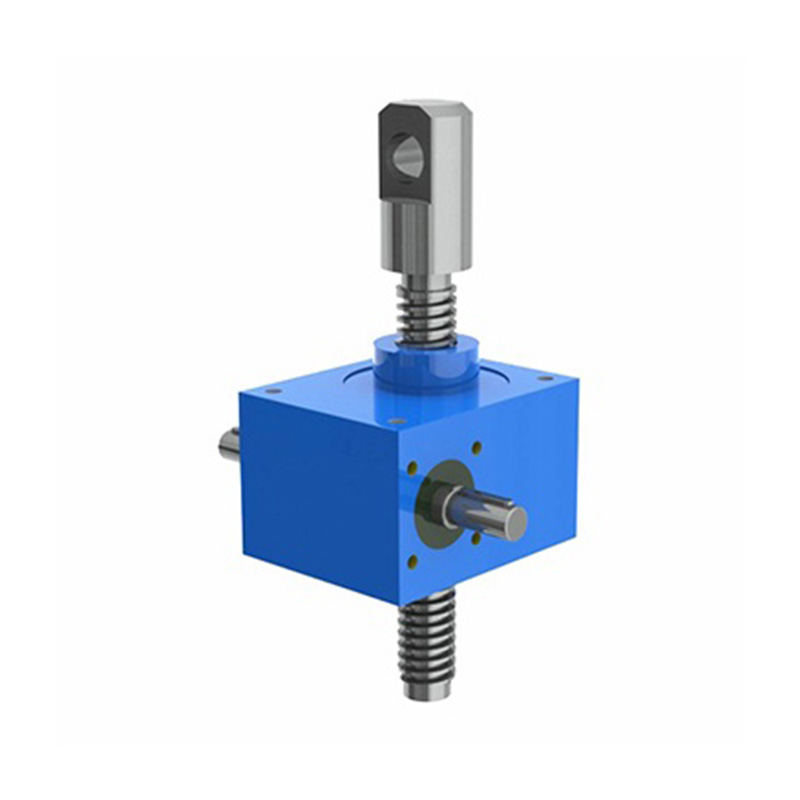

SJA Worm Gear Screw Jack

Product Description

The SJA worm gear screw jack is widely used in industries such as machinery, construction, hydraulics, and metallurgy, offering various functions including lifting, lowering, pushing, tilting, and height adjustment with the help of auxiliary components.
The SJA worm gear screw jack is a fundamental lifting component characterized by a compact structure, small size, lightweight, wide range of power sources, easy installation, noiseless operation, multifunctionality, diverse configurations, flexible use, high reliability, and long service life.

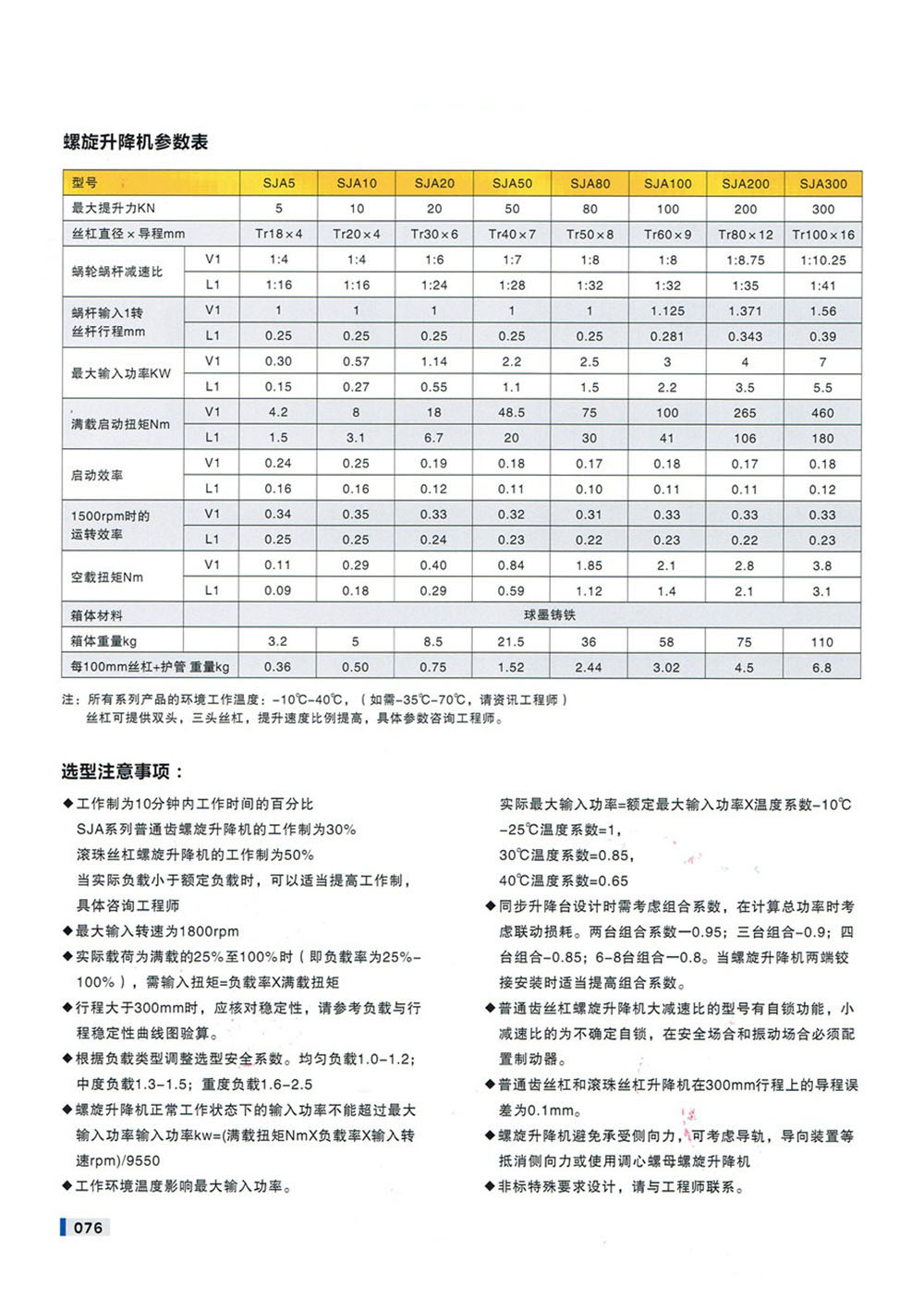

Features of the SJA Worm Gear Screw Jack

Thrust Range: 0.5-30 tons

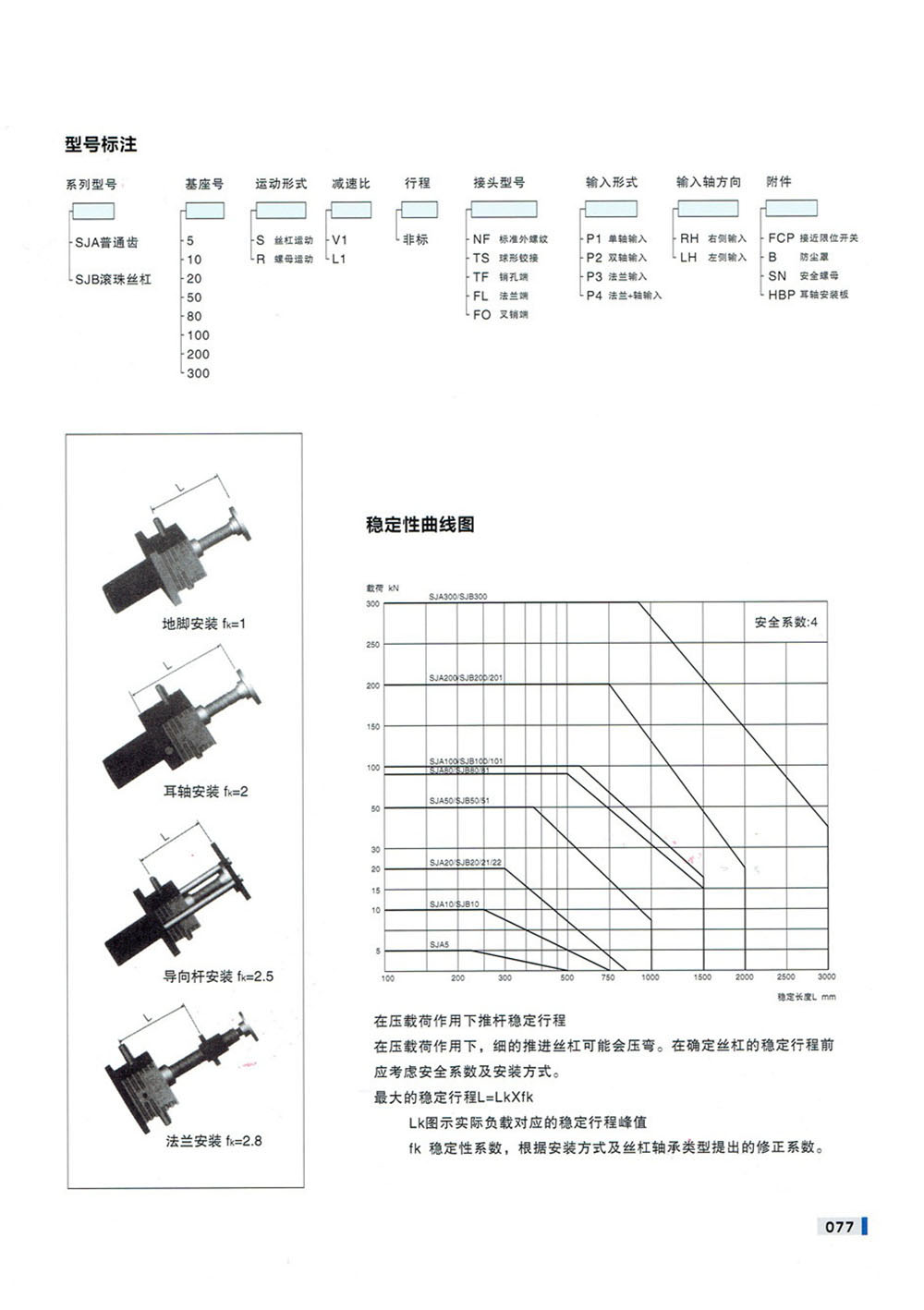

Stroke: Up to 8 meters (considering screw stability and guidance systems)

Duty Cycle: 30% (can be increased if the load rate is low)

Lifting Speed: Less than 1500 mm/min (23 mm/s)

Efficiency: Less than 33%, with self-locking function; large reduction ratio L1 ensures self-locking

Precision Positioning: With an anti-backlash device, precision can reach 0.05 mm

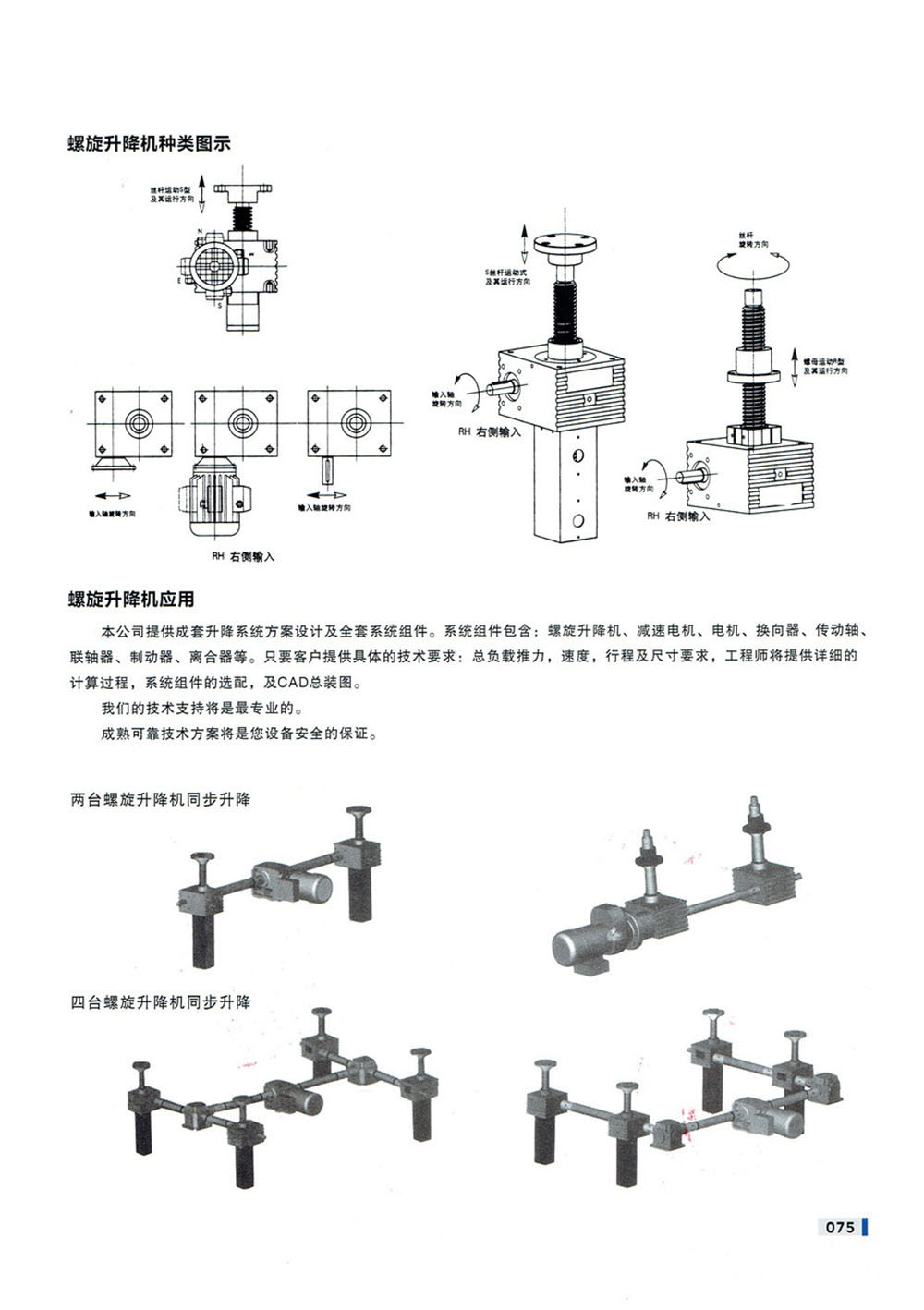

High Synchronization: Multiple screw jacks can be driven by the same motor for mechanical synchronization

Optional Accessories: Encoder, limit switch, dust cover, safety nut, reducer, standard motor, servo motor, stainless steel materials, etc.

Easy Operation and Maintenance: Low noise.

The square grooved housing of the jack enhances heat dissipation, extending the service life of lubricating grease. The ductile iron housing significantly improves strength and performance, allowing broad applications in high and low-temperature environments. The square tail cap design prevents the screw from rotating. High-quality machining and assembly processes ensure high impact resistance, strength, low noise, long life, and compact size.

The modular design enriches product combinations, allowing seamless integration with motors, geared motors, and non-standard accessories, providing thousands of easy configuration options for customers.

Custom designs are available upon request, including stainless steel housings and screws, multi-thread screws, and models resistant to low or high temperatures.
