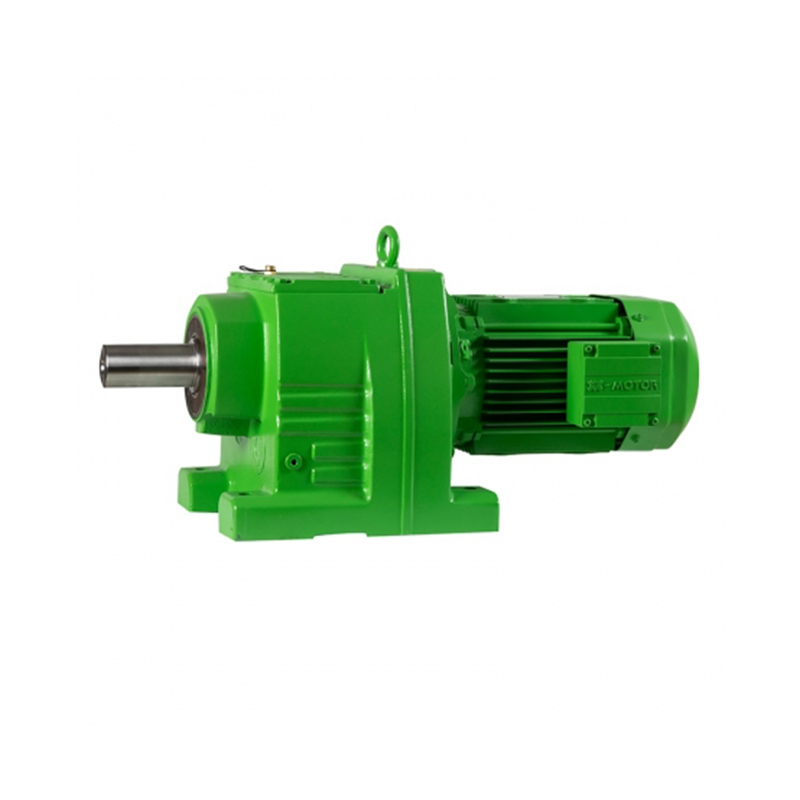

R series helical gear hardened reducer

Product Description

The R series helical gear hardened reducer is widely used in industries such as food, pharmaceuticals, chemicals, steel, metallurgy, textiles, plastics, papermaking, and machinery equipment, as well as production lines.

Technical Features:
1. The R series gear reducer is characterized by low noise, high energy efficiency, and minimal vibration.
2. Made from high-quality forged steel materials with a rigid cast iron housing, the gear surface undergoes high-frequency heat treatment.
3. Precision machining ensures shaft parallelism and bearing alignment, forming a helical gear drive assembly with a reducer configured with various types of motors, combined into an integrated electromechanical system, ensuring product quality and performance.
4. Manufactured in compliance with international technical standards, incorporating high technological content.
5. Space-saving, reliable, durable, with high overload capacity, and a power range of up to 160 kW.
6. Low energy consumption, performance, with reducer efficiency of over 95%.
7. The R series can withstand high radial loads.

Performance Features:
Compact structure with minimal offset output, the use of housing space; two-stage and three-stage models are available in the same housing.
Features a one-piece cast housing, offering good structural rigidity and enhanced shaft strength and bearing lifespan.

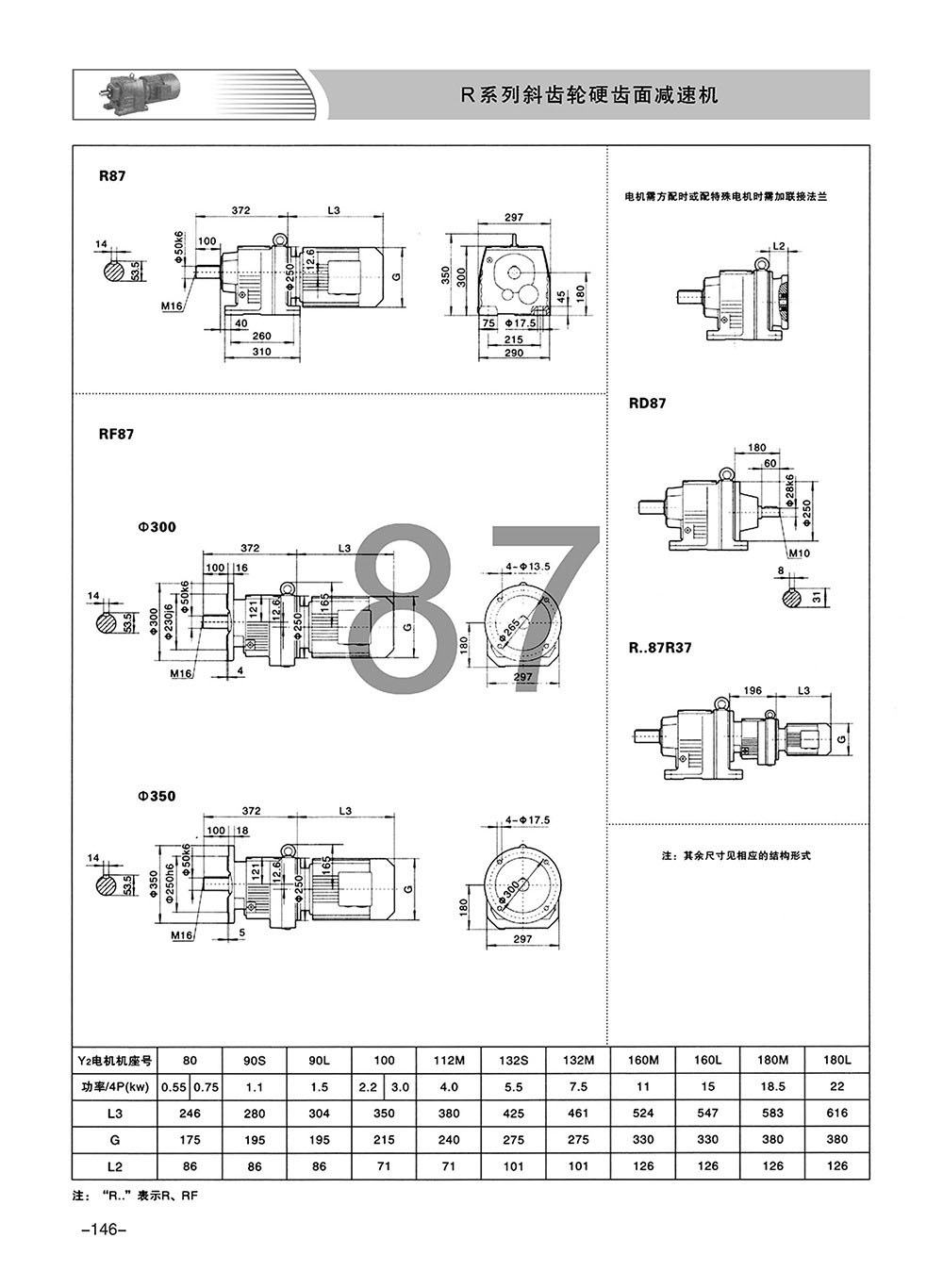

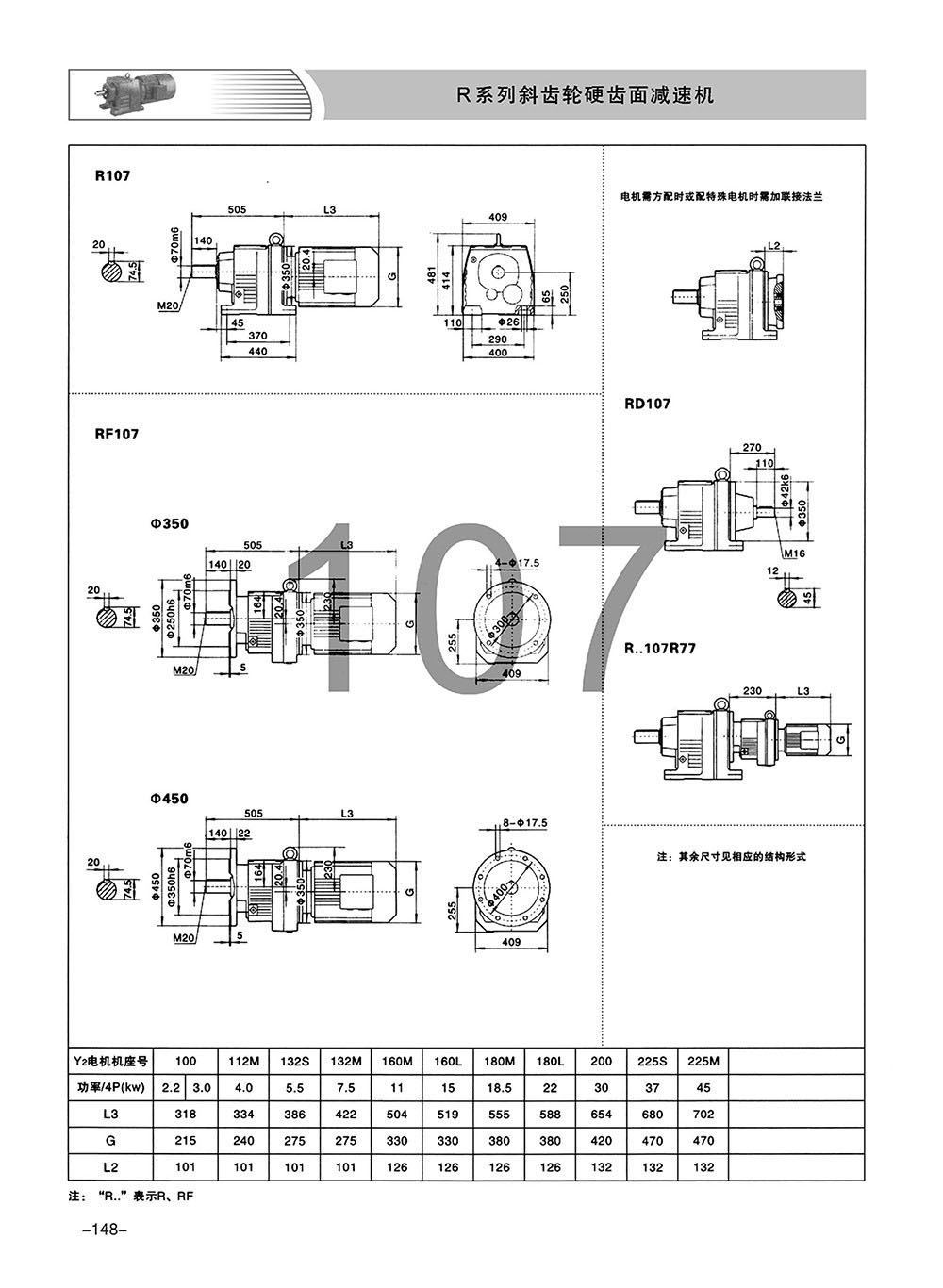

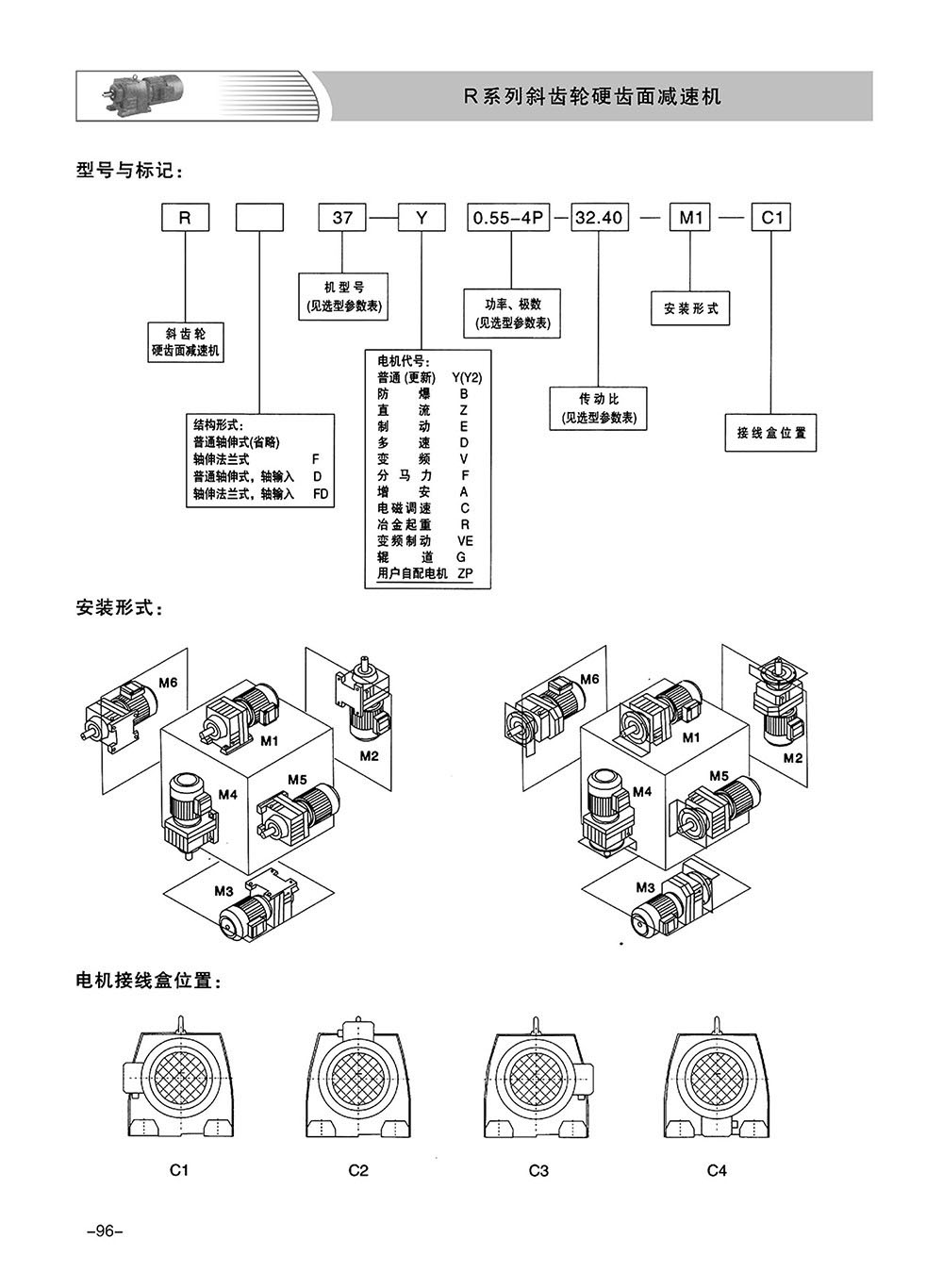

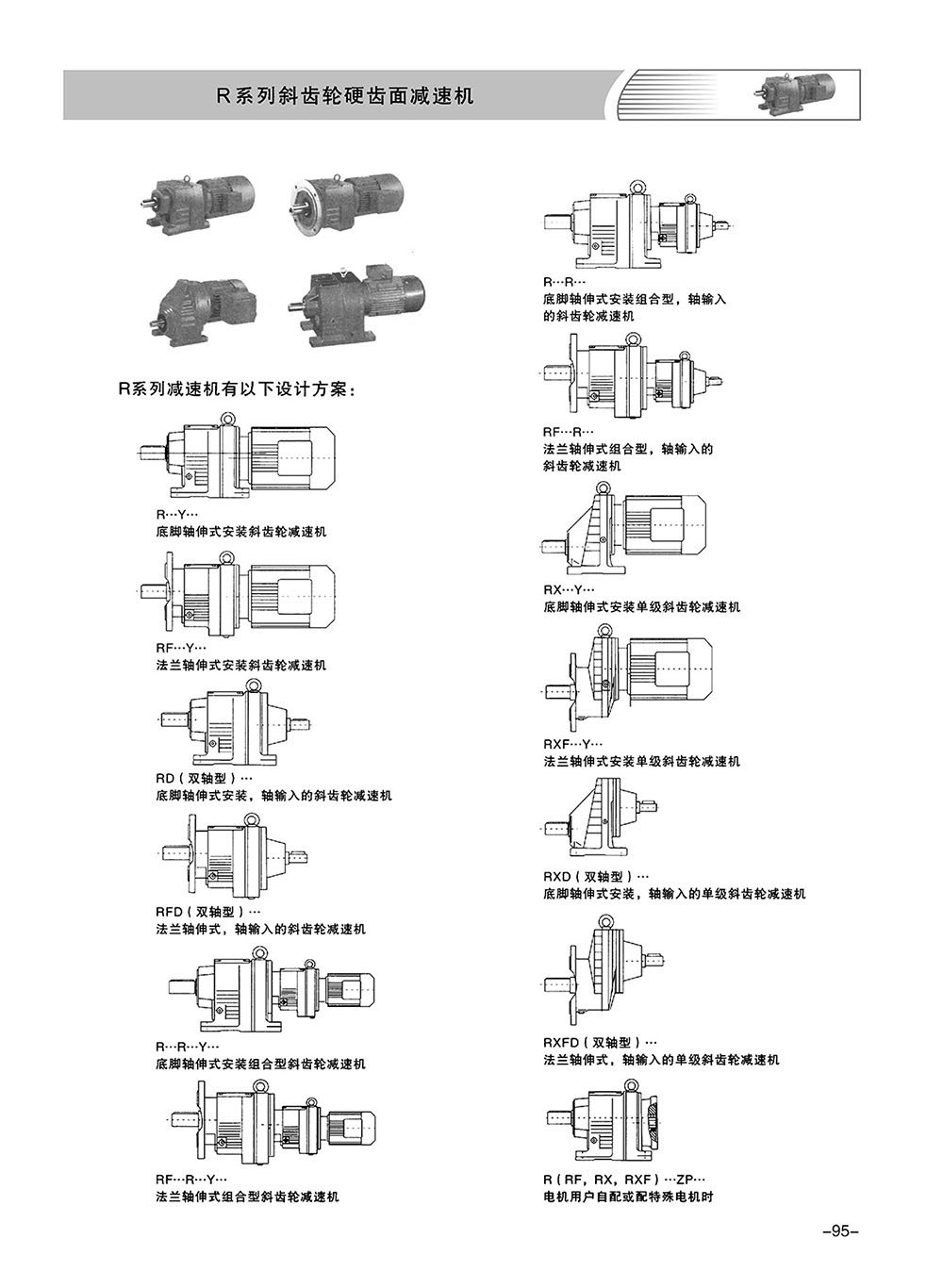

Mounting options include foot mounting and flange mounting with various sizes of flanges for easy selection.
Solid shaft output with average efficiency of 96% for two-stage, 94% for three-stage, and 85% for R/R combinations.
The RM series, designed for mixing, can withstand large axial and radial forces.

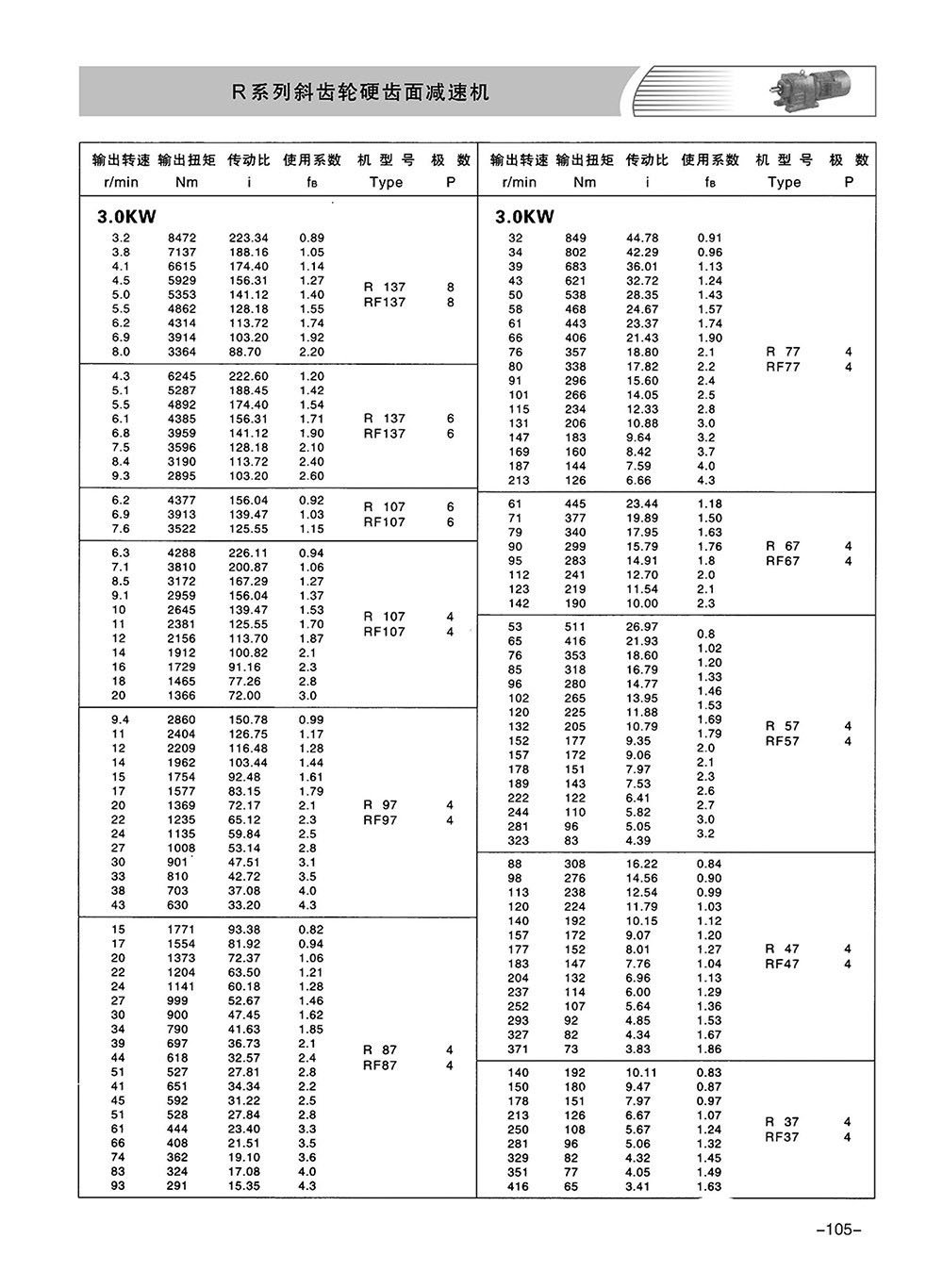

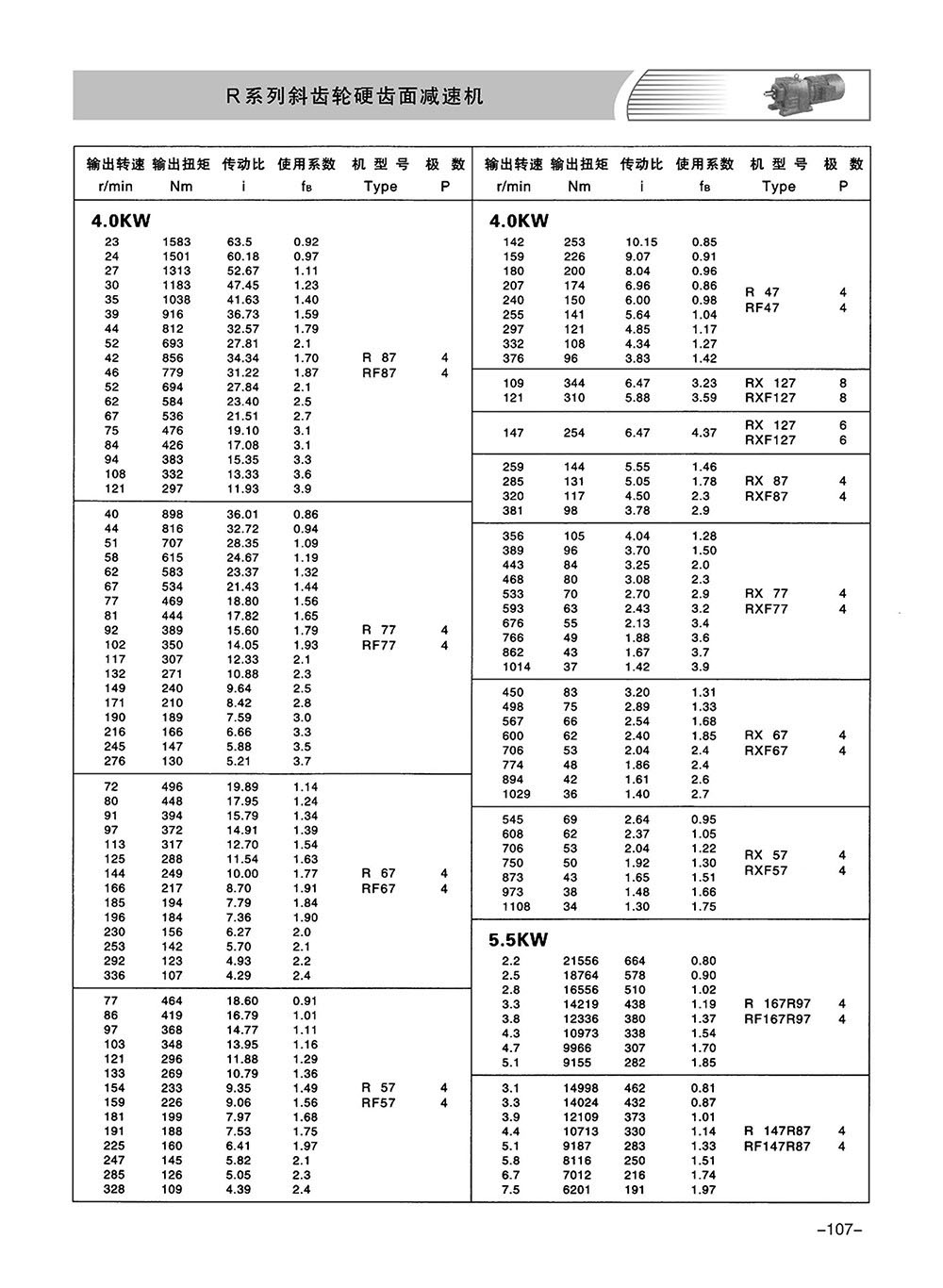

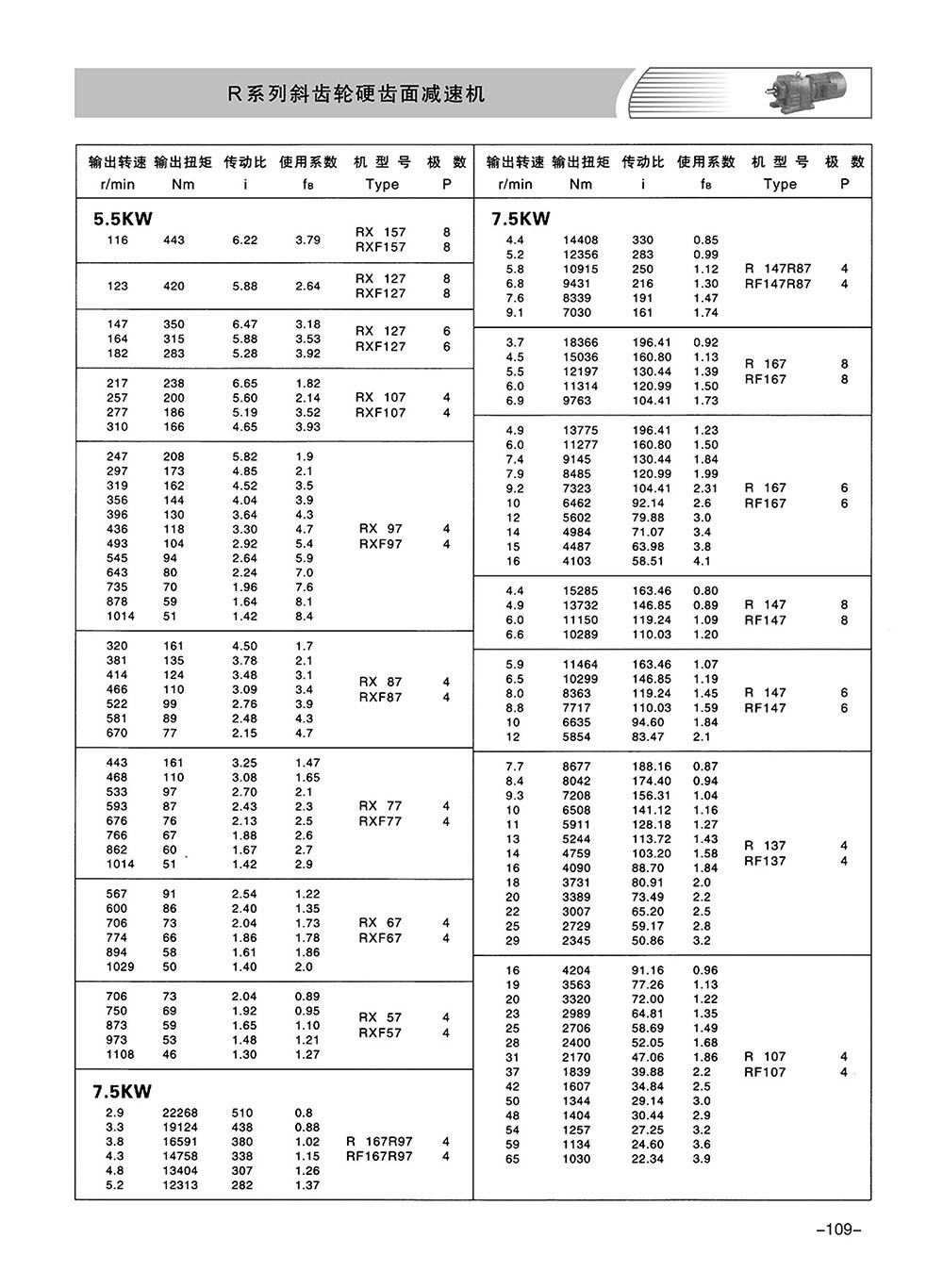

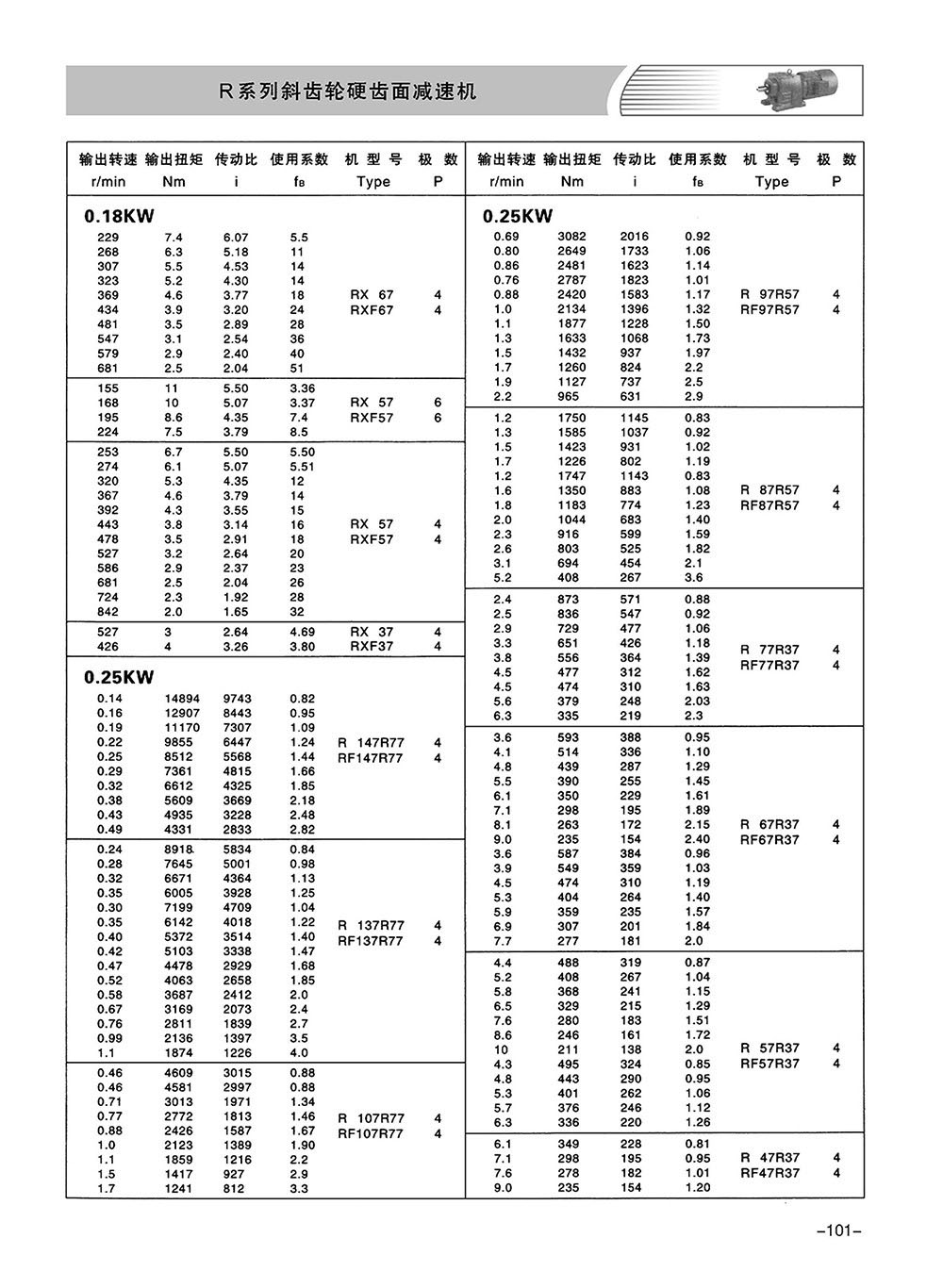

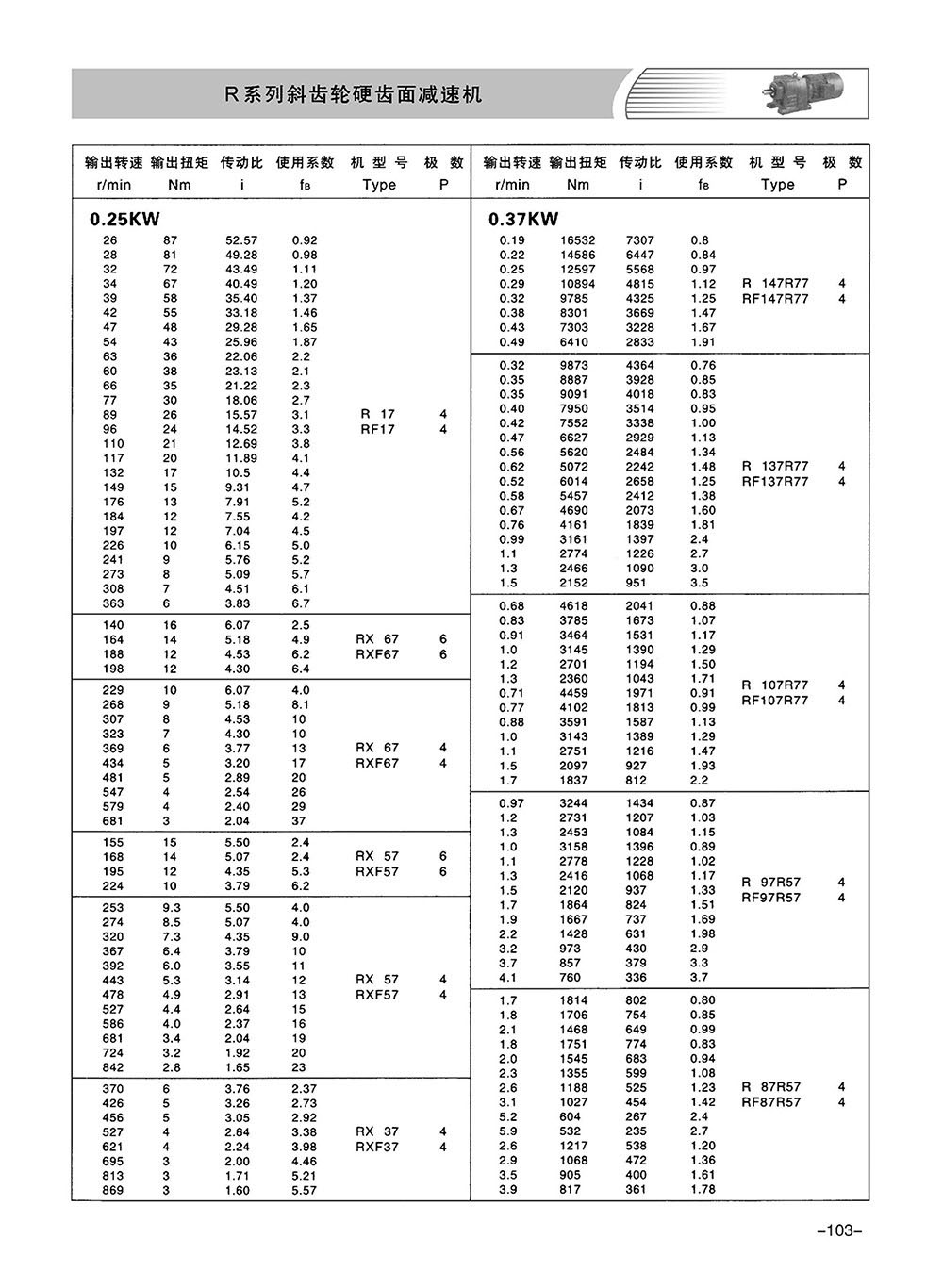

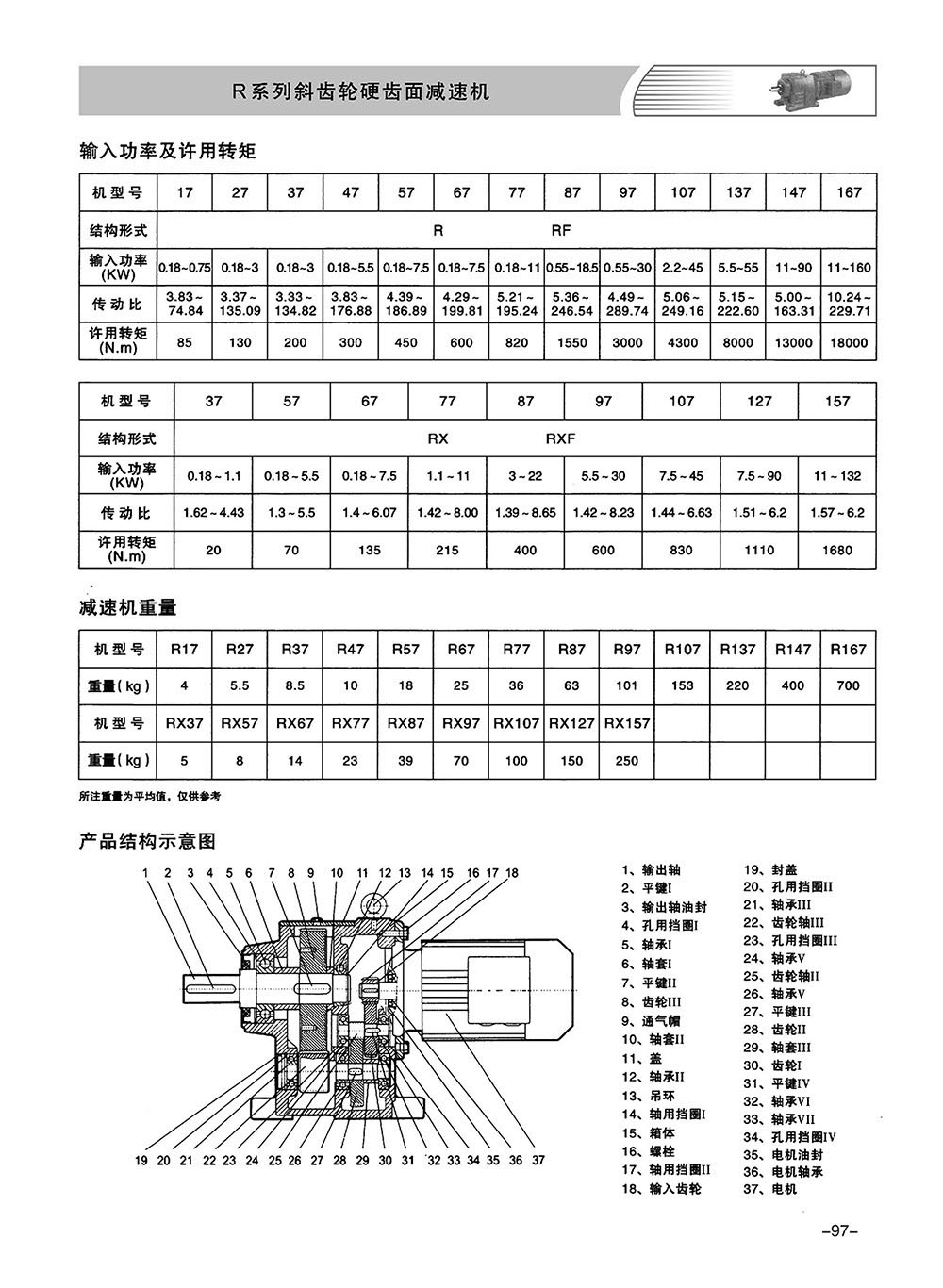

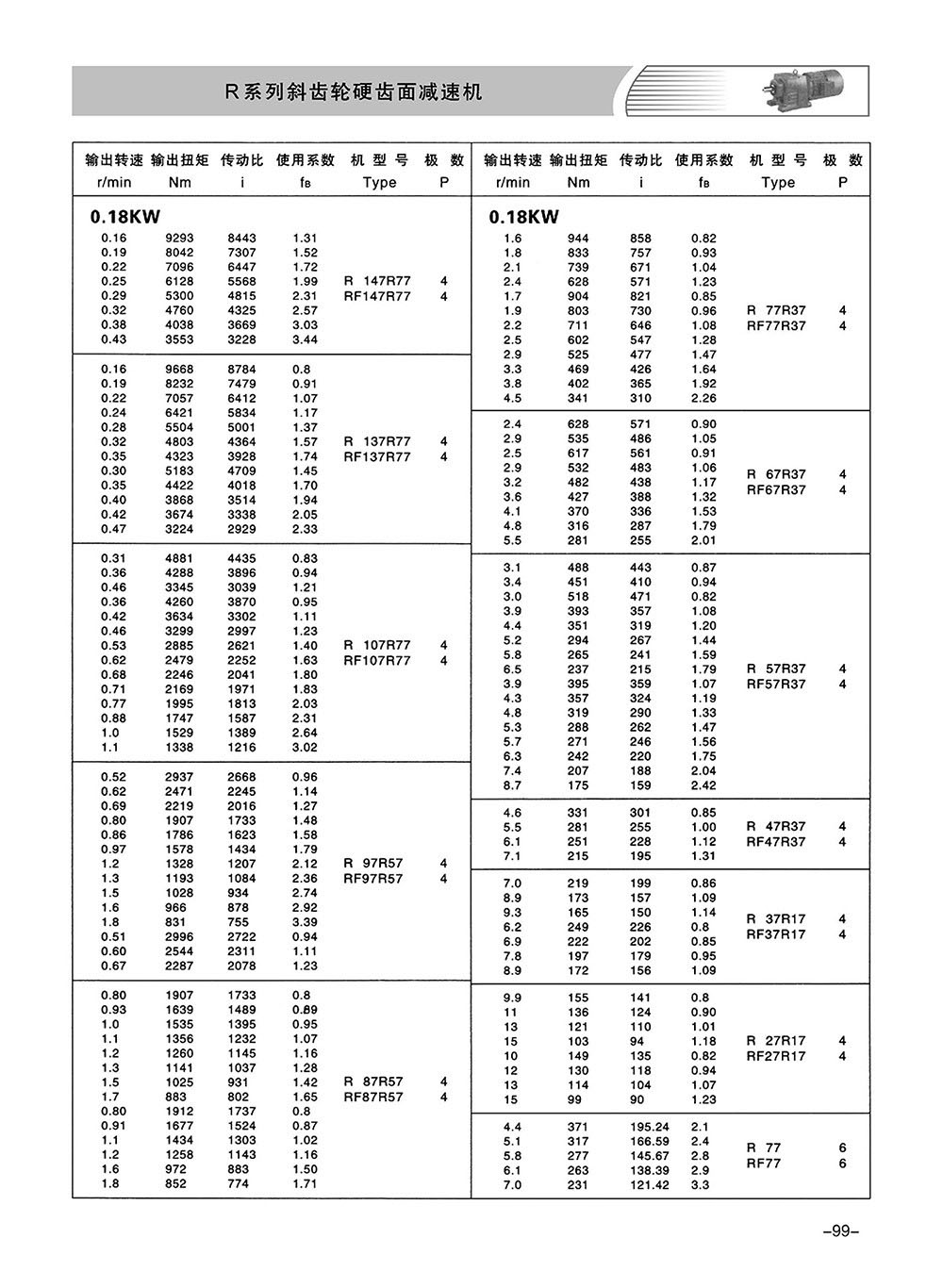

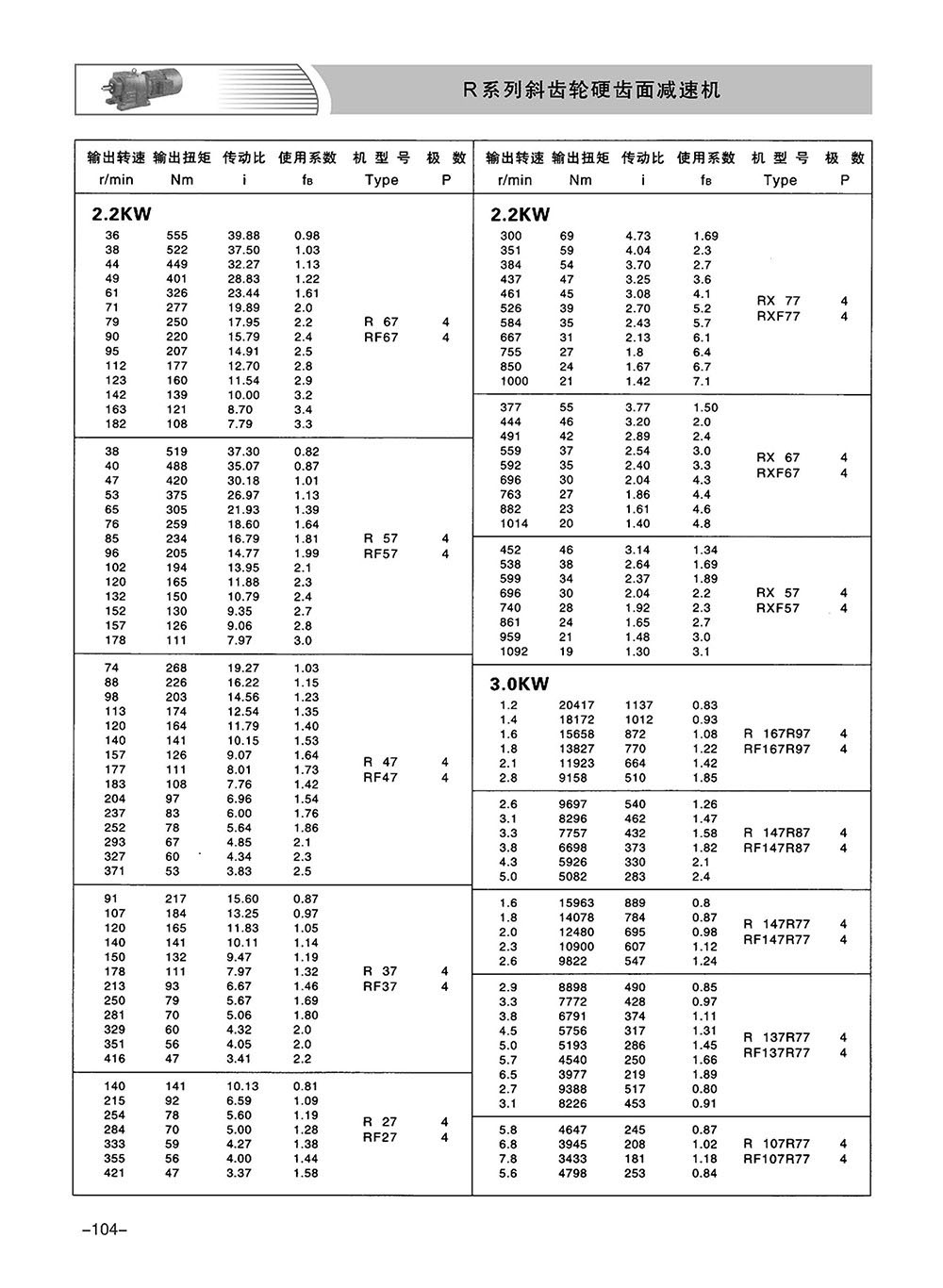

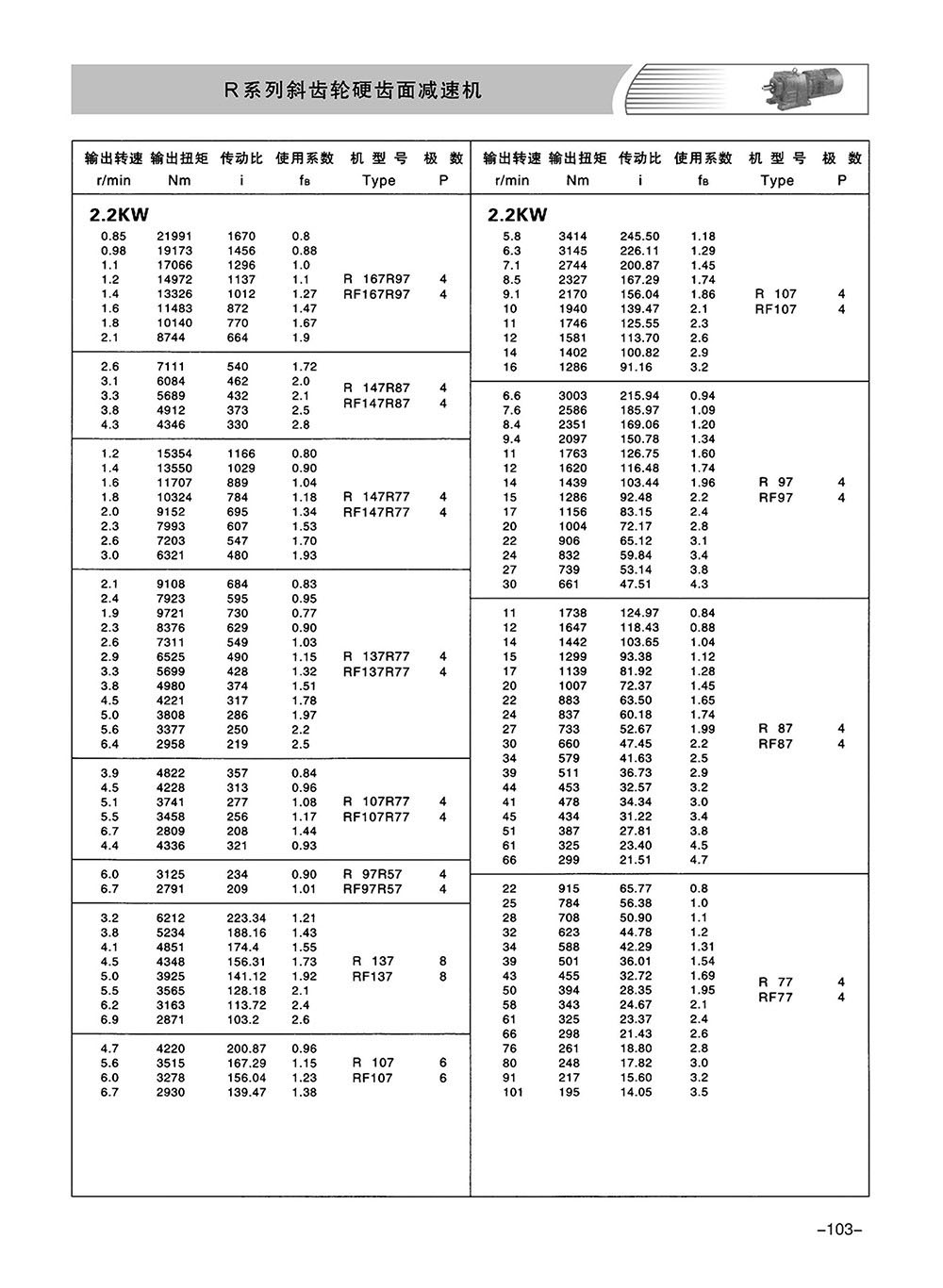

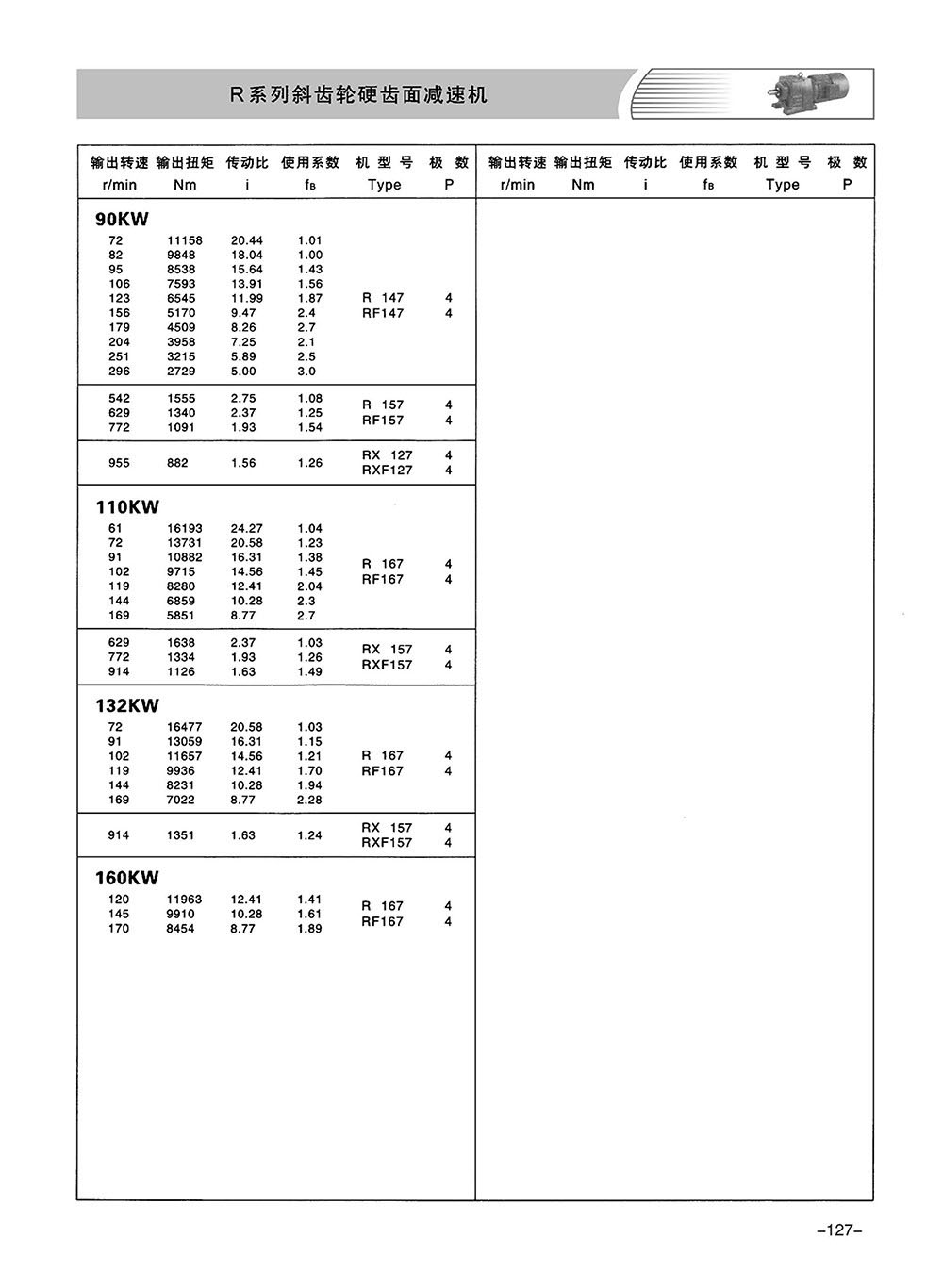

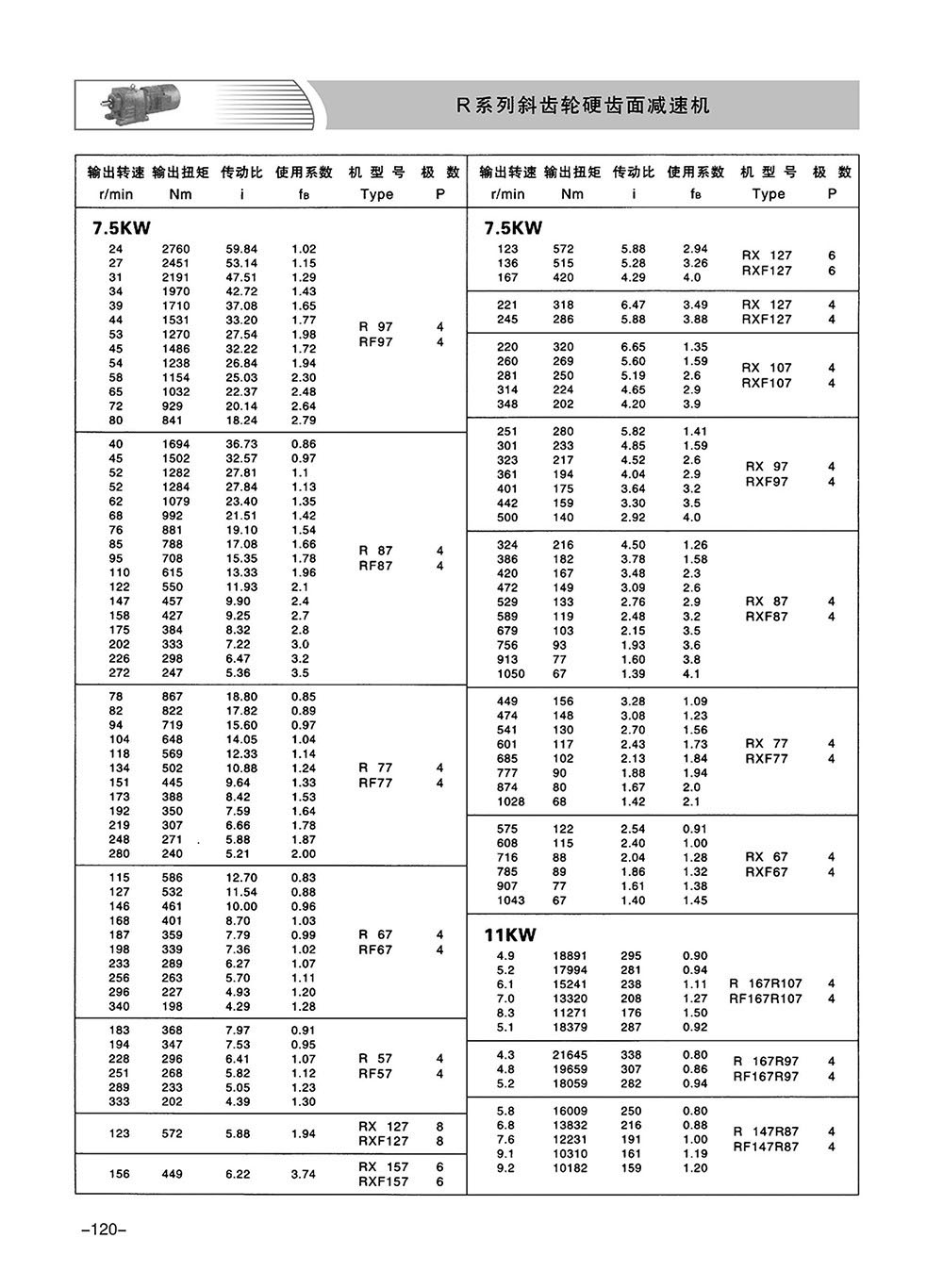

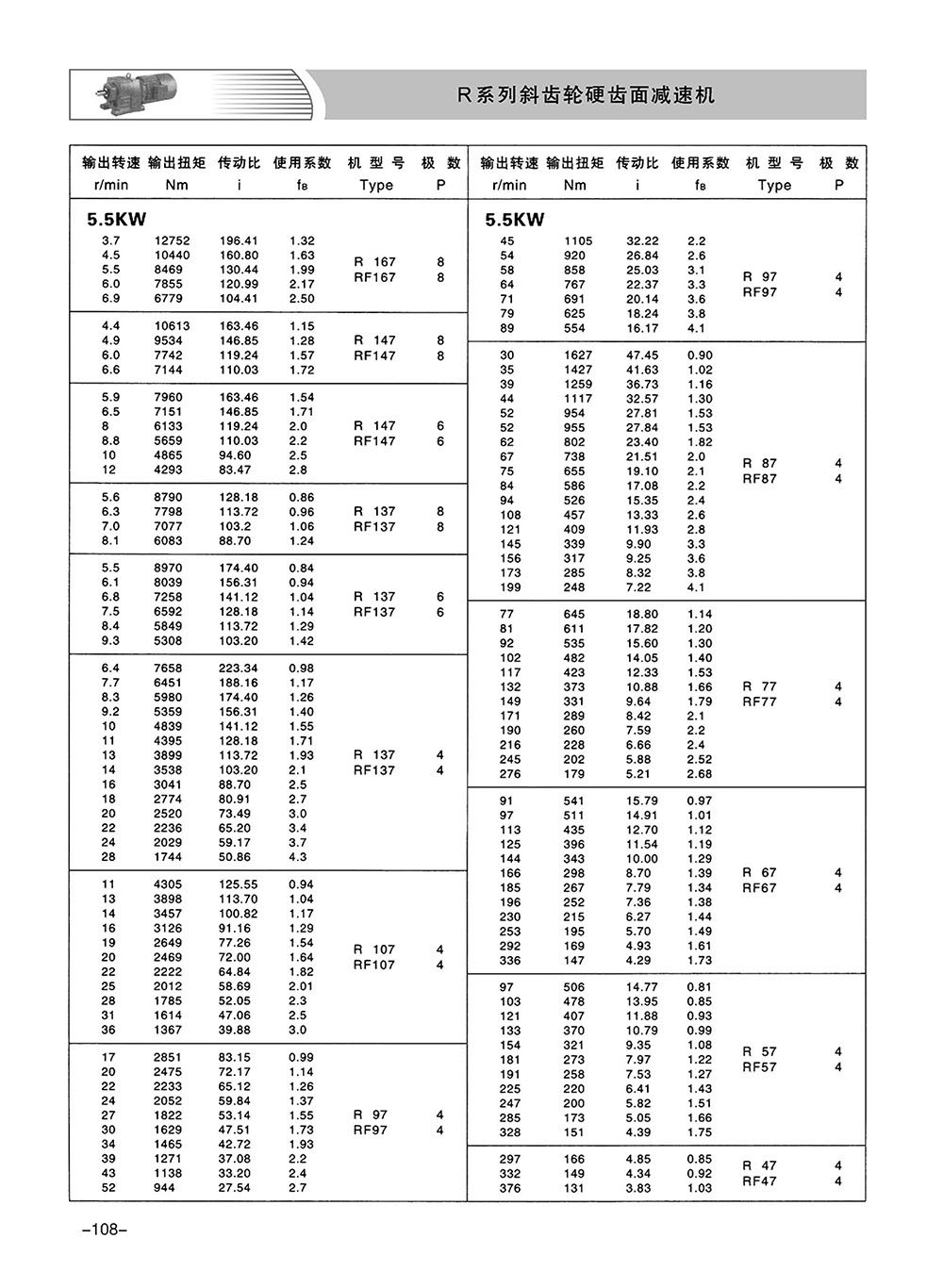

Technical Parameters:

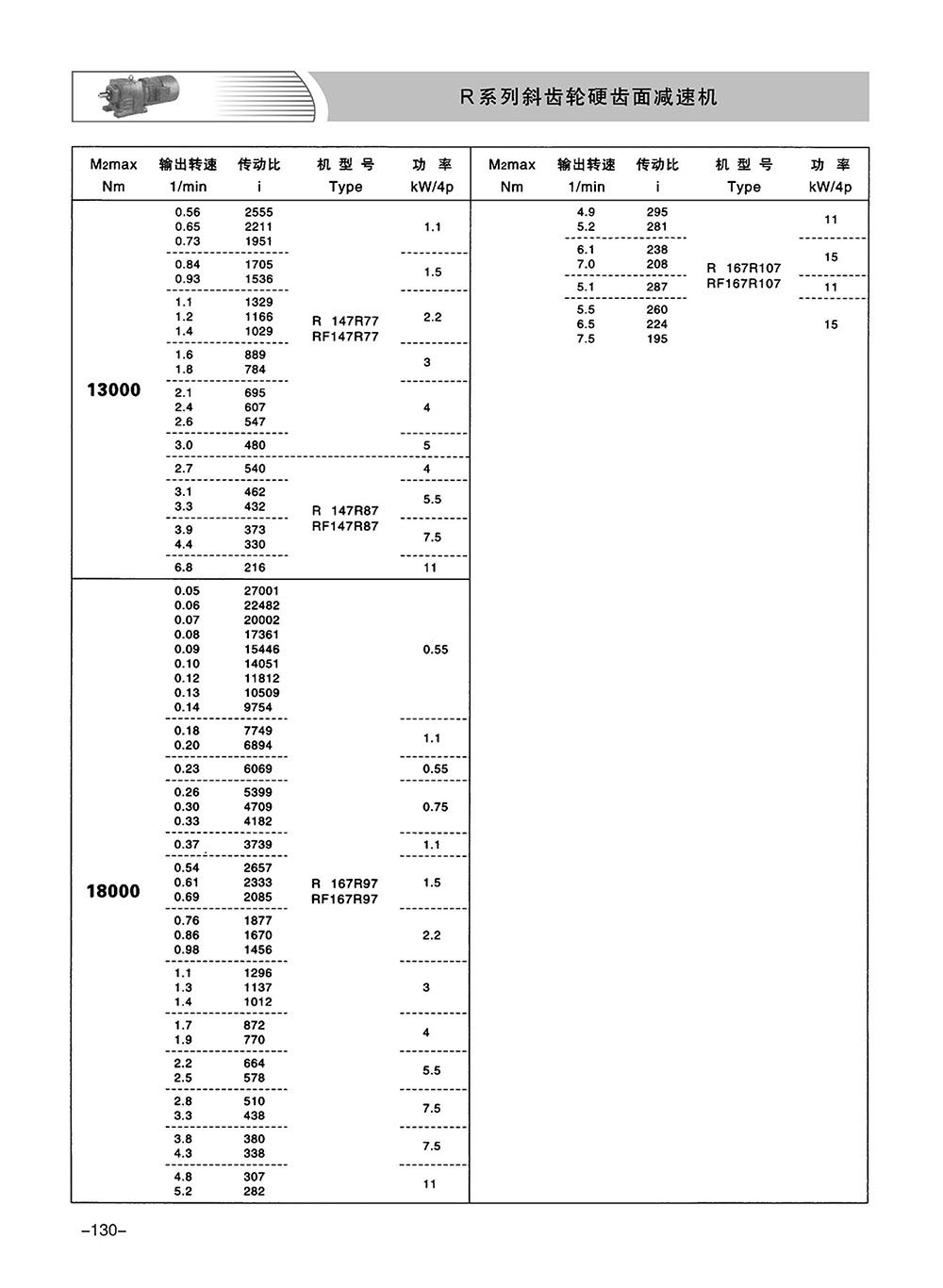

Speed Ratio Range: R basic type 3.33 to 289.74, RX type 1.3 to 8.65, R/R combination type up to 27001.
Torque Range: R basic type 85 to 18000 Nm, RX type 20 to 1680 Nm.
Power Range: R basic type 0.18 to 160 kW, RX type 0.18 to 132 kW.
