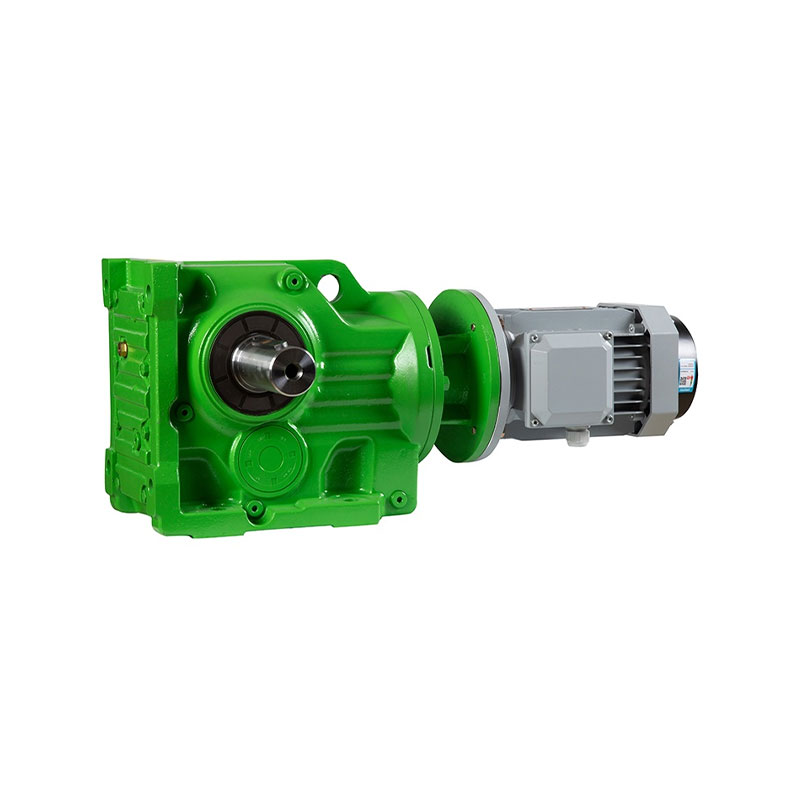

K series spiral bevel gear reducer

Product Description

The K series spiral bevel gear reducer produced by our company is characterized by its compact size, high torque transmission, high efficiency, low energy consumption, superior performance, smooth transmission, low noise, high load capacity, low temperature rise, and long service life.

Features:
High Versatility & Low Maintenance: This series offers strong adaptability, easy maintenance, and low maintenance costs. For production lines, maintaining the entire line requires only a few spare transmission parts.
Modular Design: The modular unit structure significantly reduces the number of parts and inventory, greatly shortening delivery cycles.
High Transmission Efficiency & Low Energy Consumption: The high-rigidity cast iron housing with reinforced ribs enhances strength. The hardened gears, made from high-quality alloy steel, are carburized, quenched, and precision ground, ensuring smooth operation, low noise, high load capacity, low temperature rise, and long service life.
Enhanced Sealing System: The new sealing design ensures excellent protection, making the reducer suitable for continuous operation in harsh environments, including corrosive and humid conditions.
The K series spiral bevel gear reducer offers broad adaptability with various motor combinations, installation positions, and structural options to meet different operational needs. The high-quality rigid cast iron housing significantly improves hardness and impact resistance, while the high-frequency heat-treated gears greatly enhance hardness and wear resistance. The planetary design allows integration with the MB series stepless variator to achieve stepless speed regulation over a wide range of low output speeds. This series is widely used in industries such as light industry, food, beer and beverages, chemicals, escalators, automated warehousing equipment, construction machinery, steel metallurgy, environmental protection, power plants, coal, mining, paper, engineered wood, automotive, and ports (airports, docks).

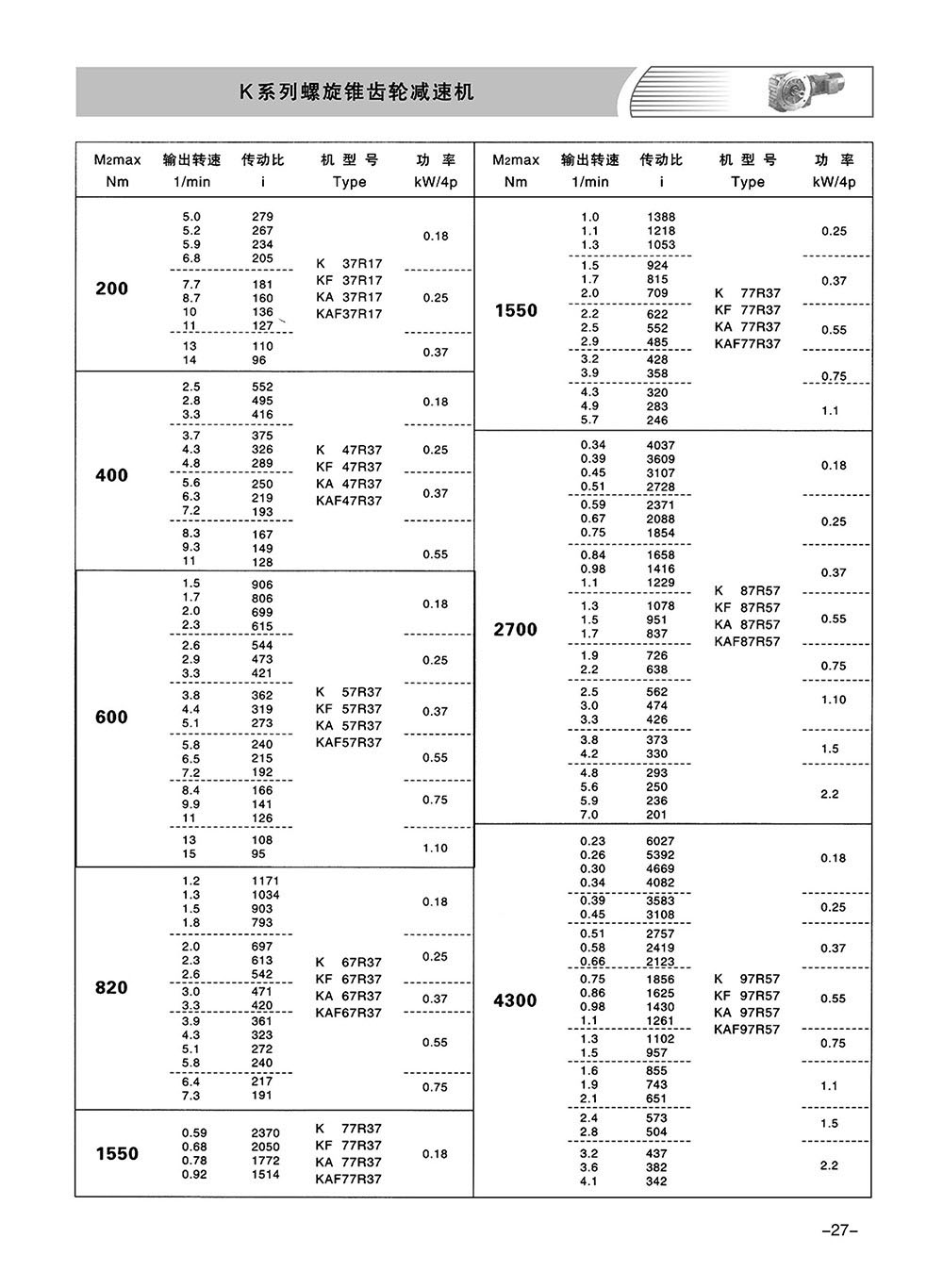

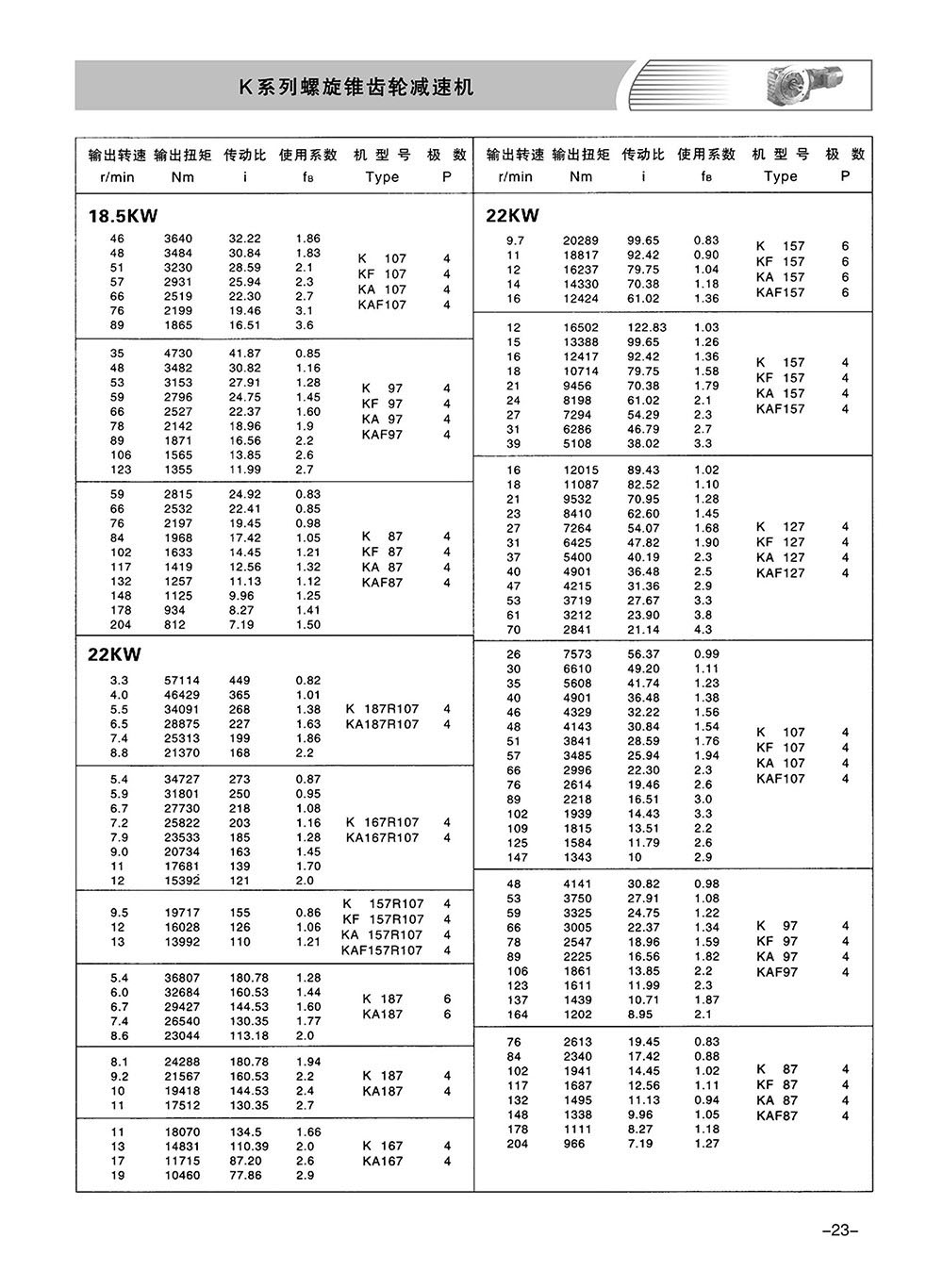

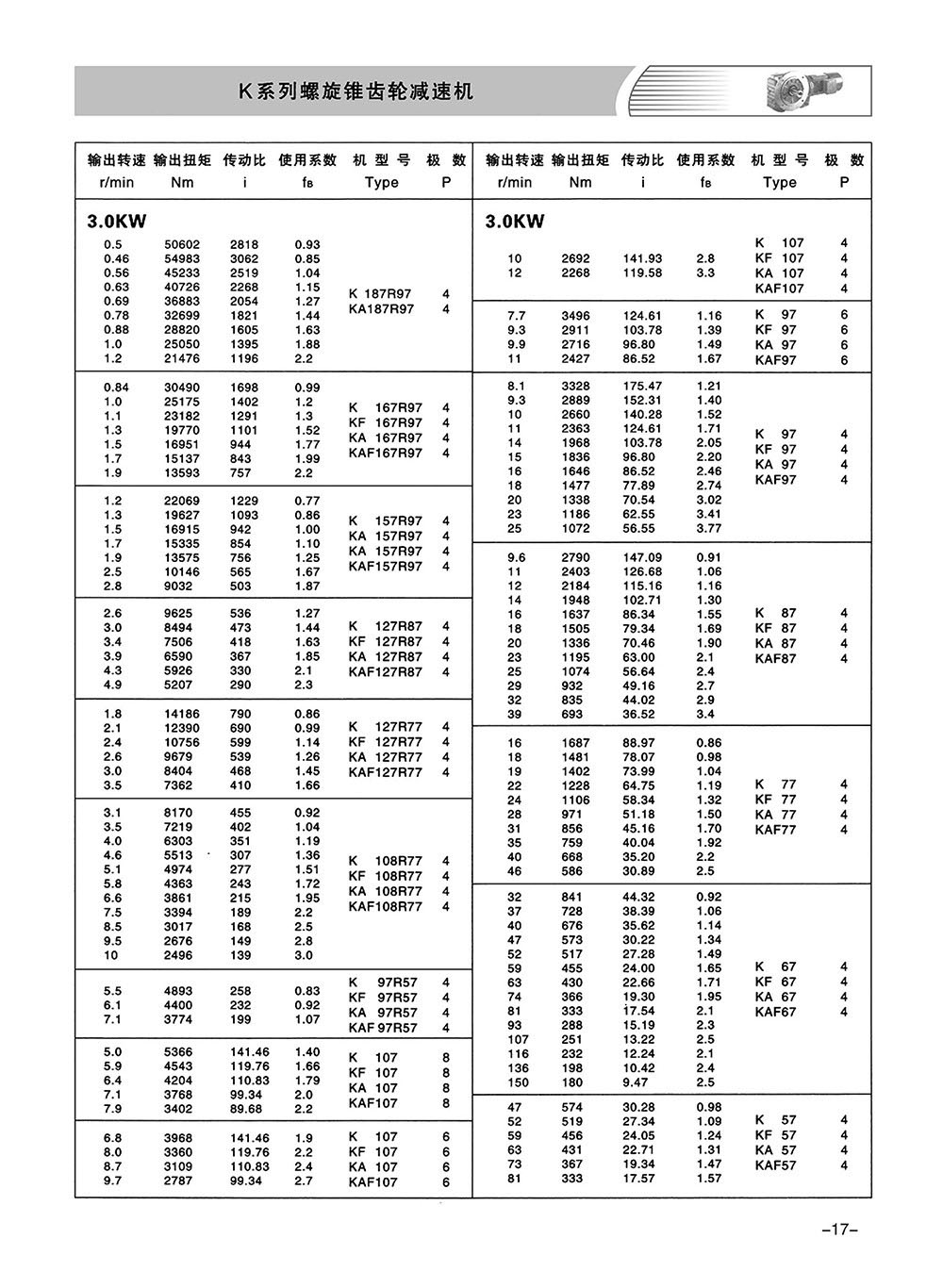

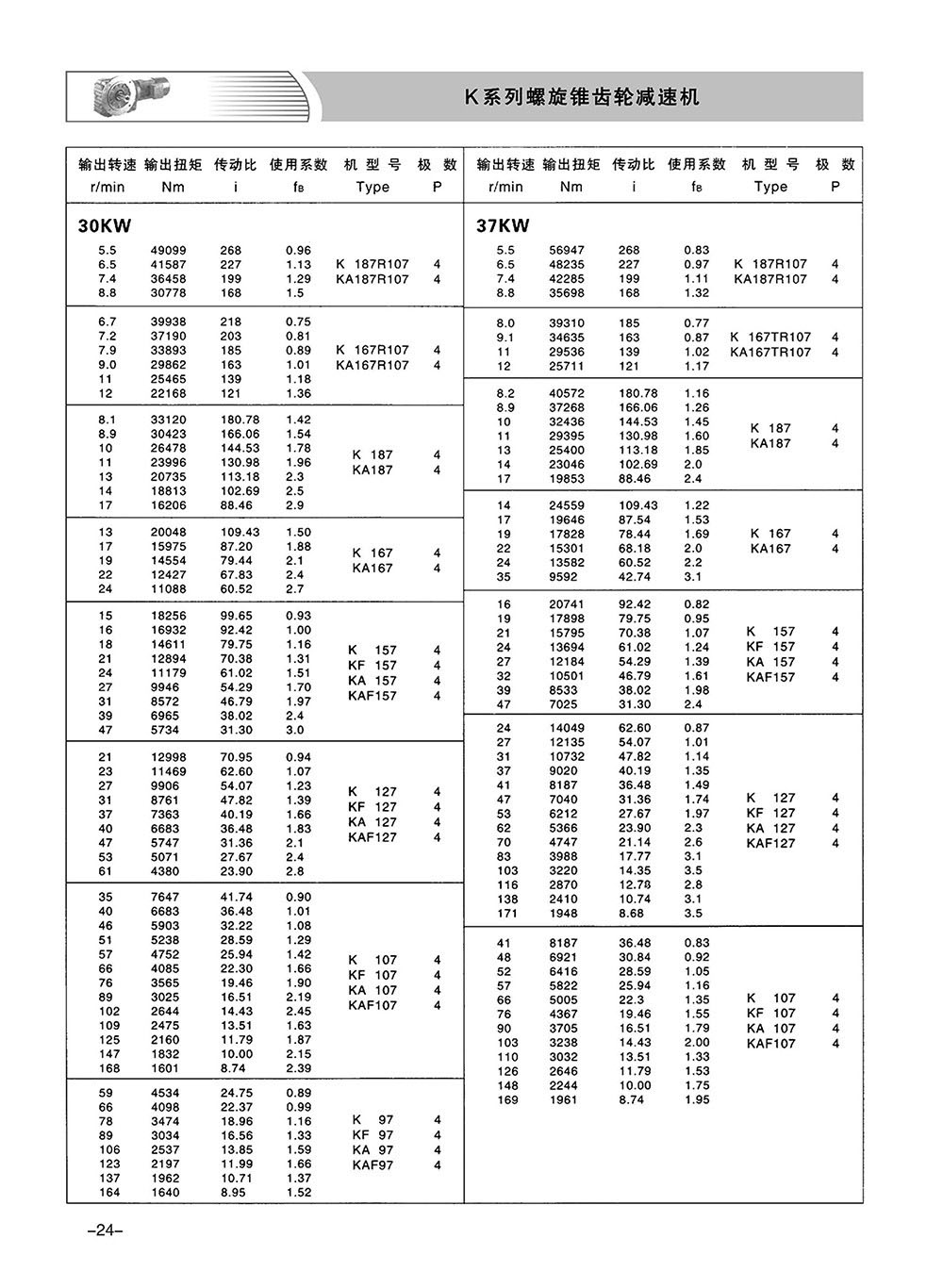

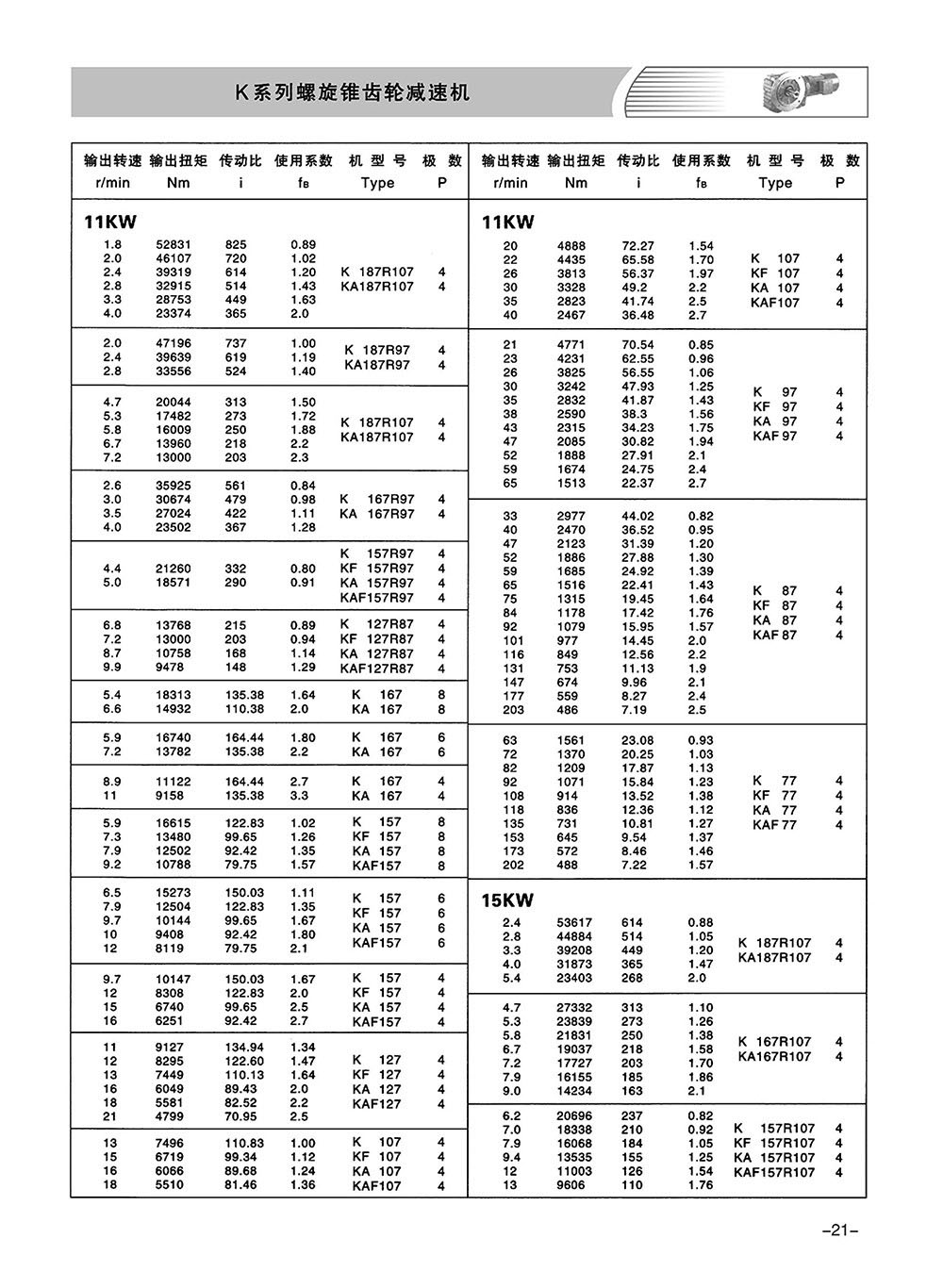

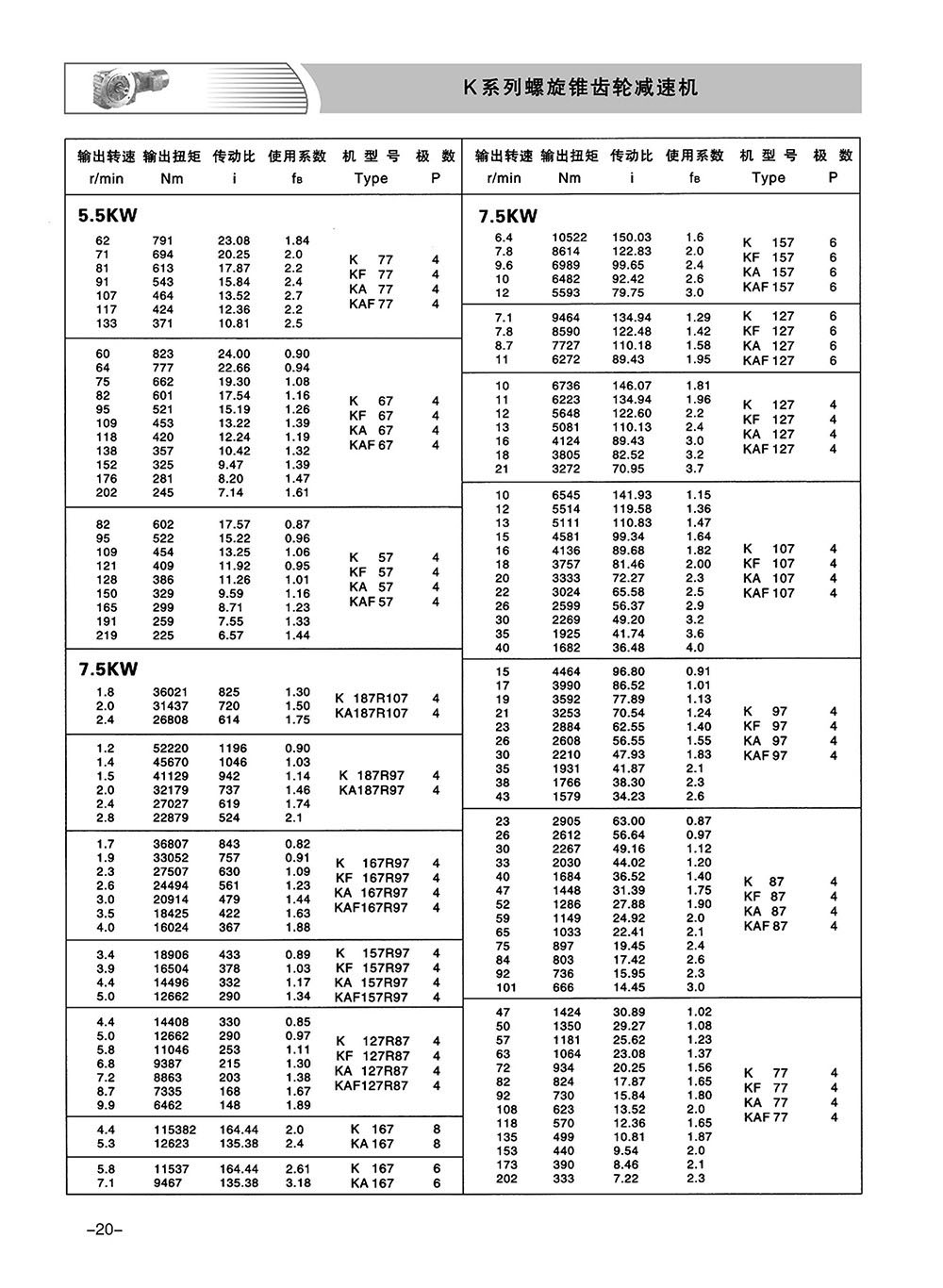

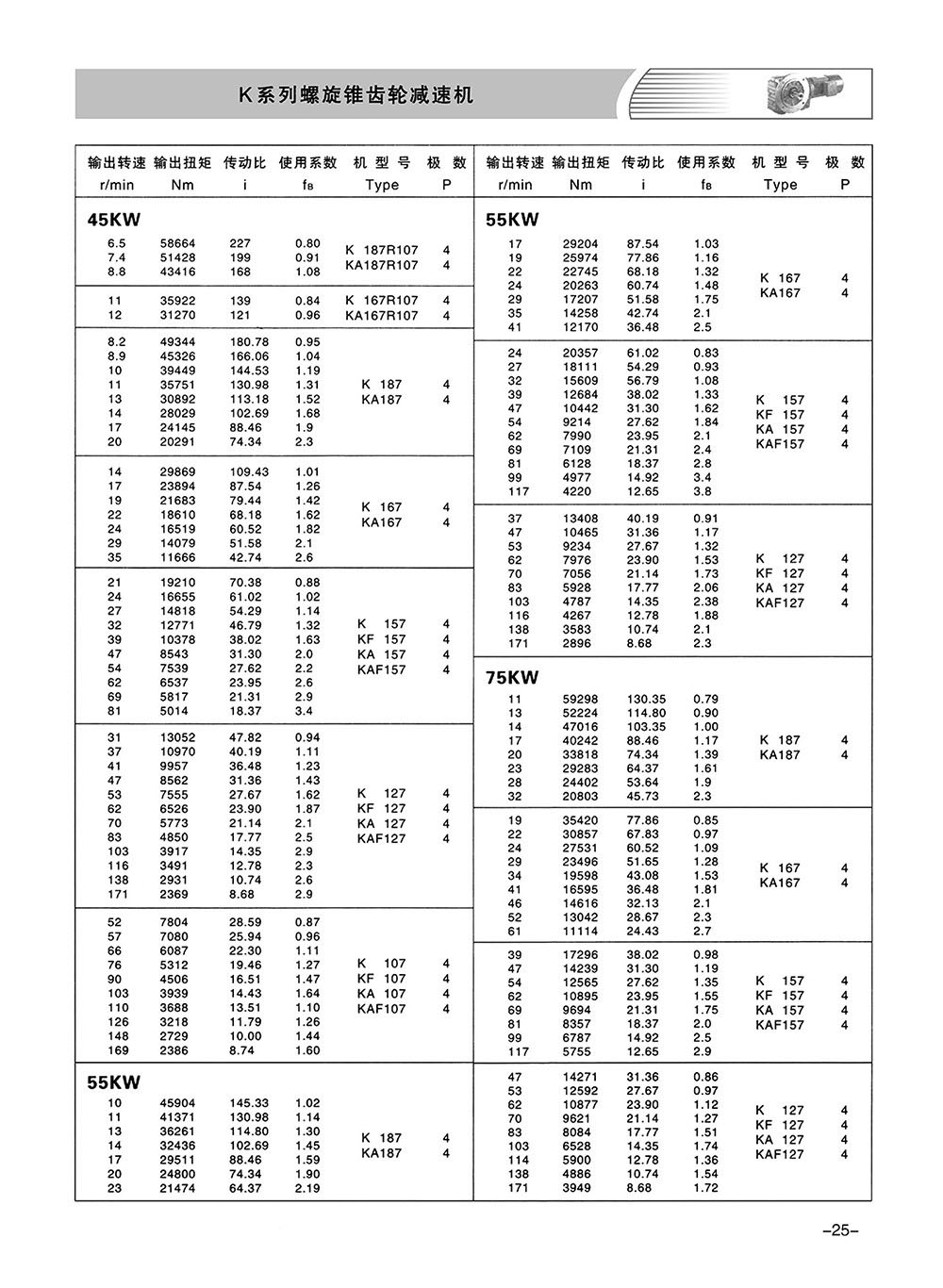

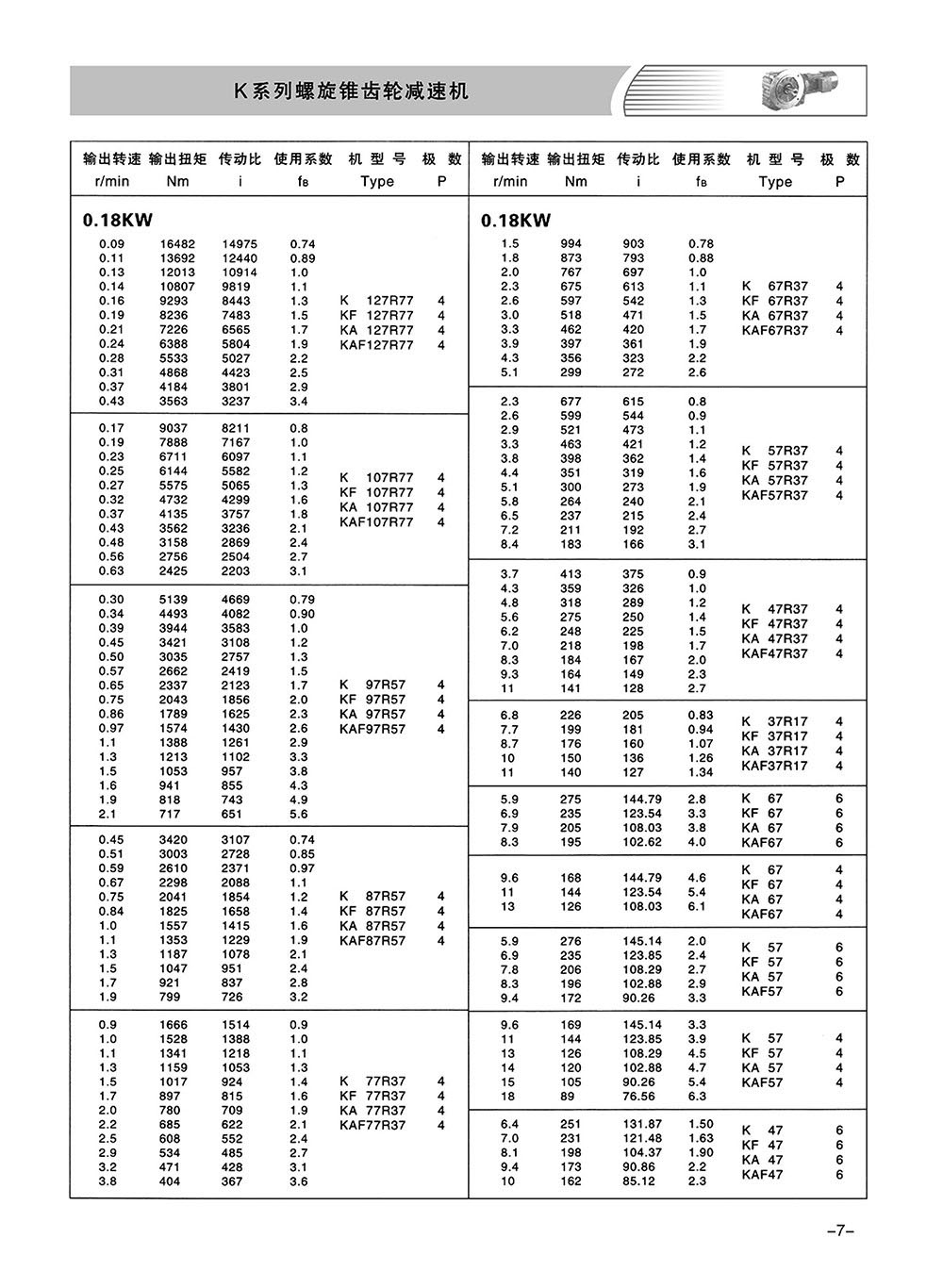

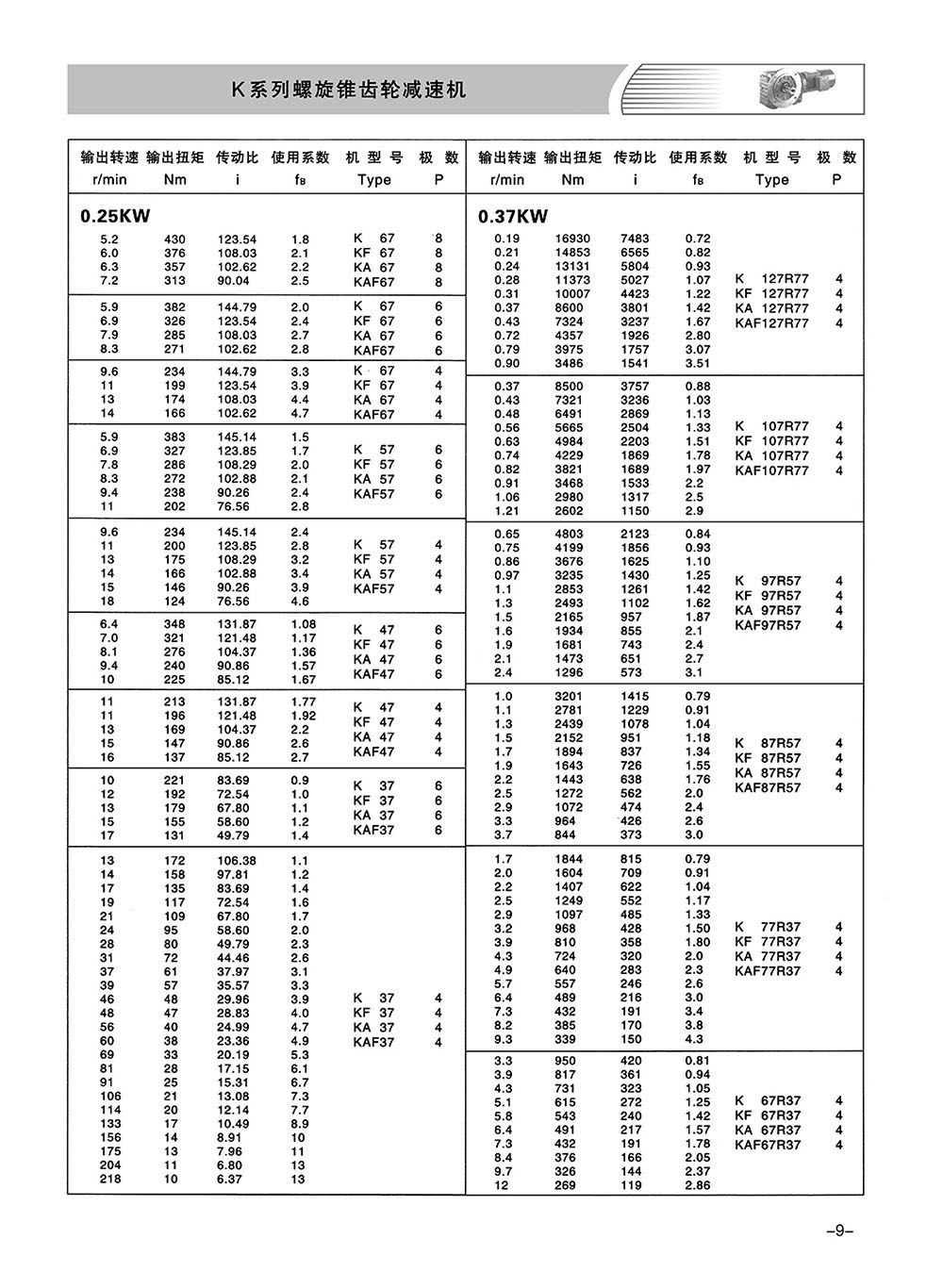

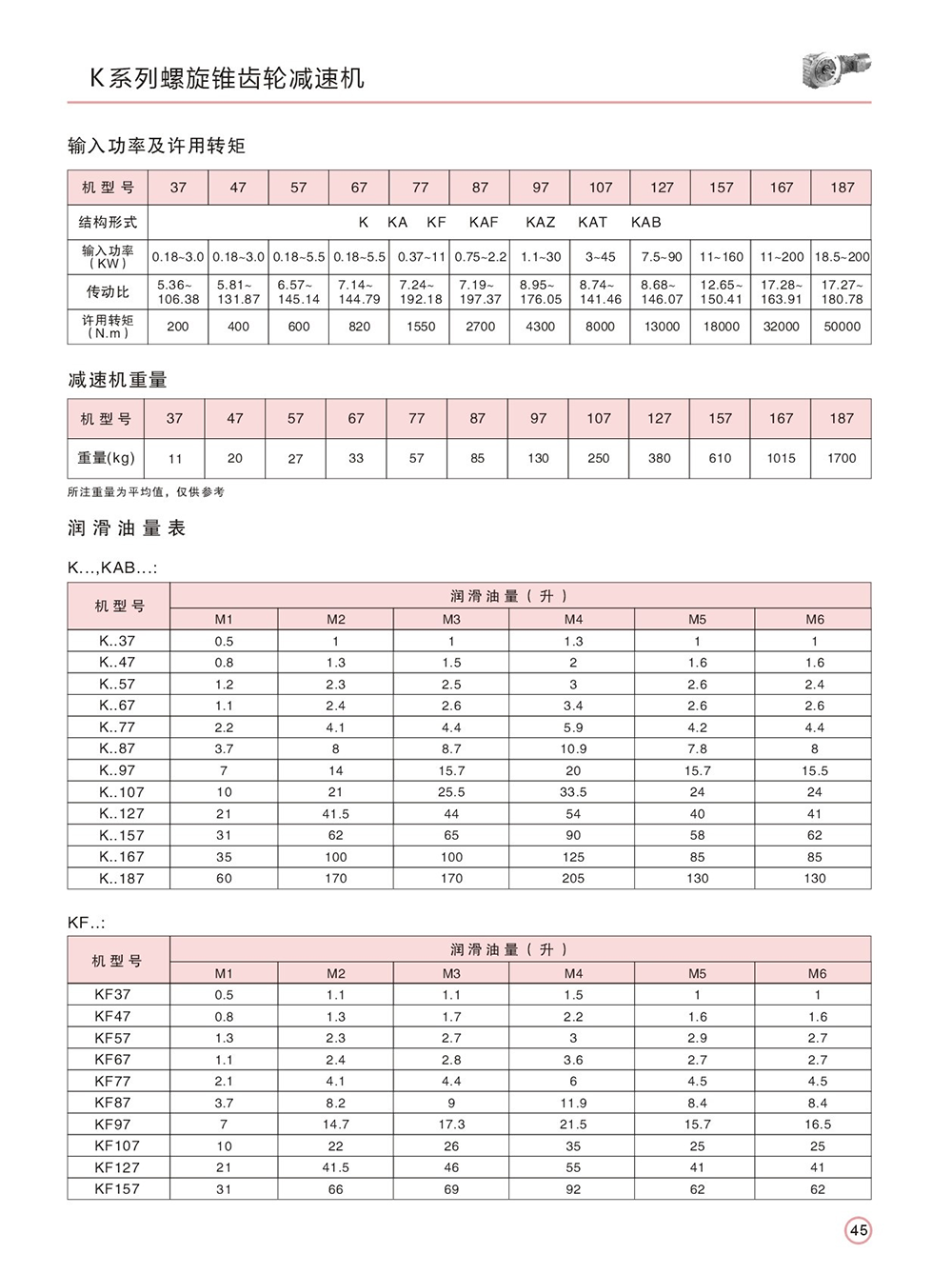

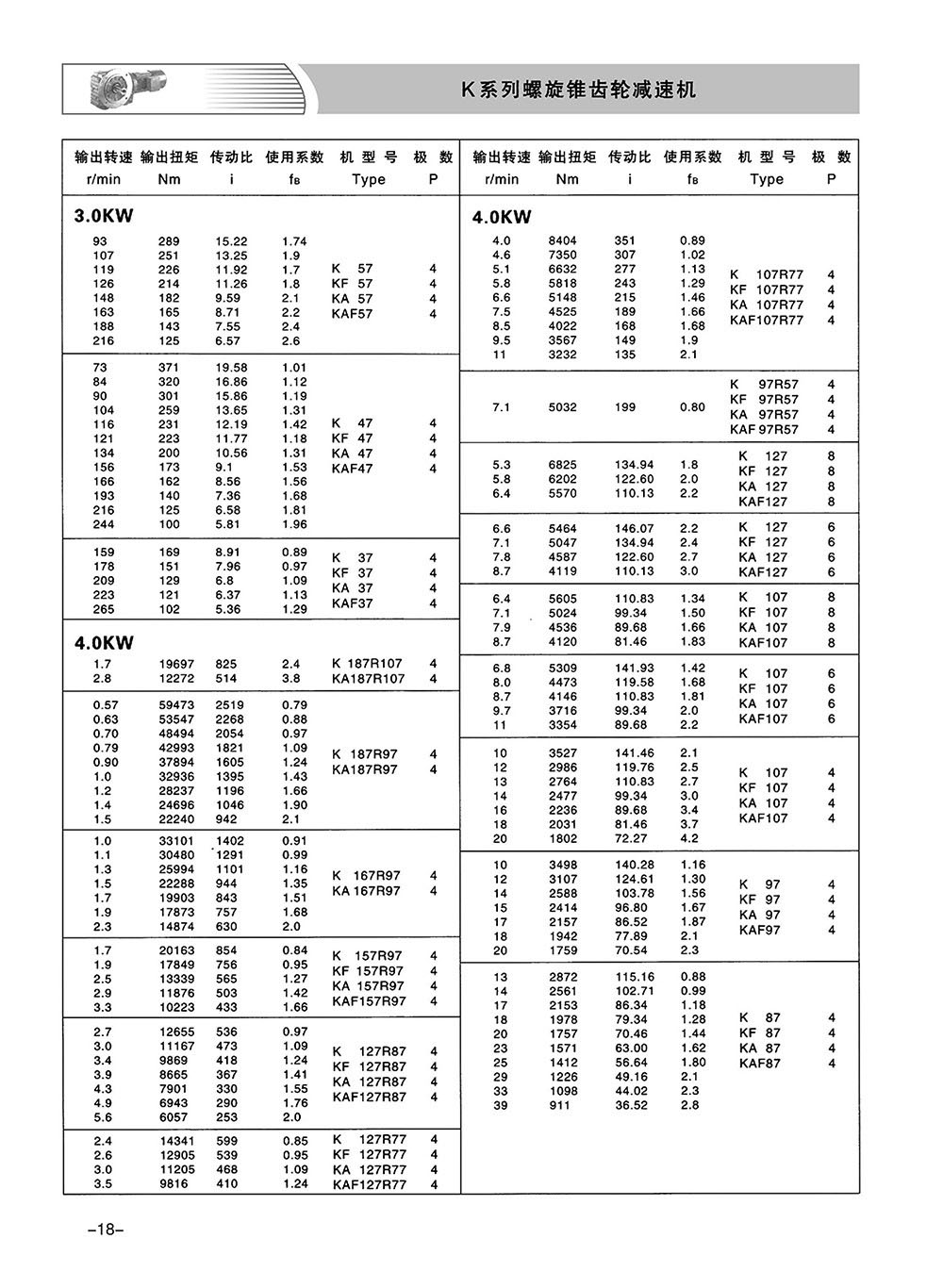

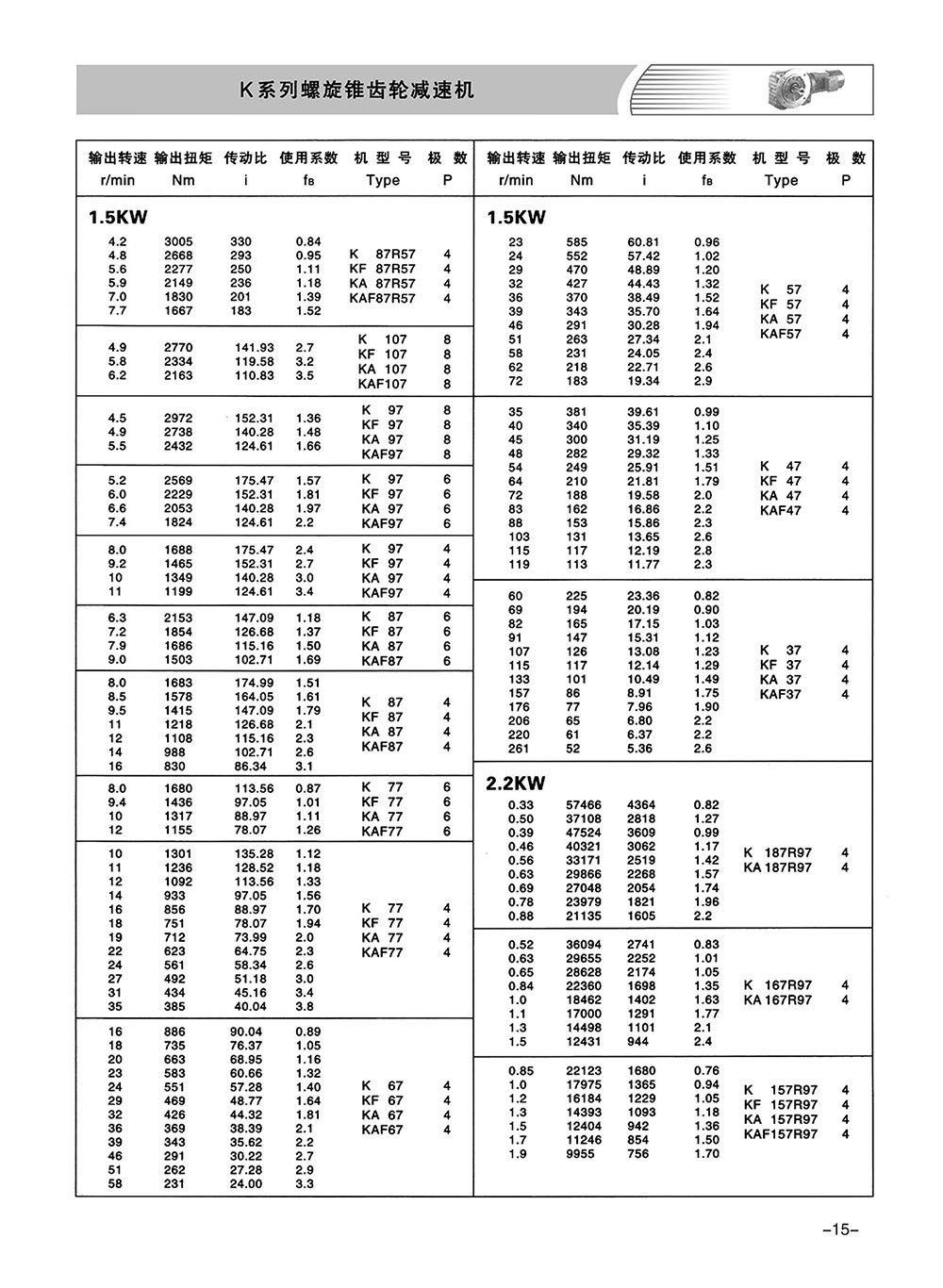

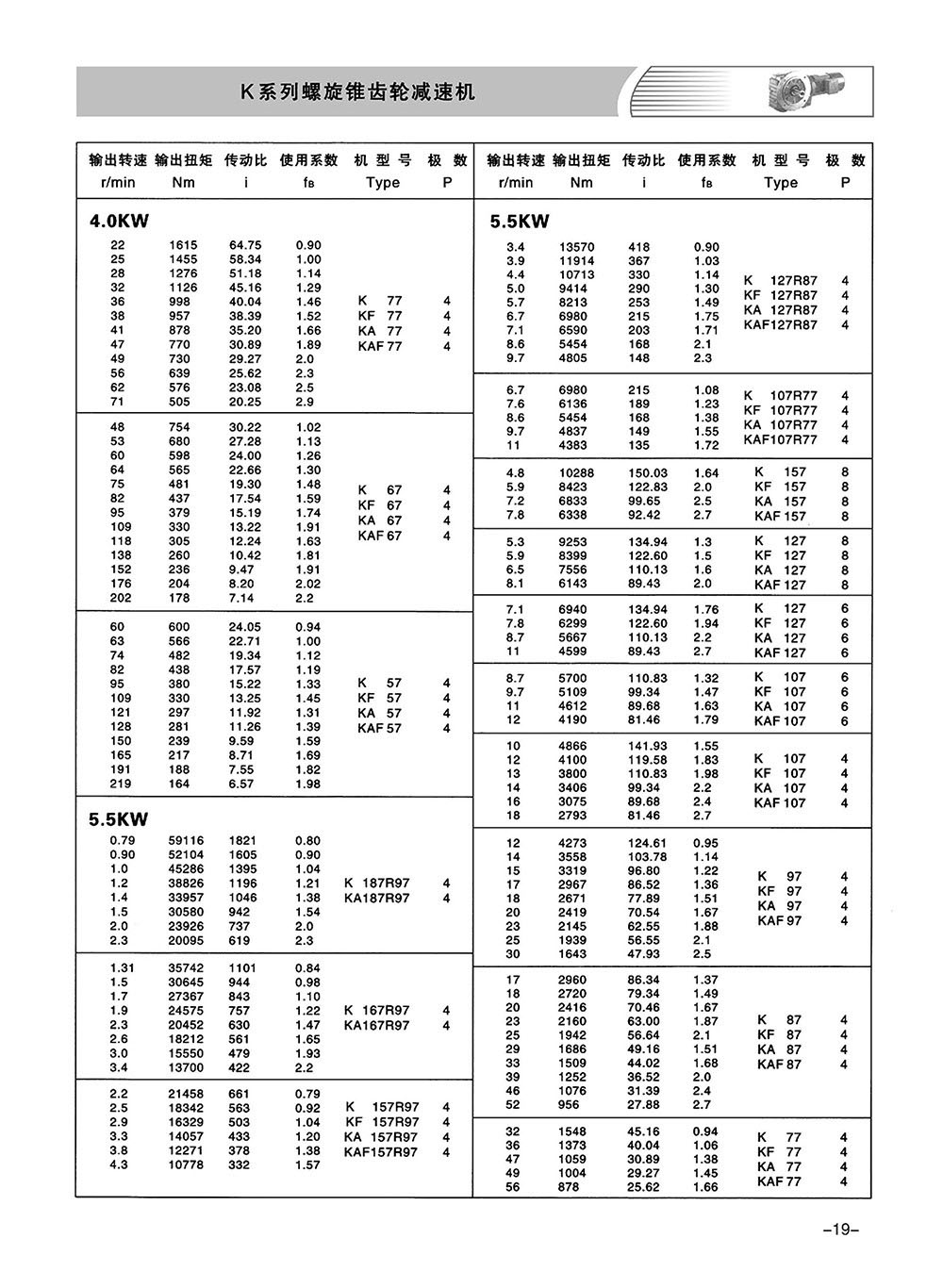

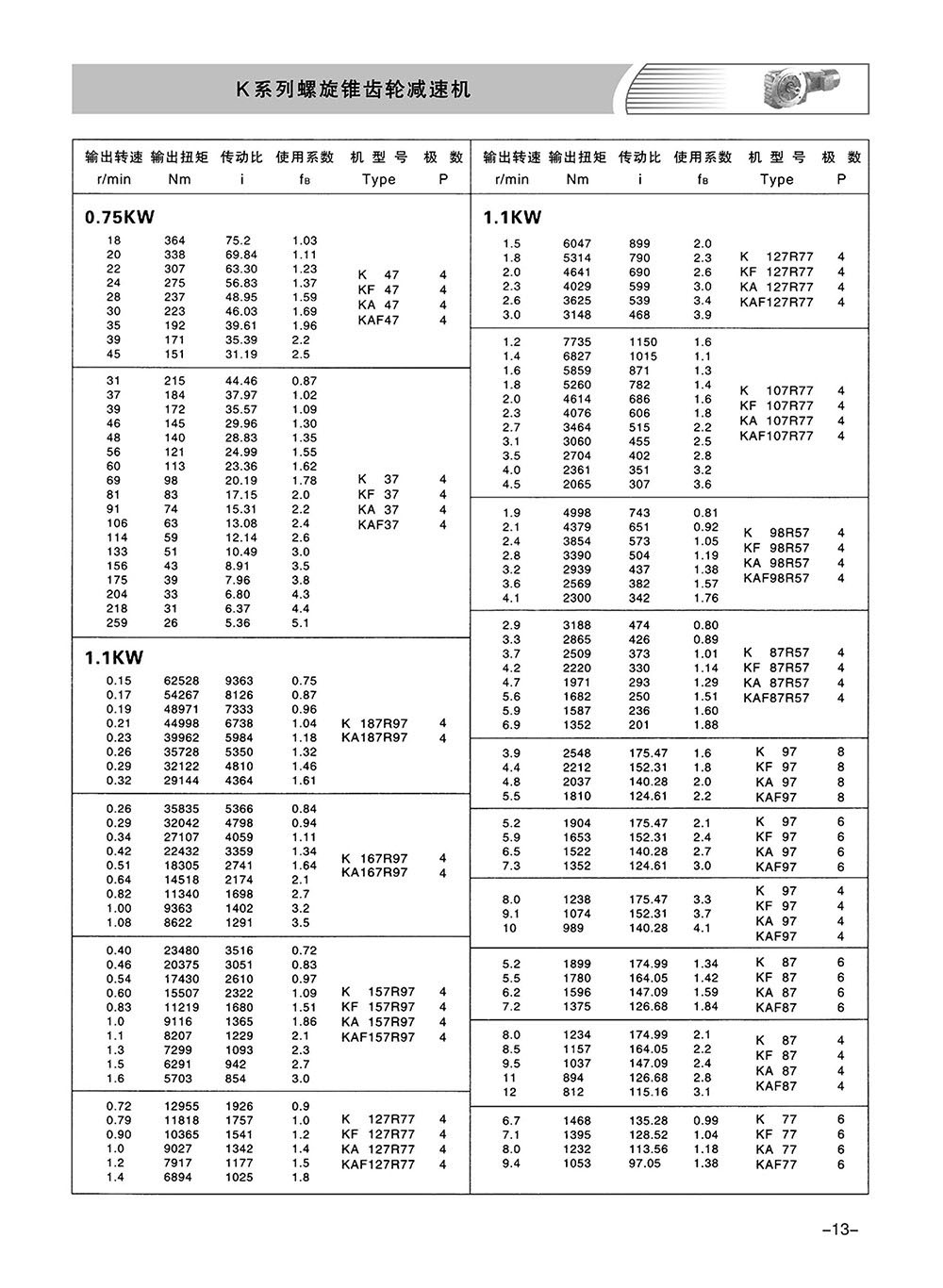

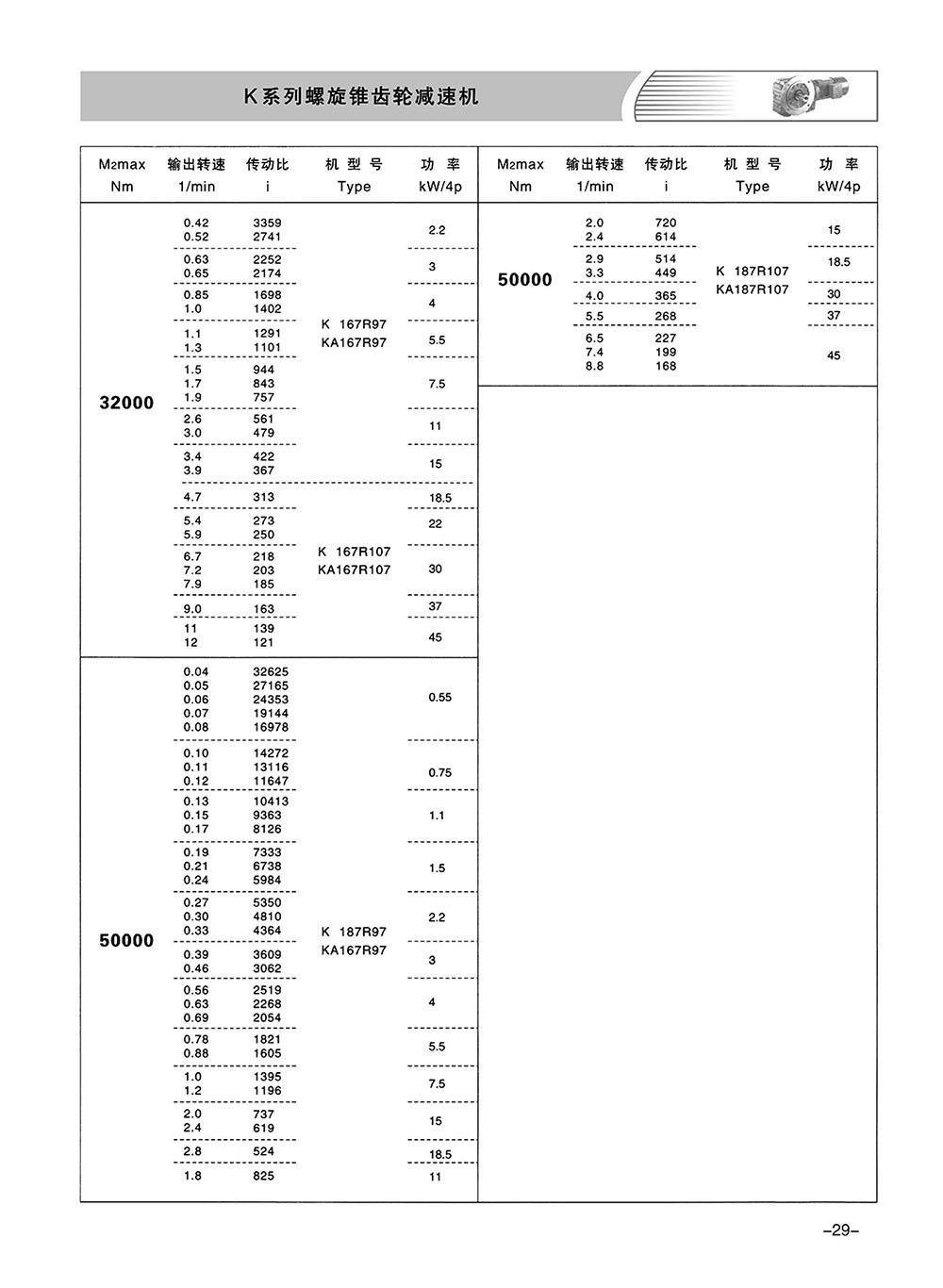

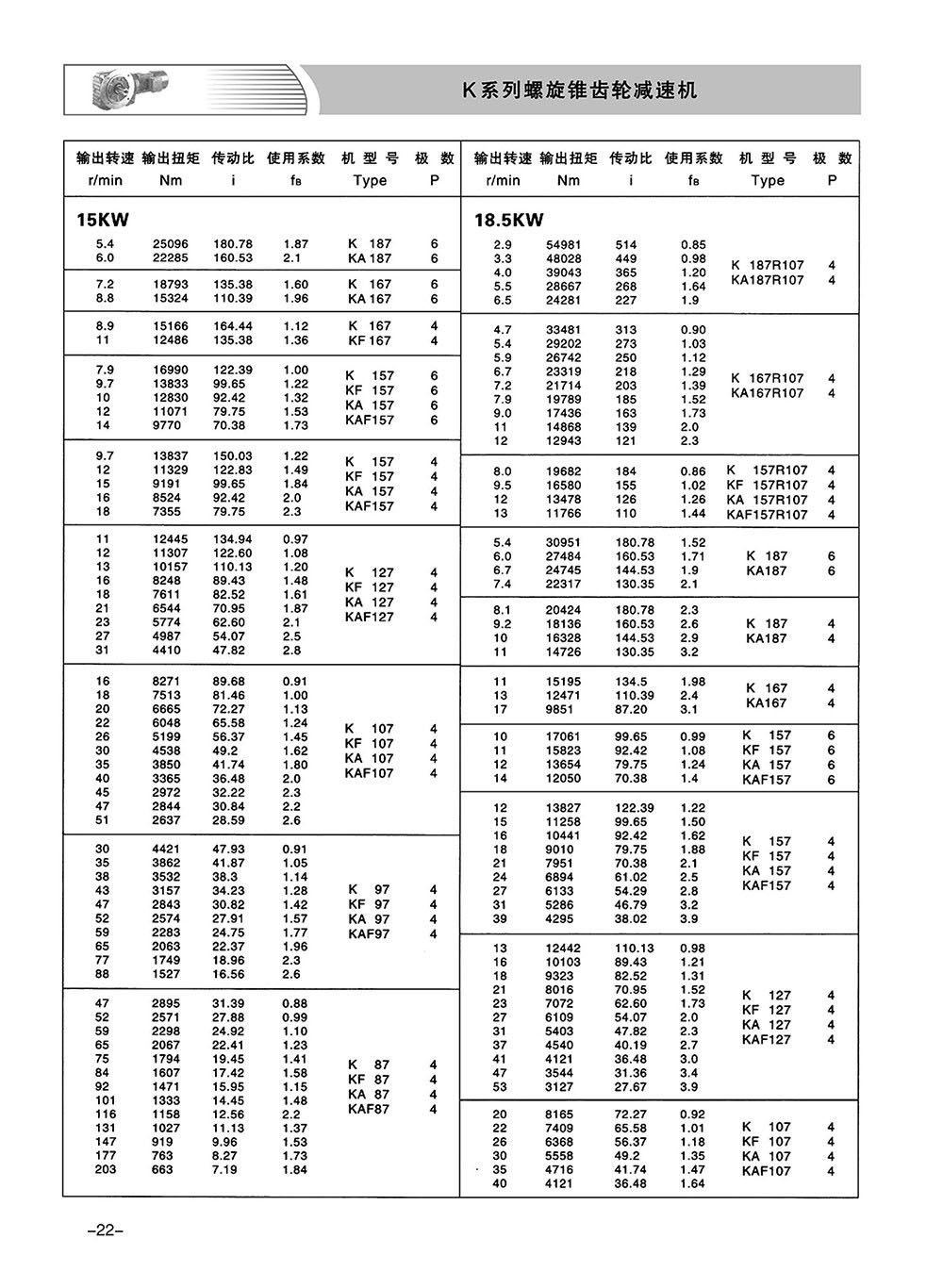

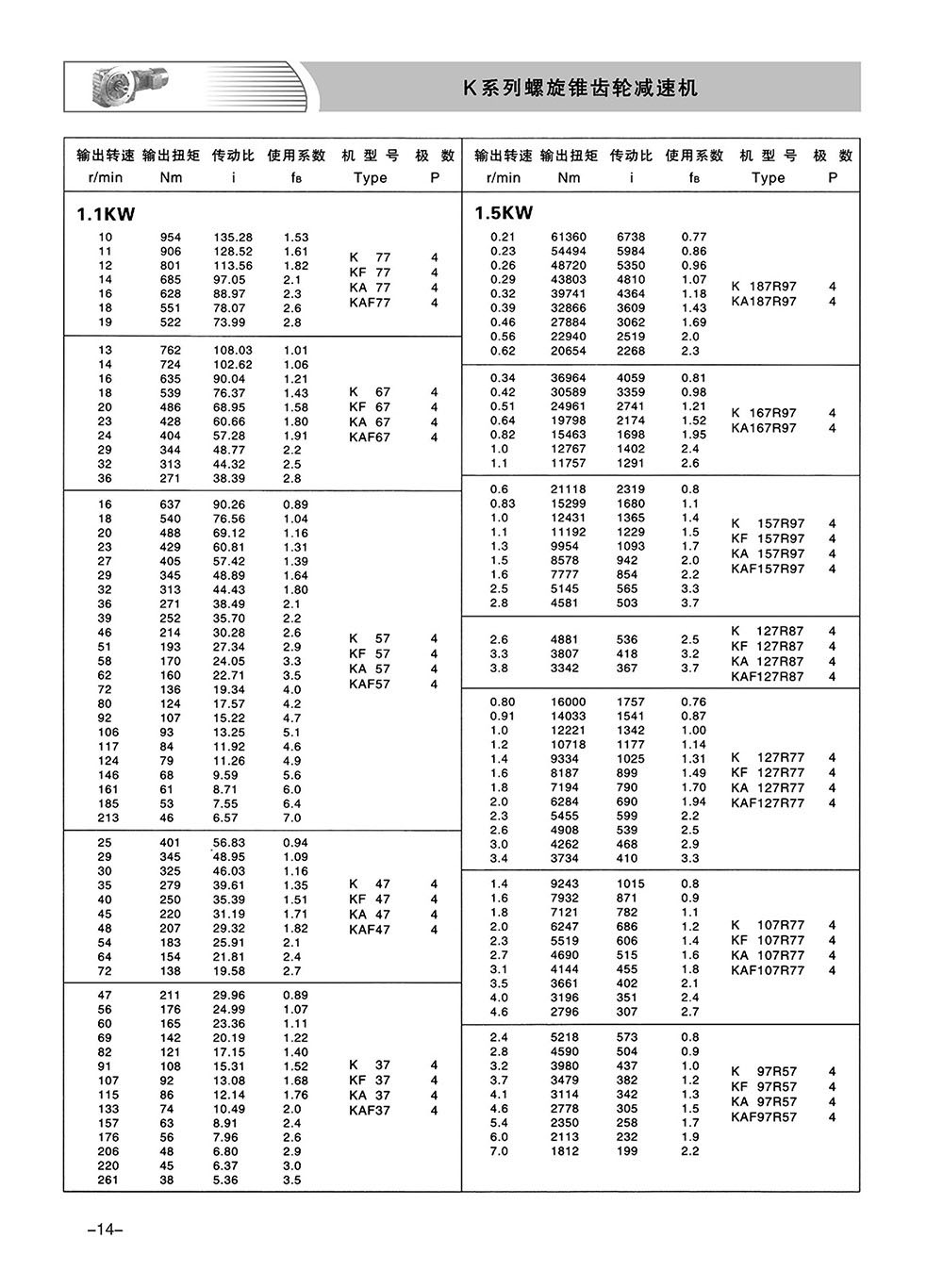

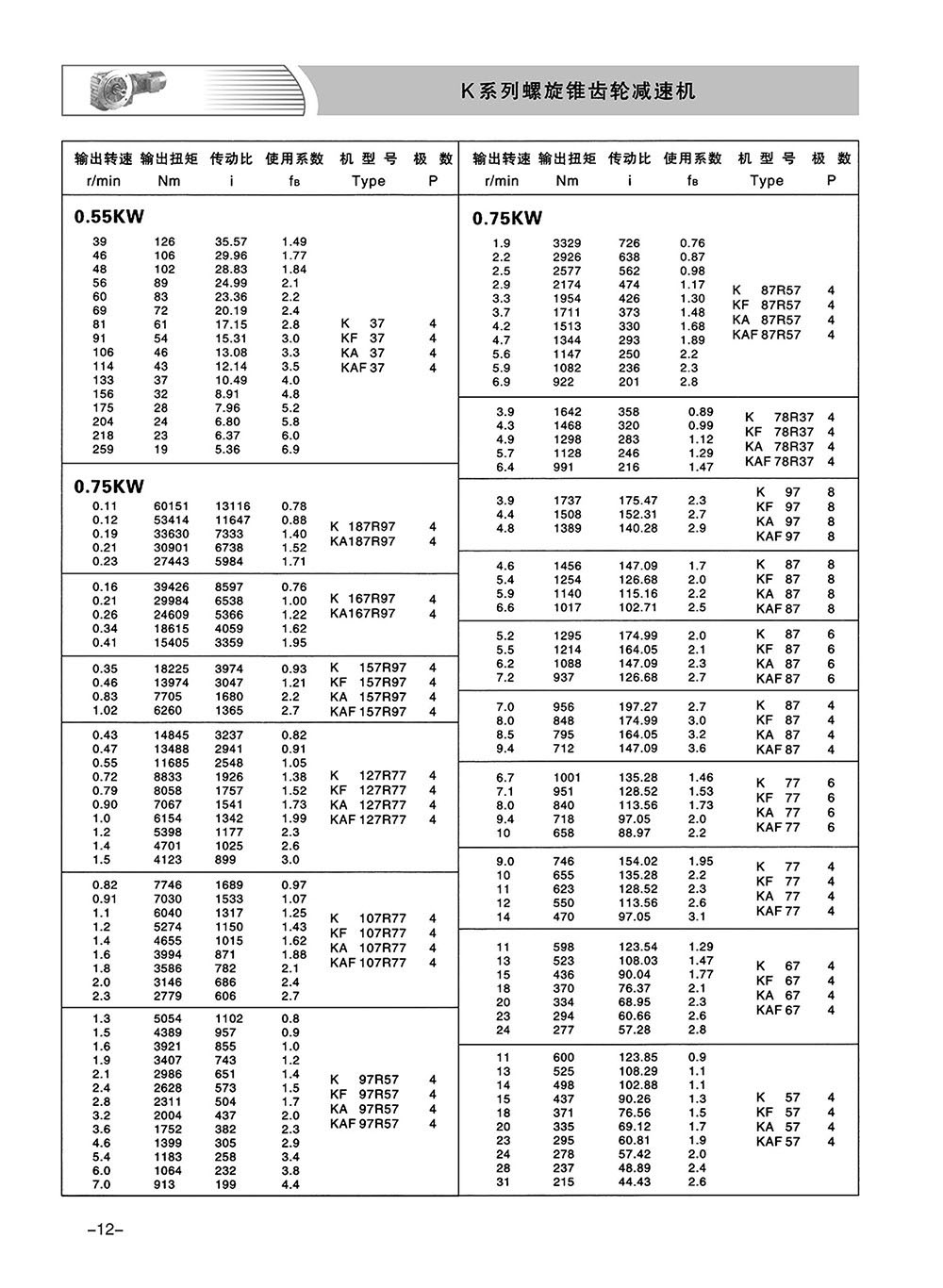

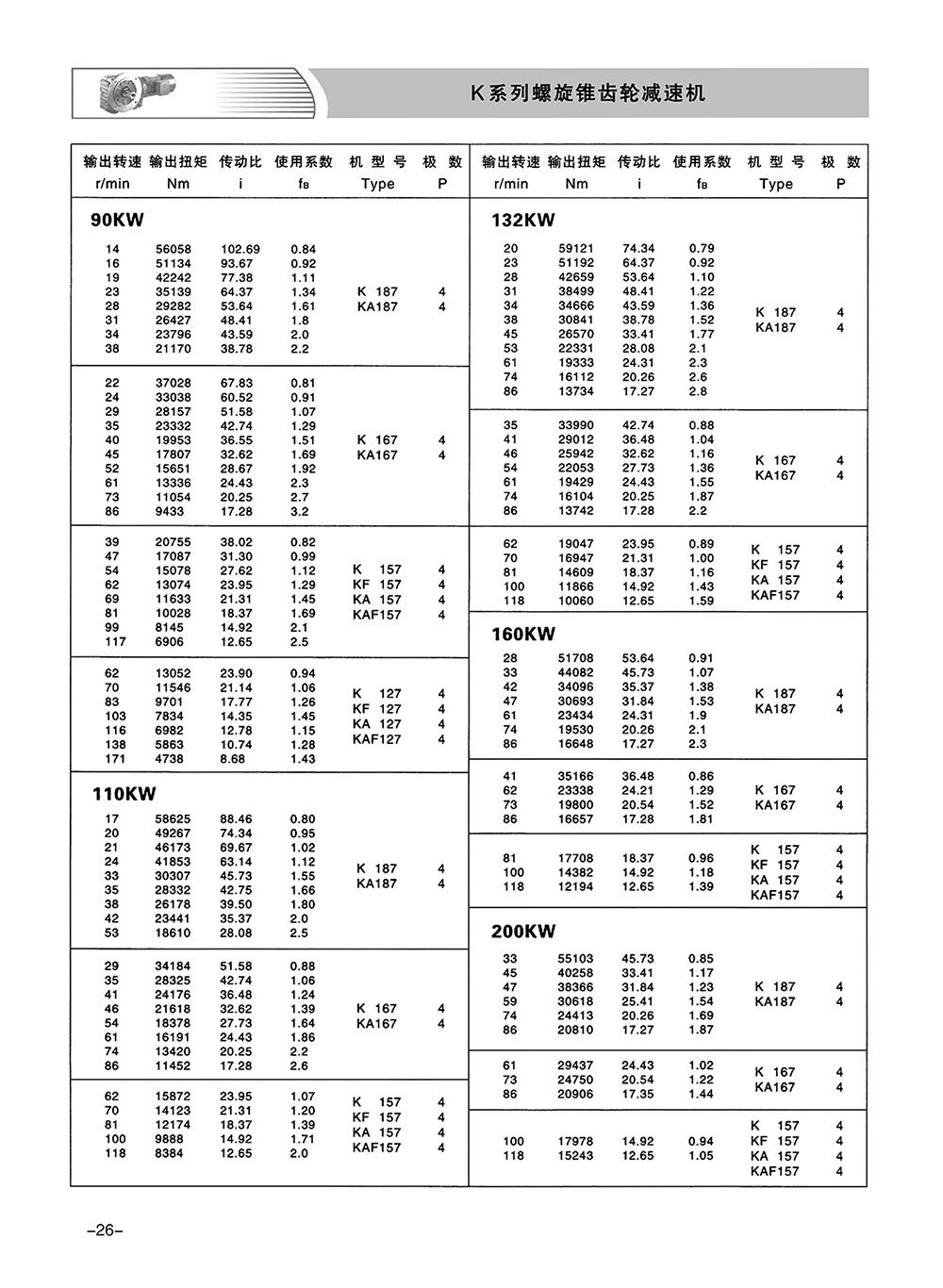

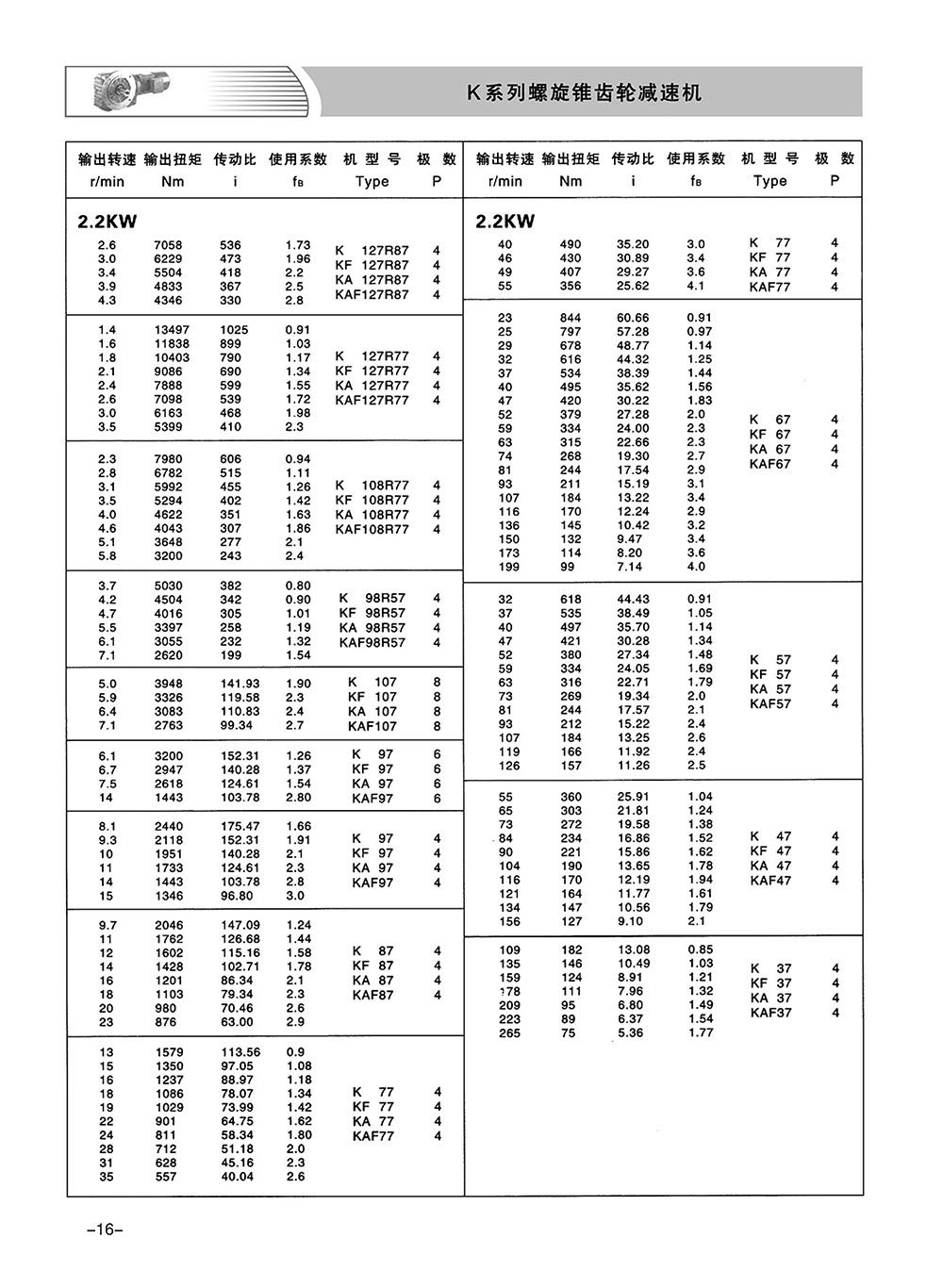

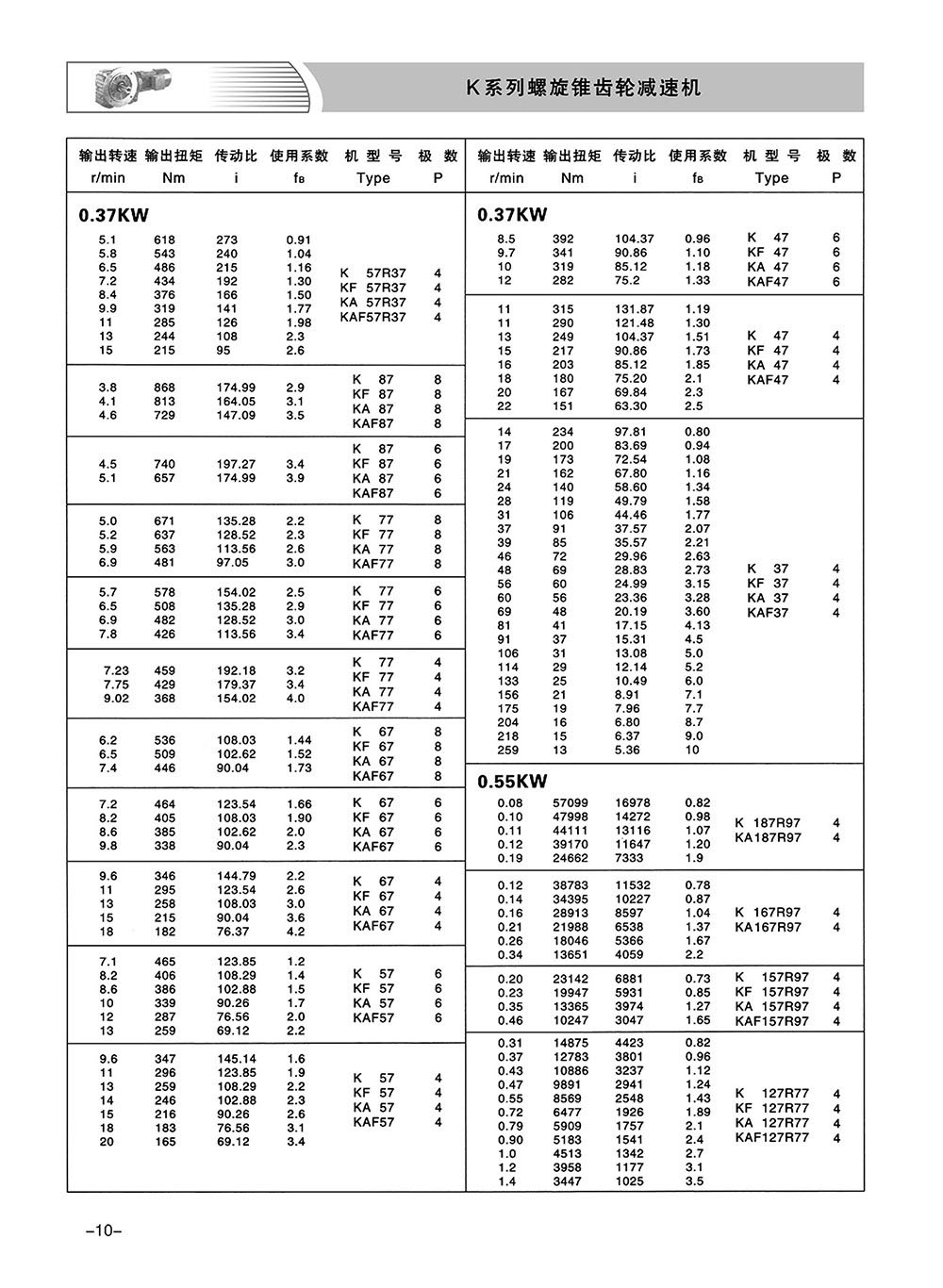

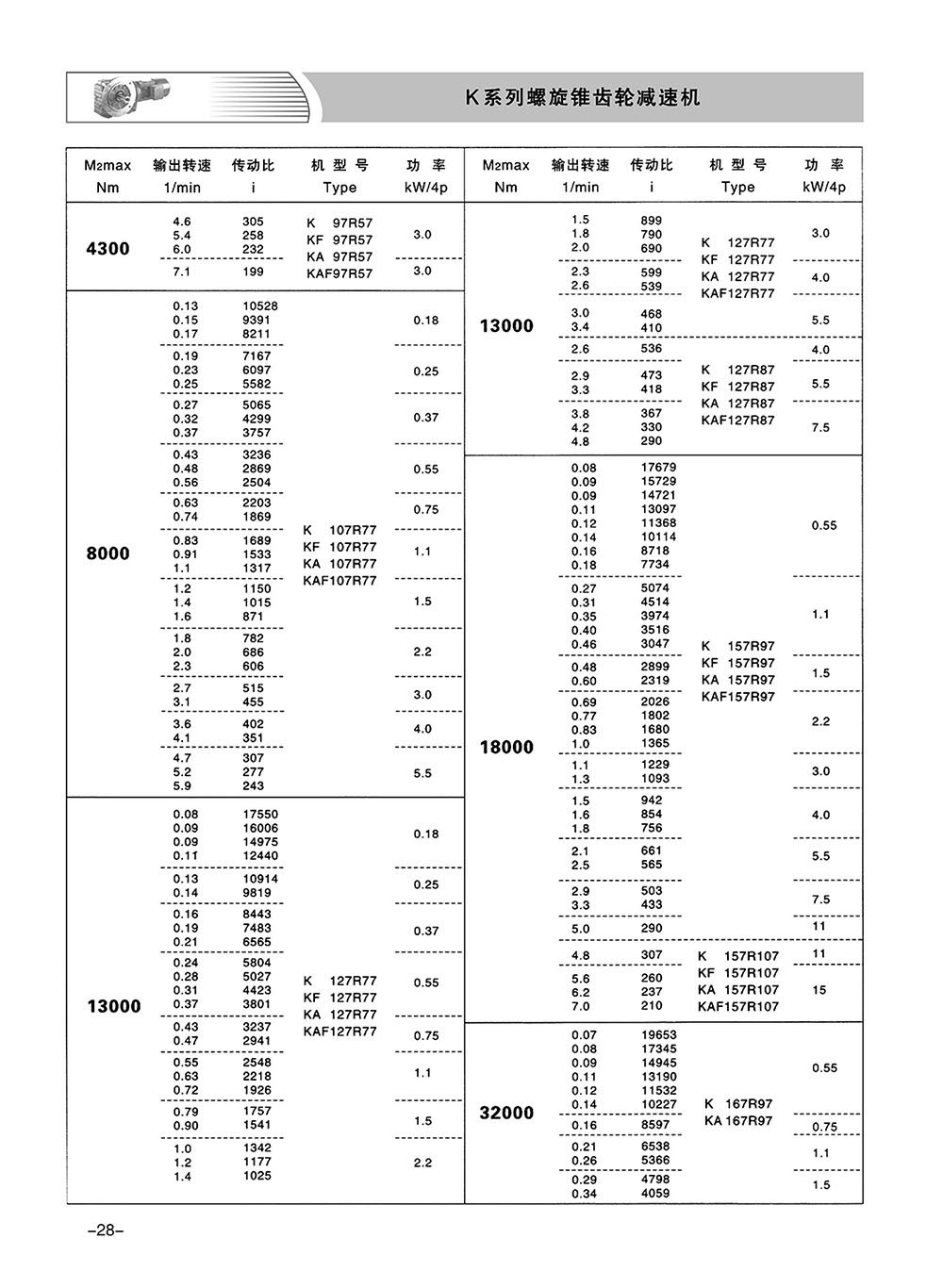

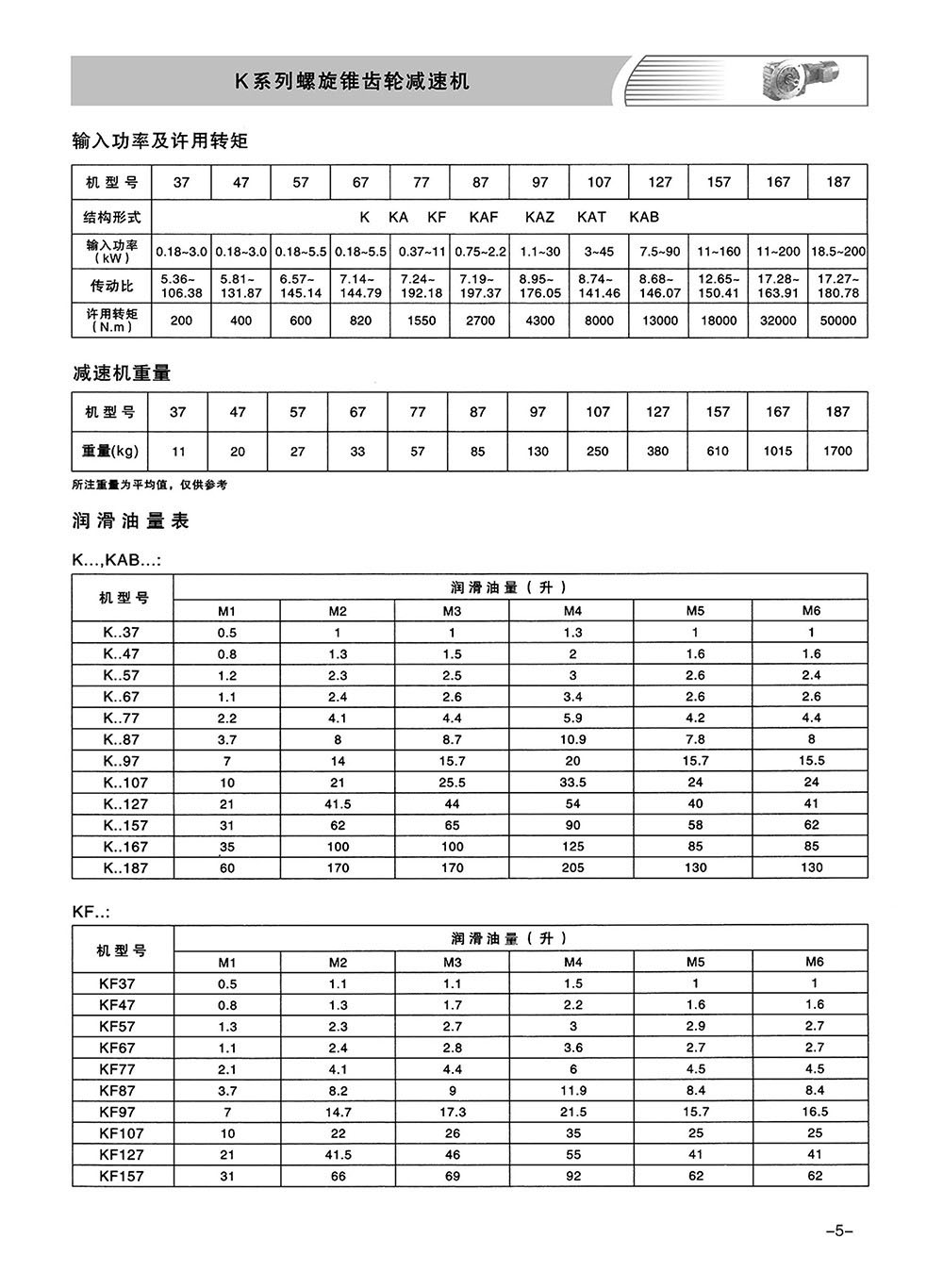

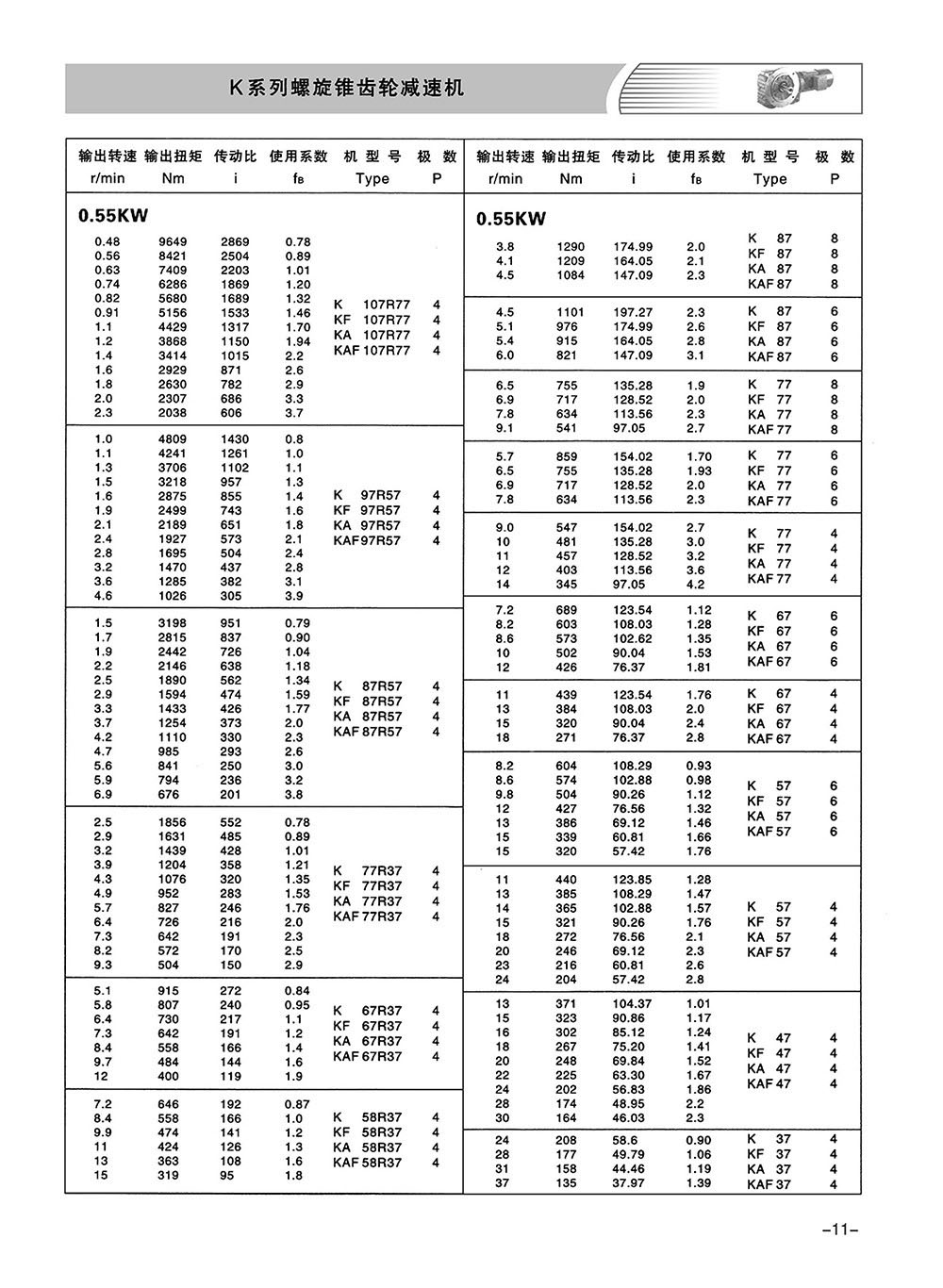

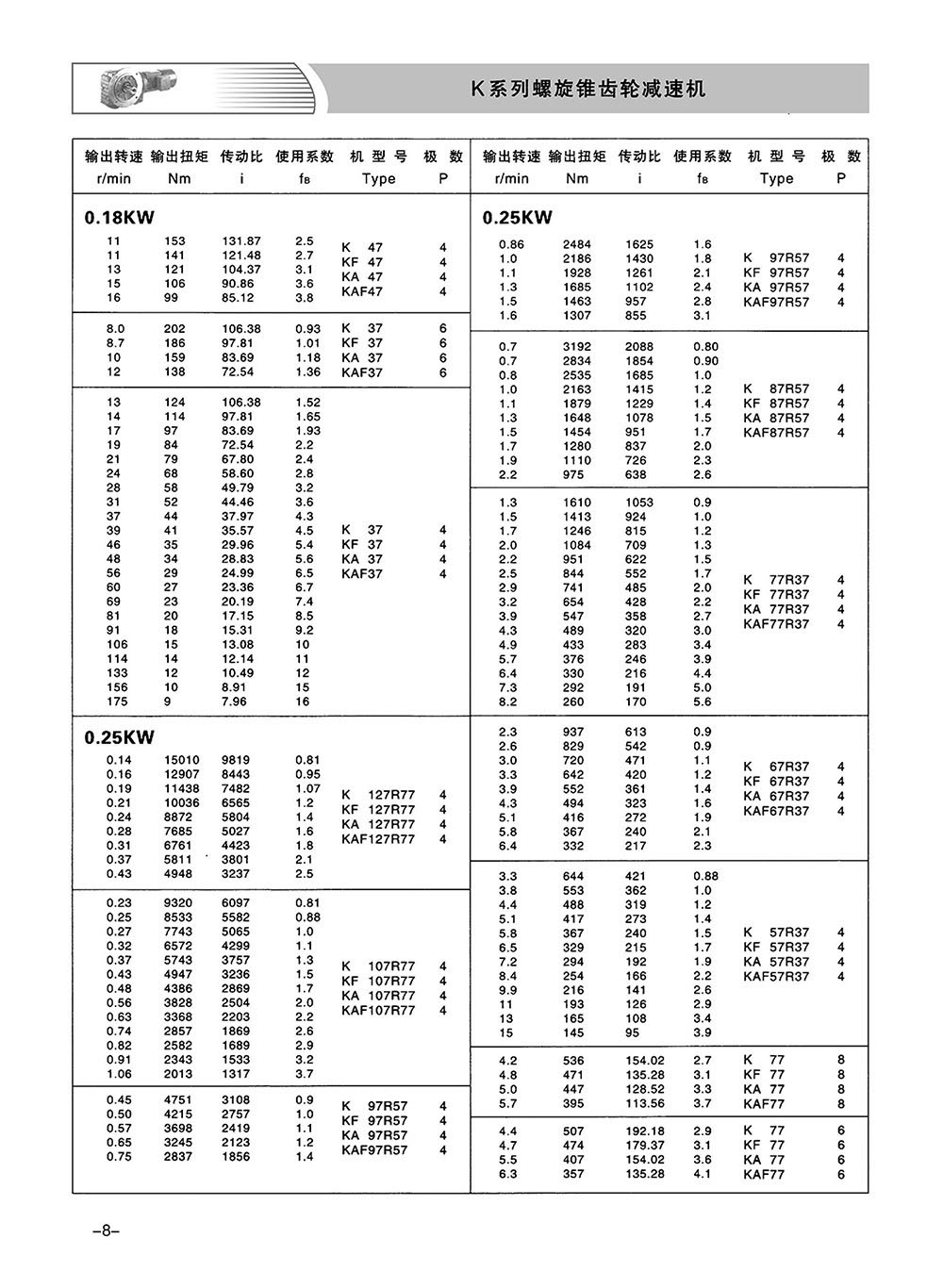

Technical Parameters:
Speed Ratio Range: Basic type 5.36–197.37; K/R combination up to 32,625
Torque Range: 200–50,000 Nm
Power Range: 0.18–200 kW

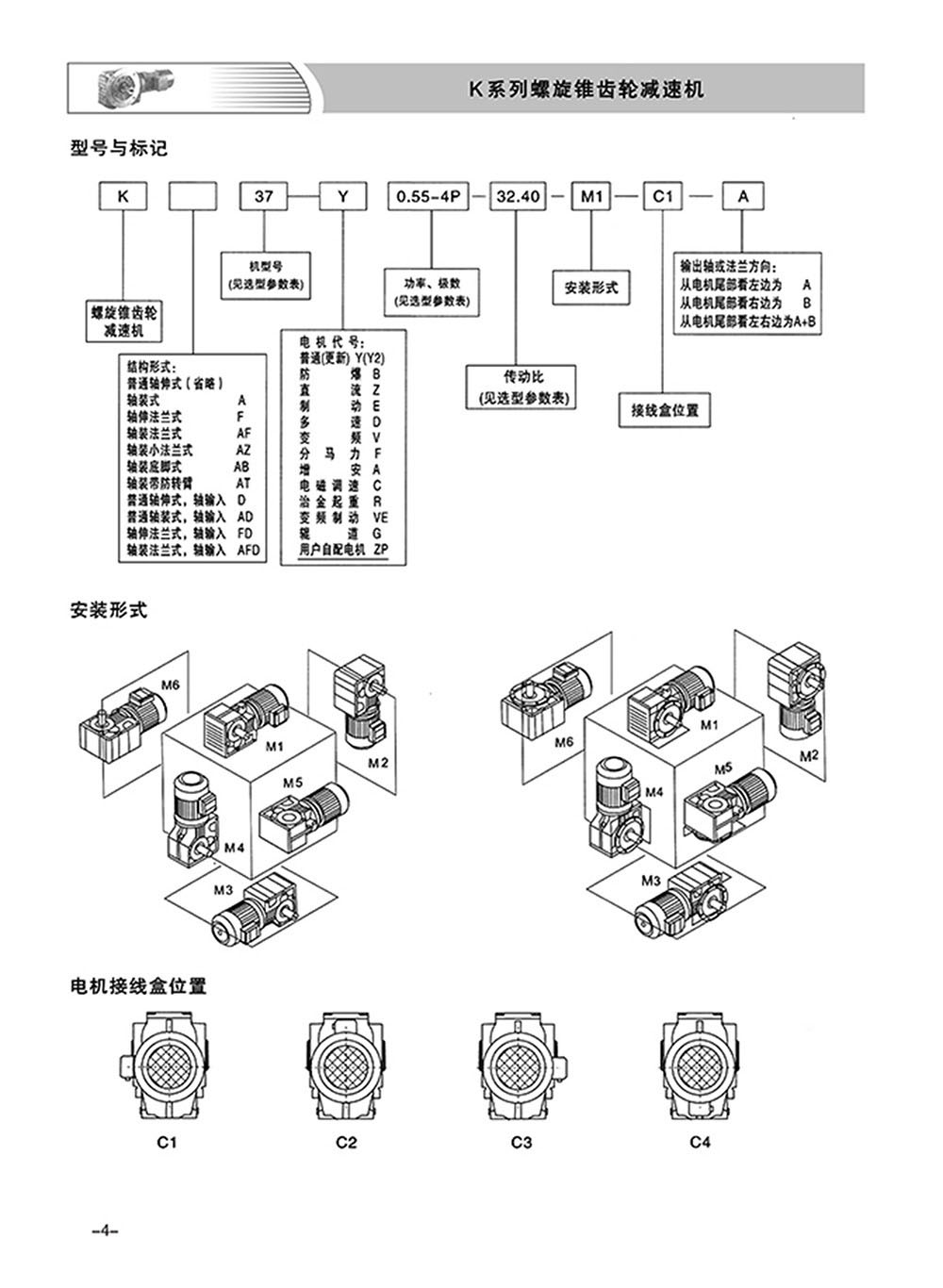

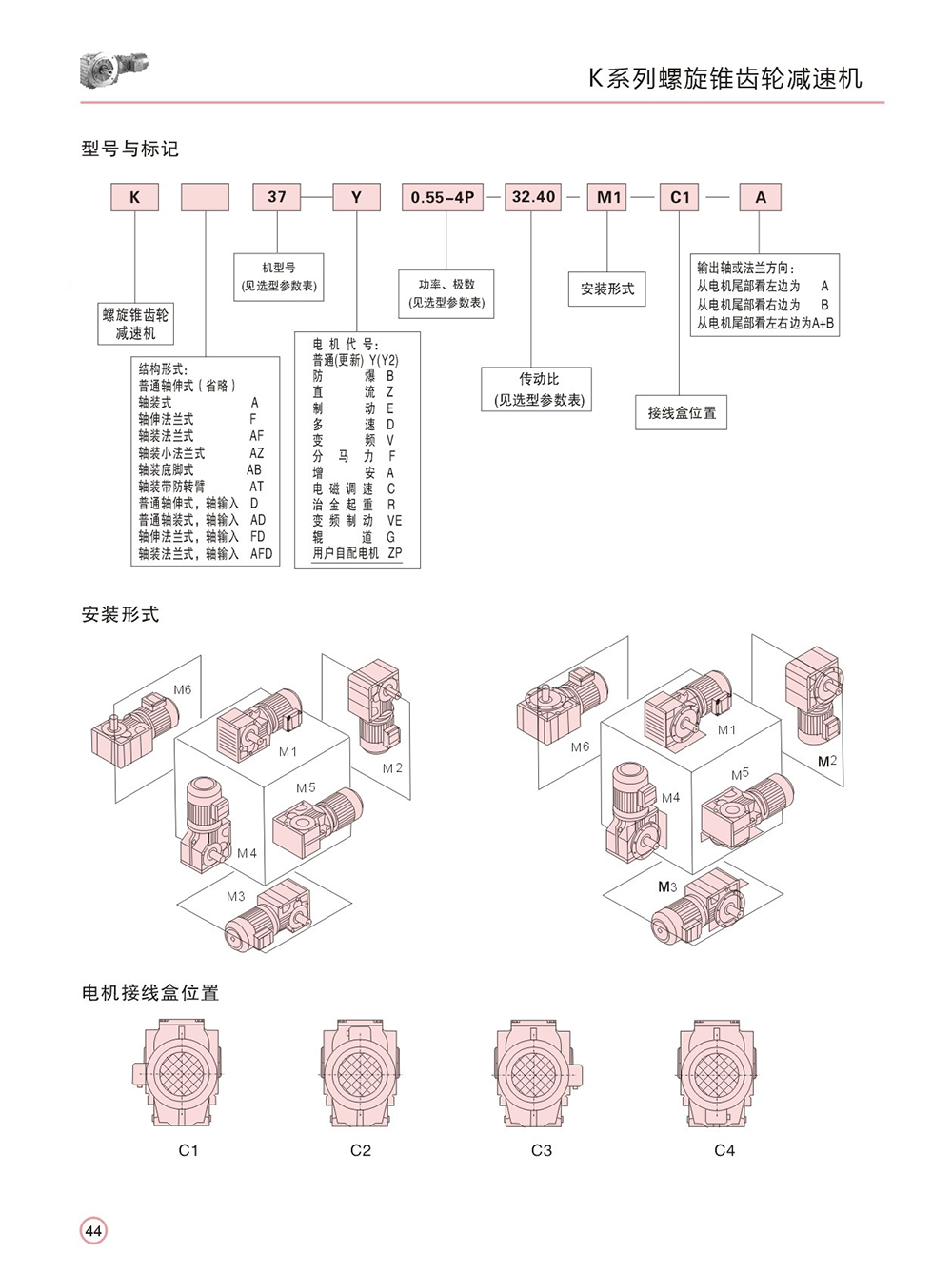

Mounting Options: Foot-mounted, flange-mounted, or shaft-mounted, with input shaft or direct motor connection.

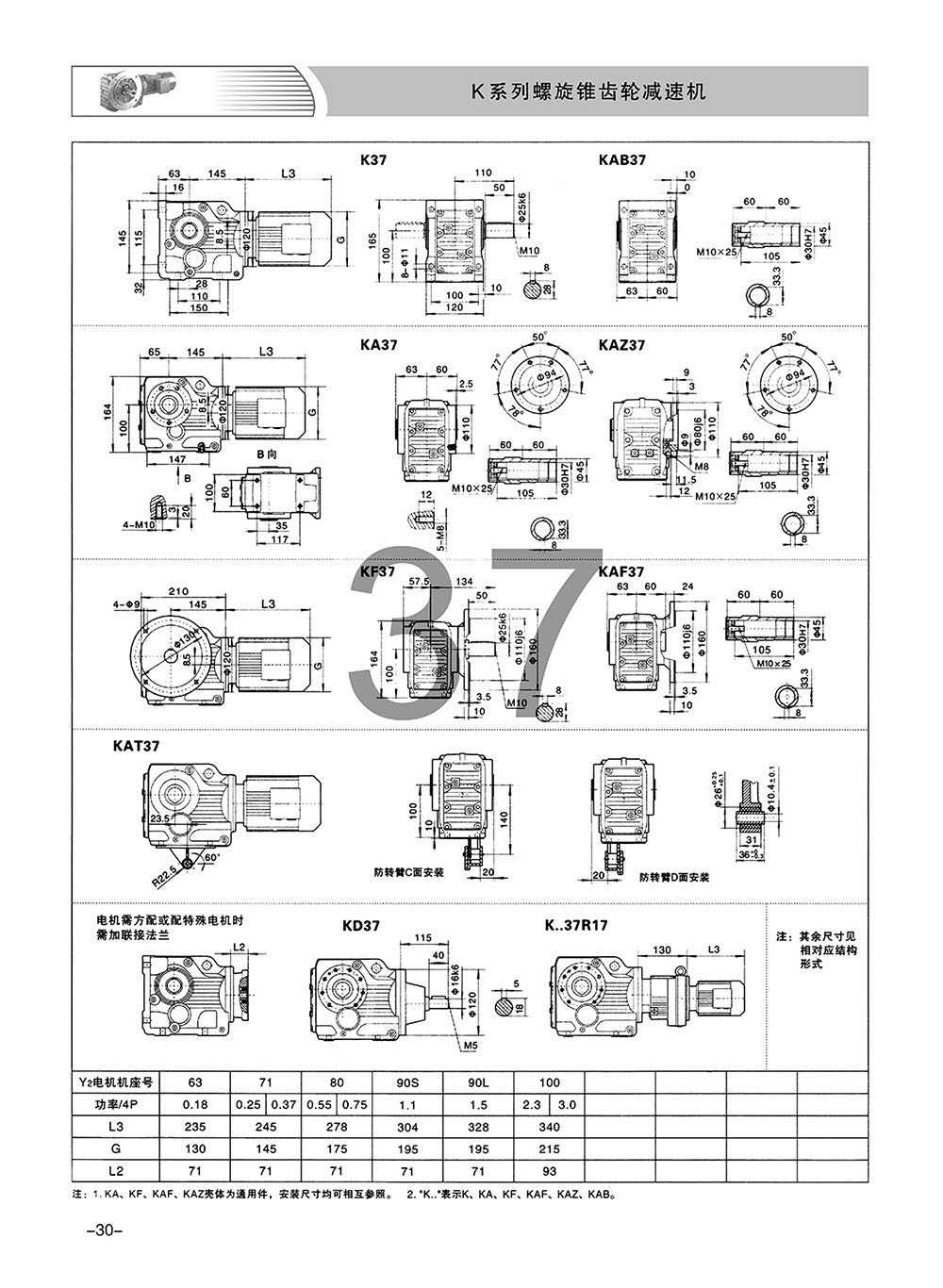

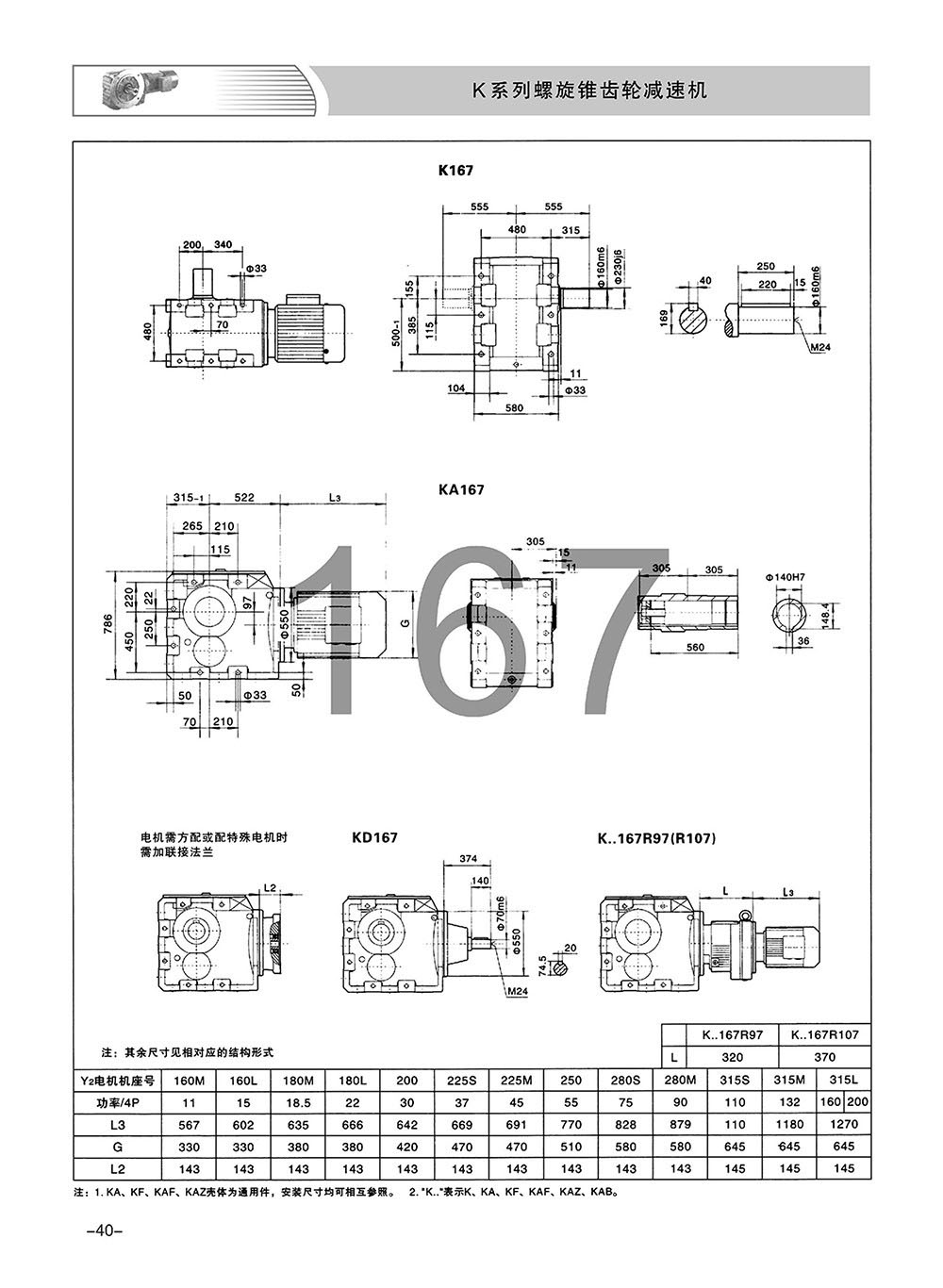

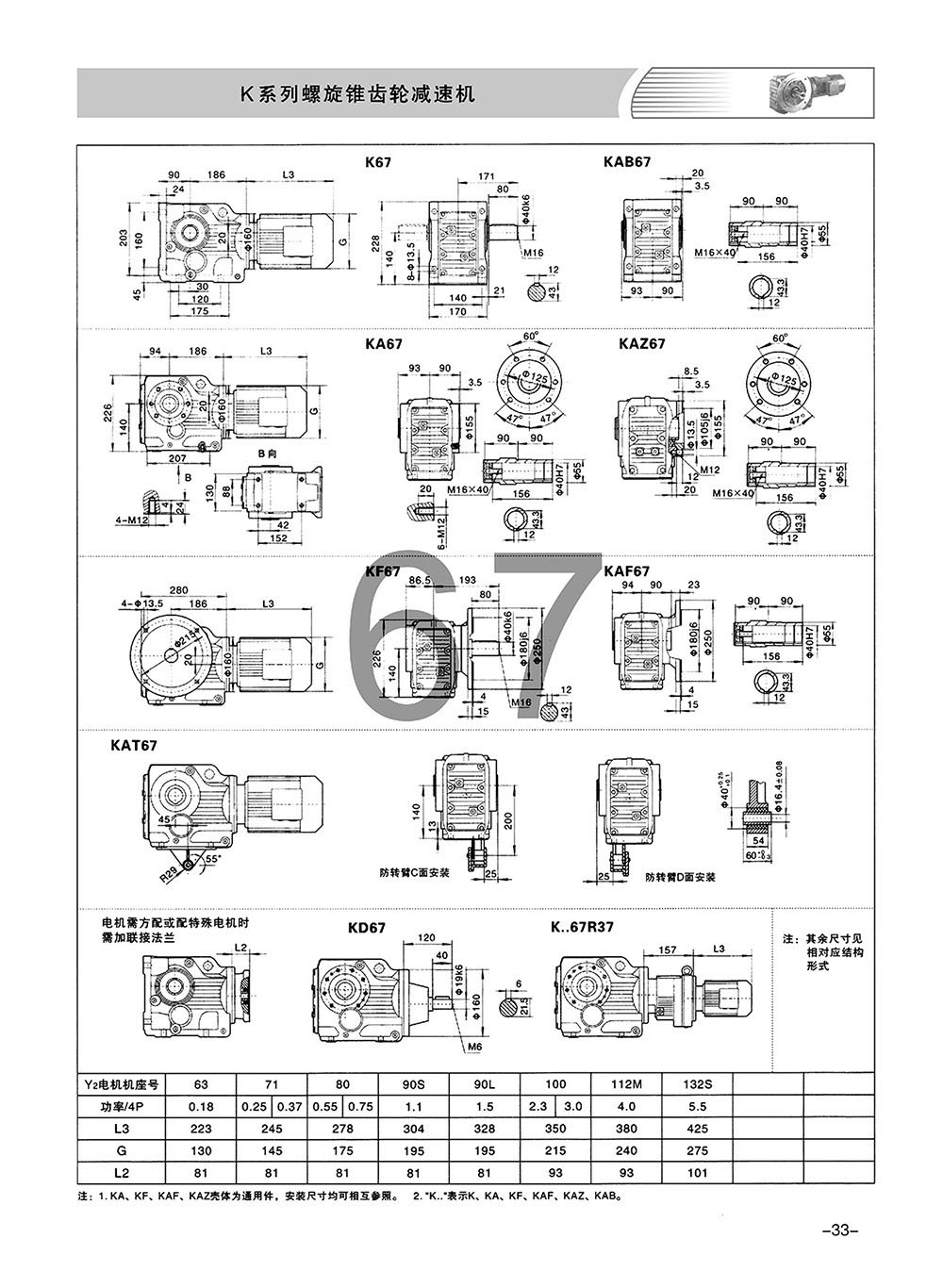

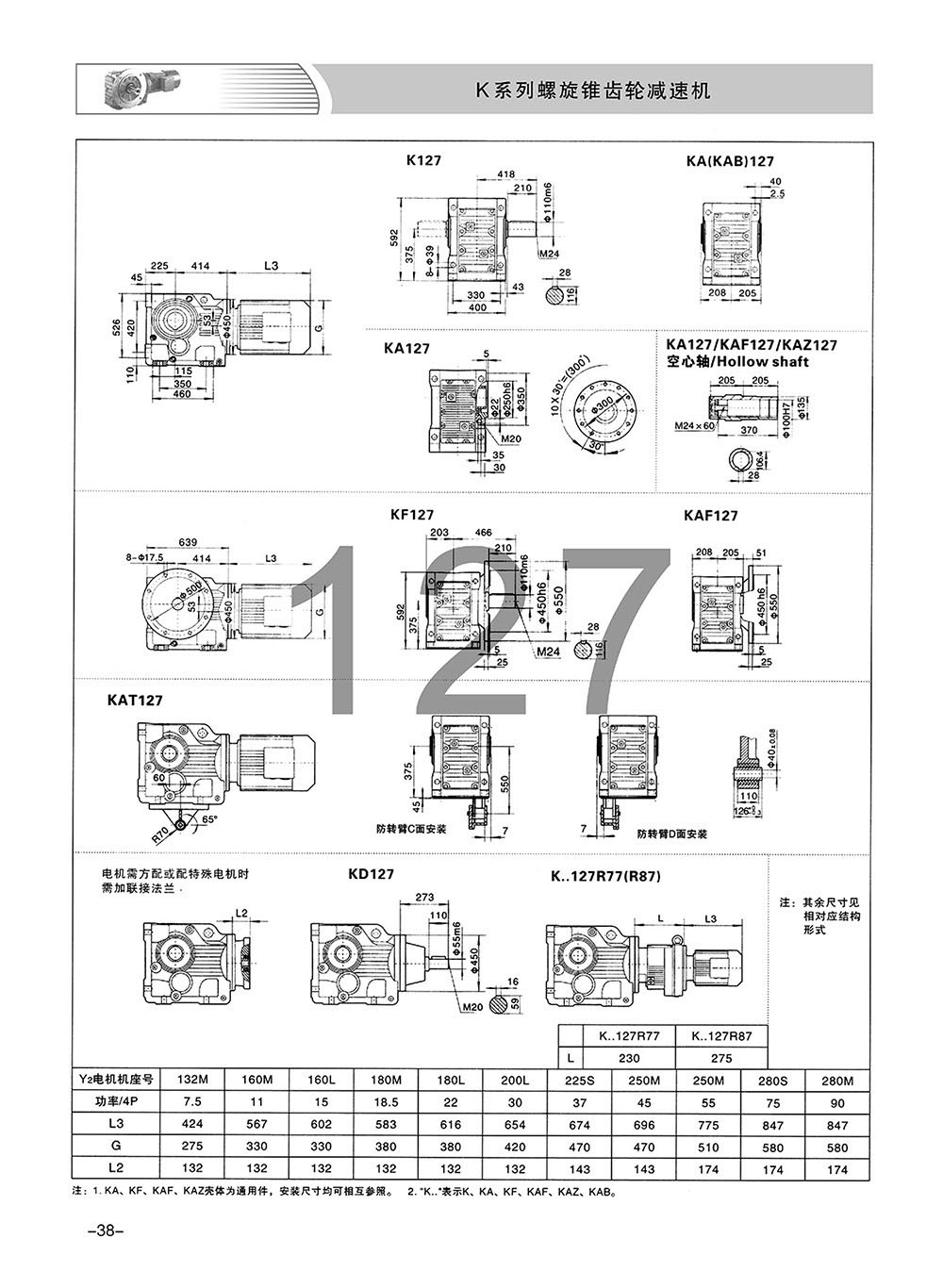

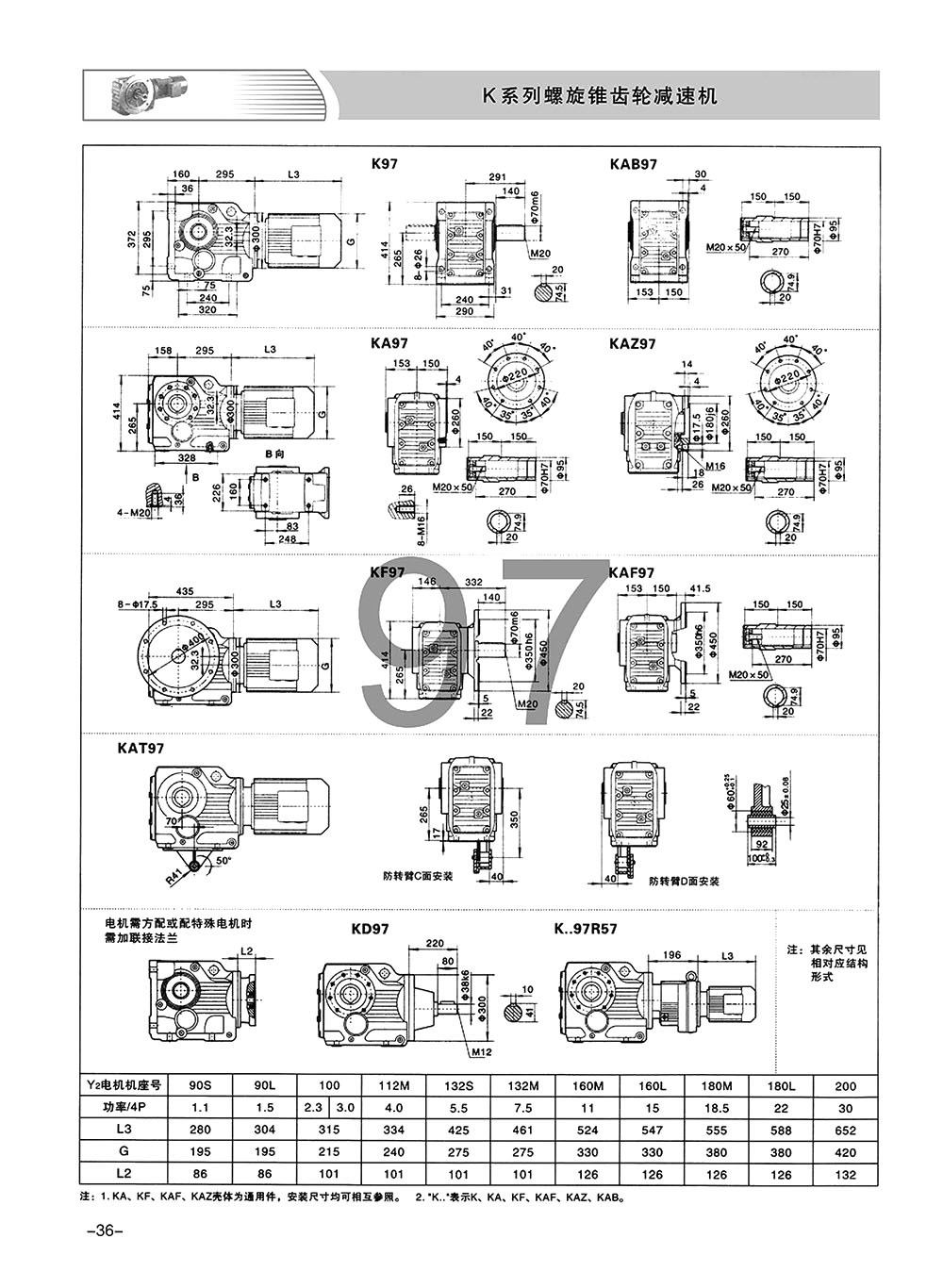

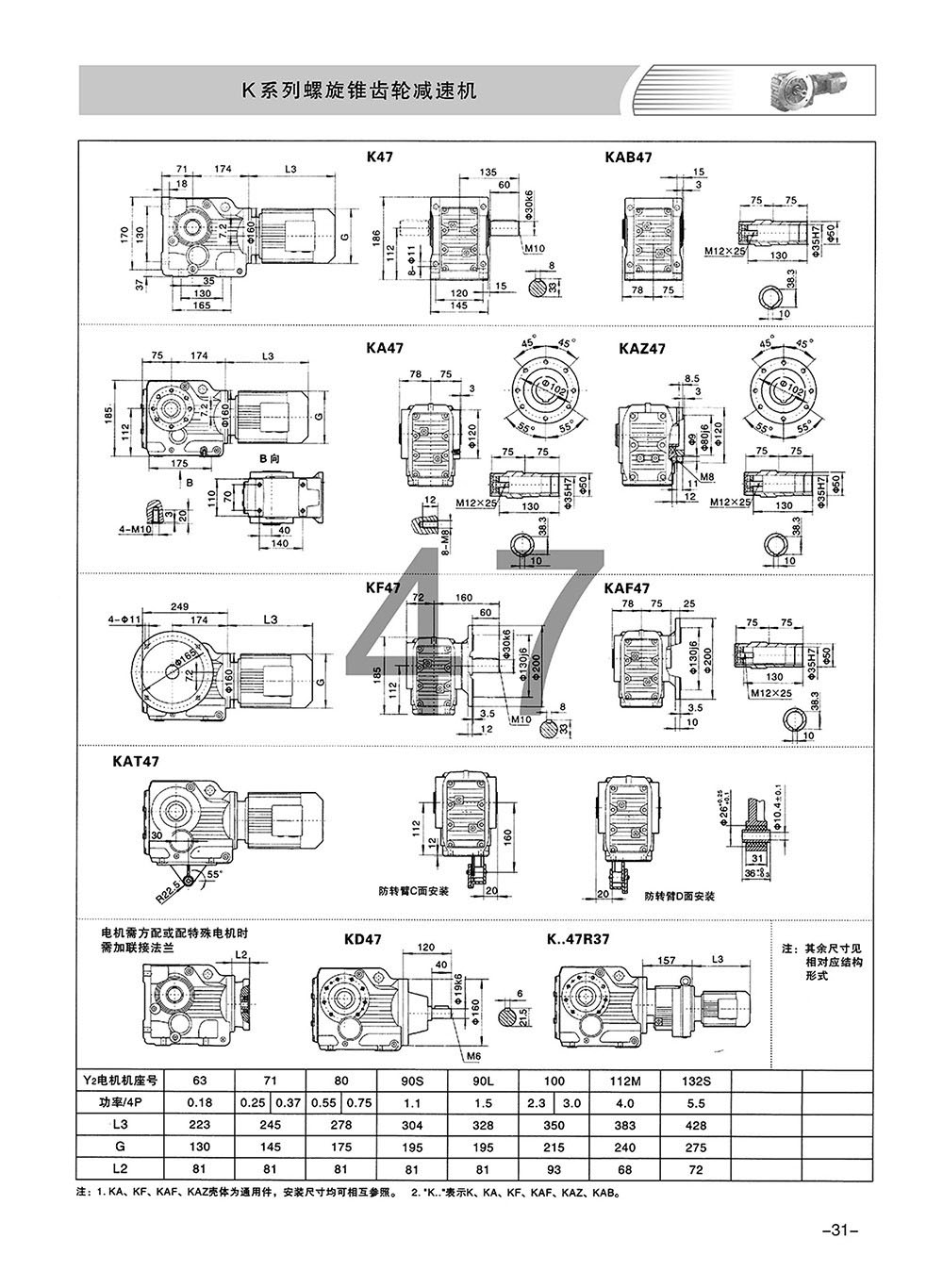

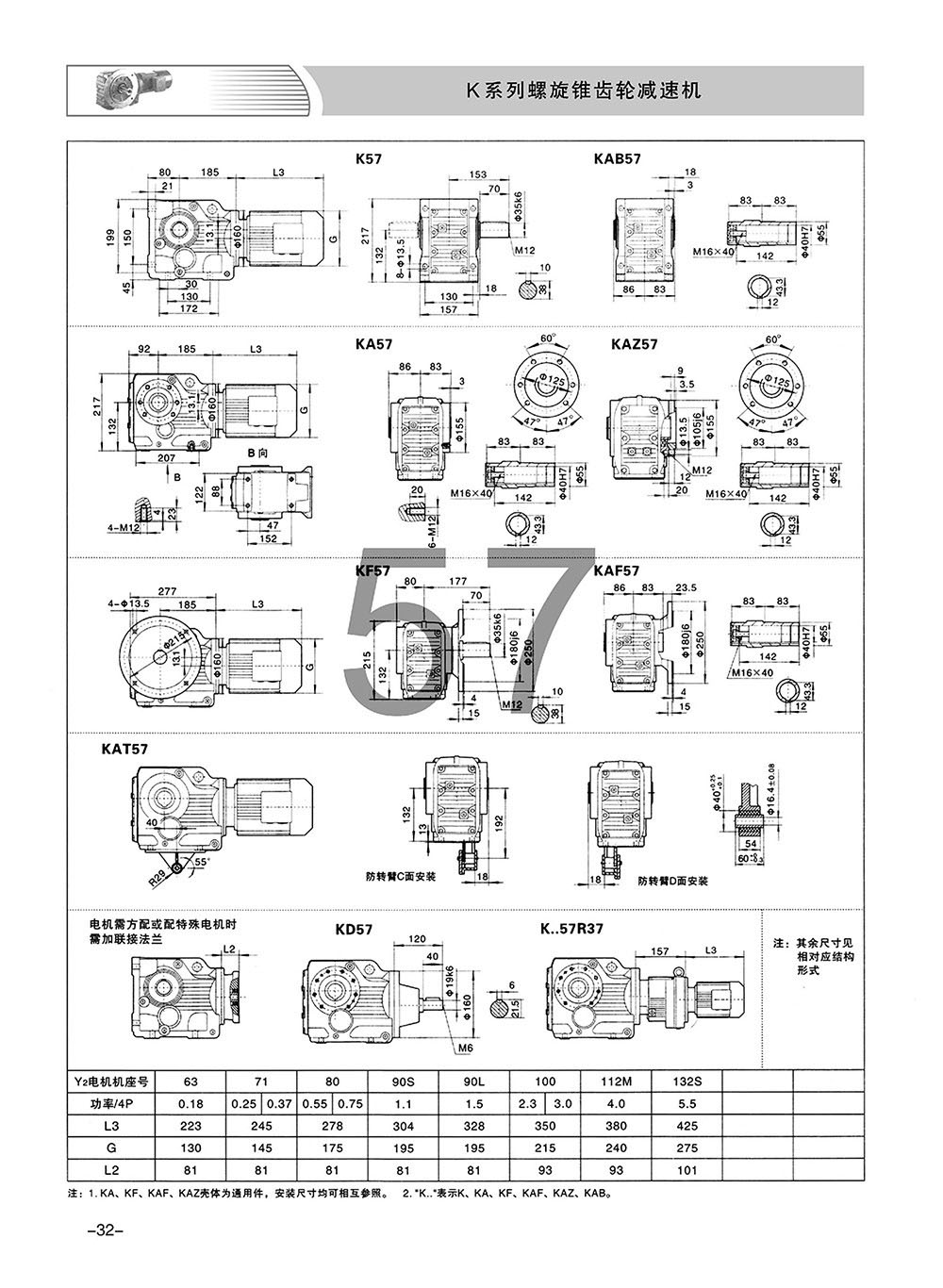

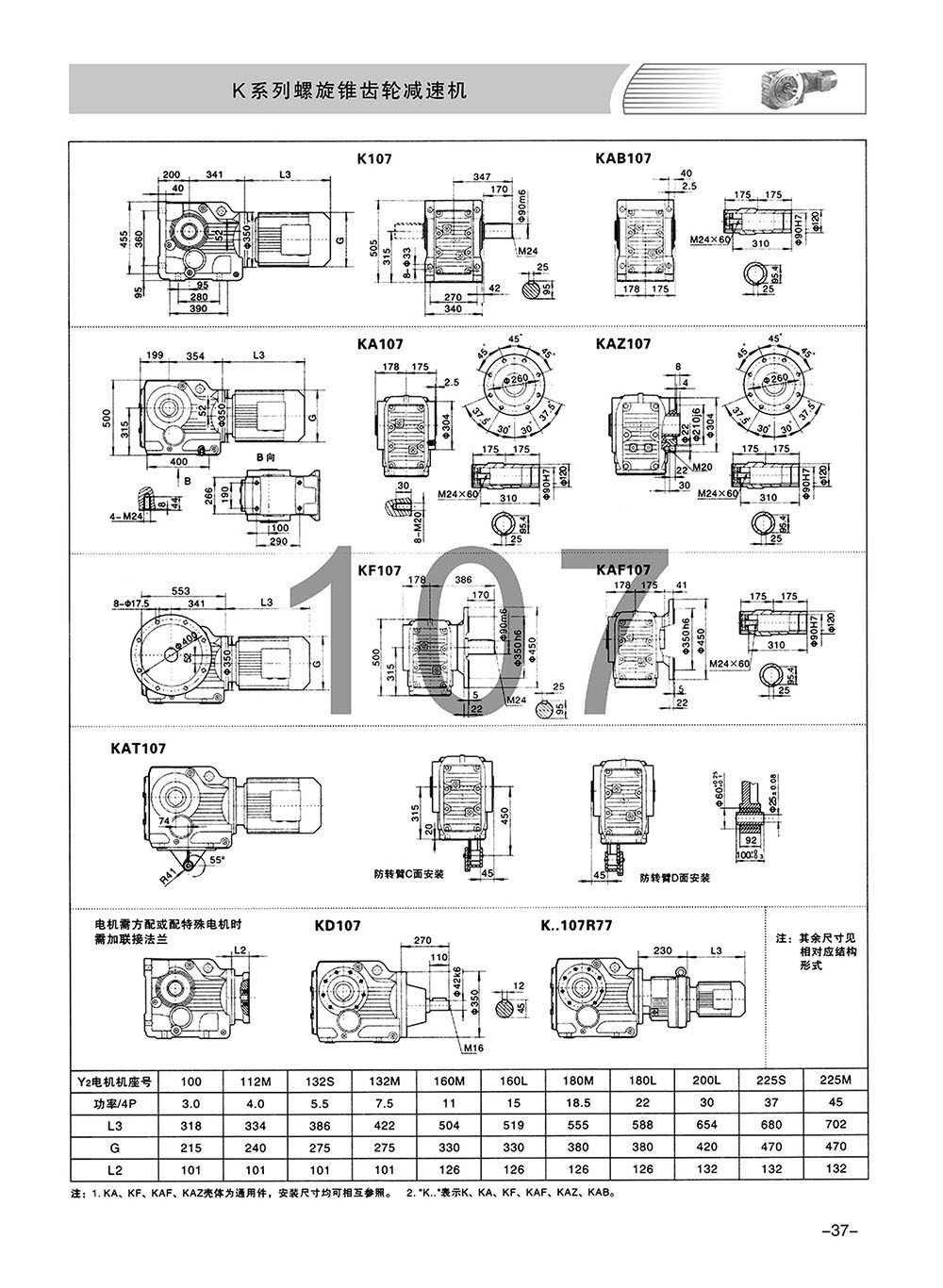

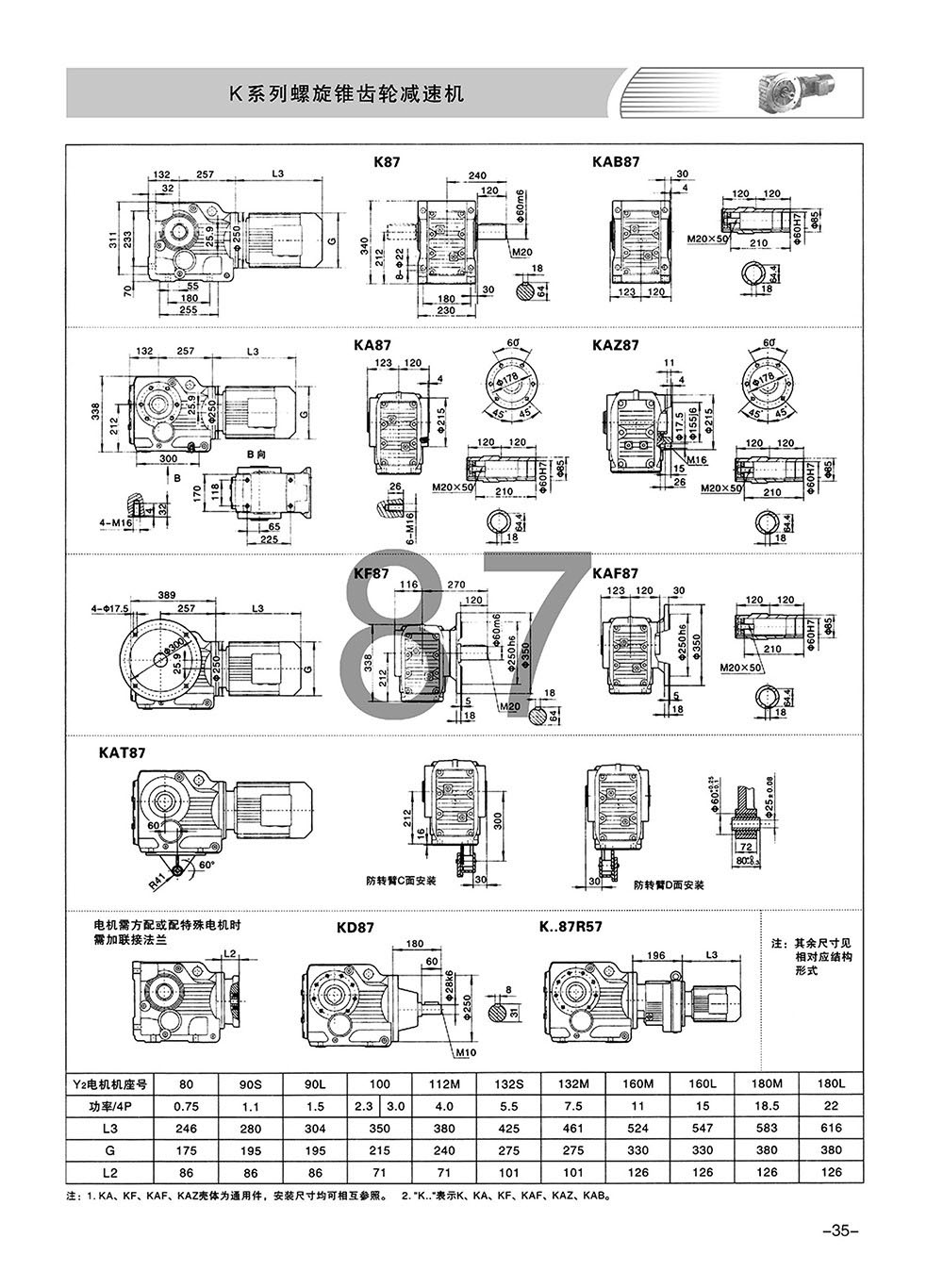

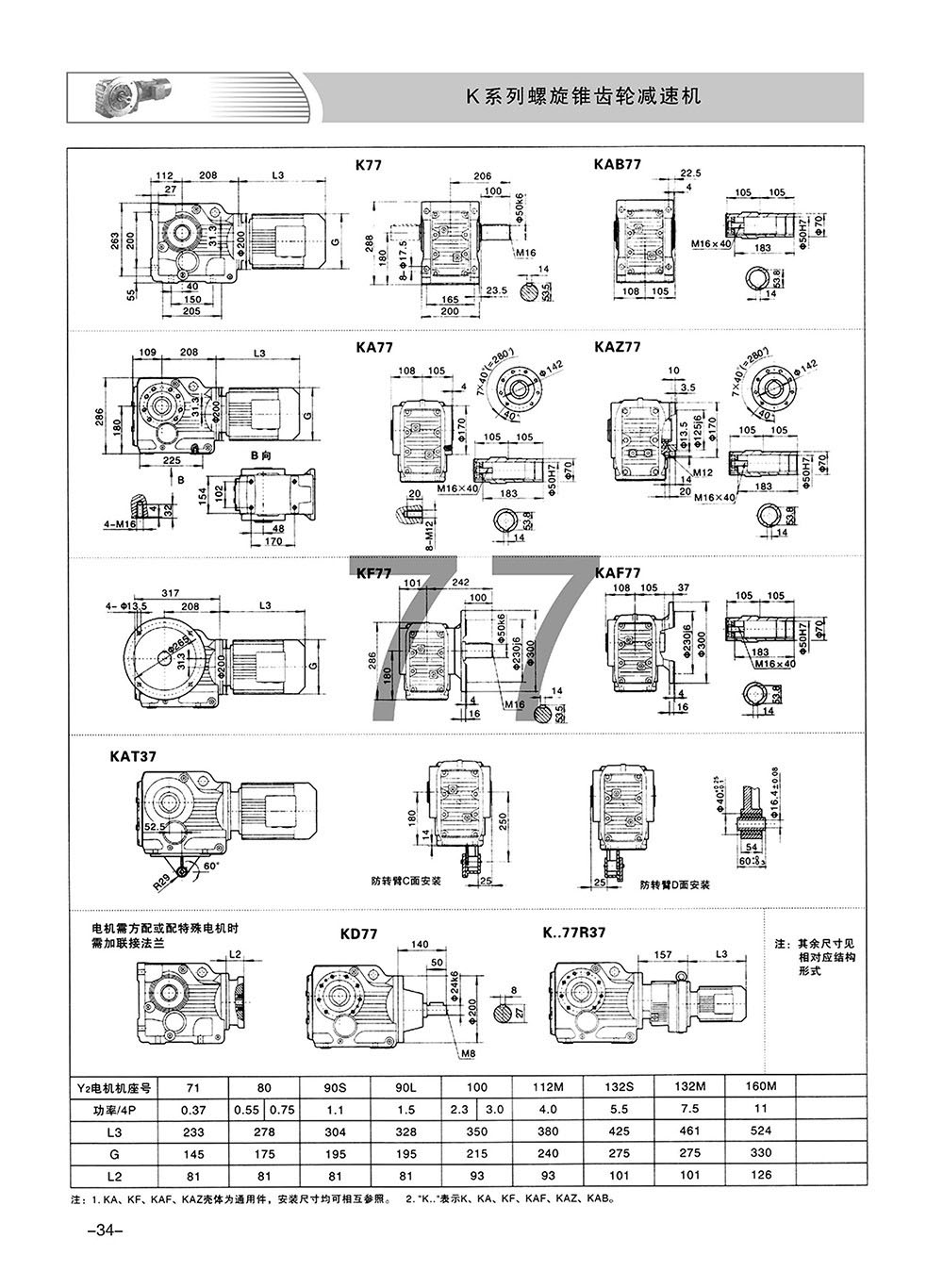

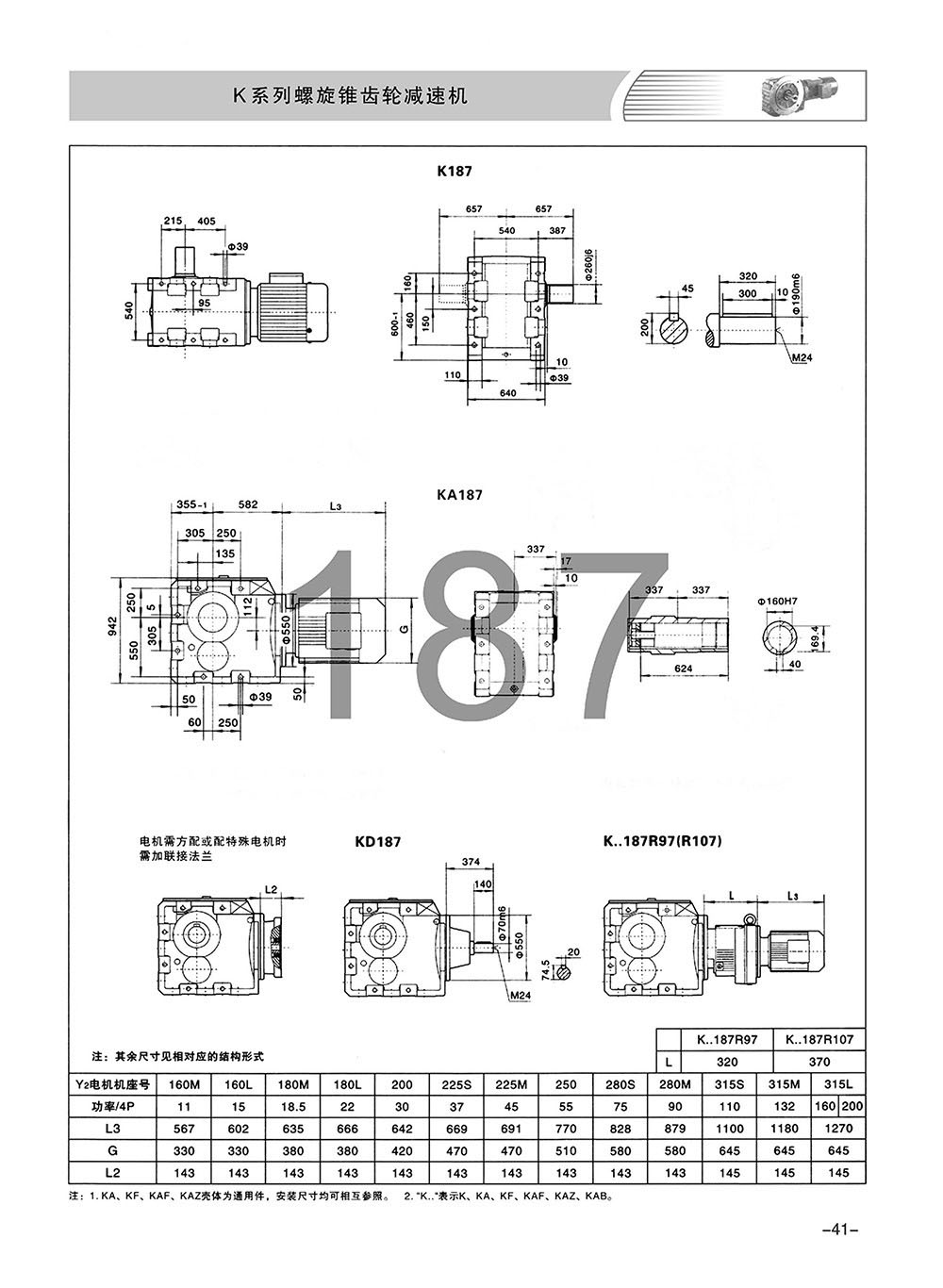

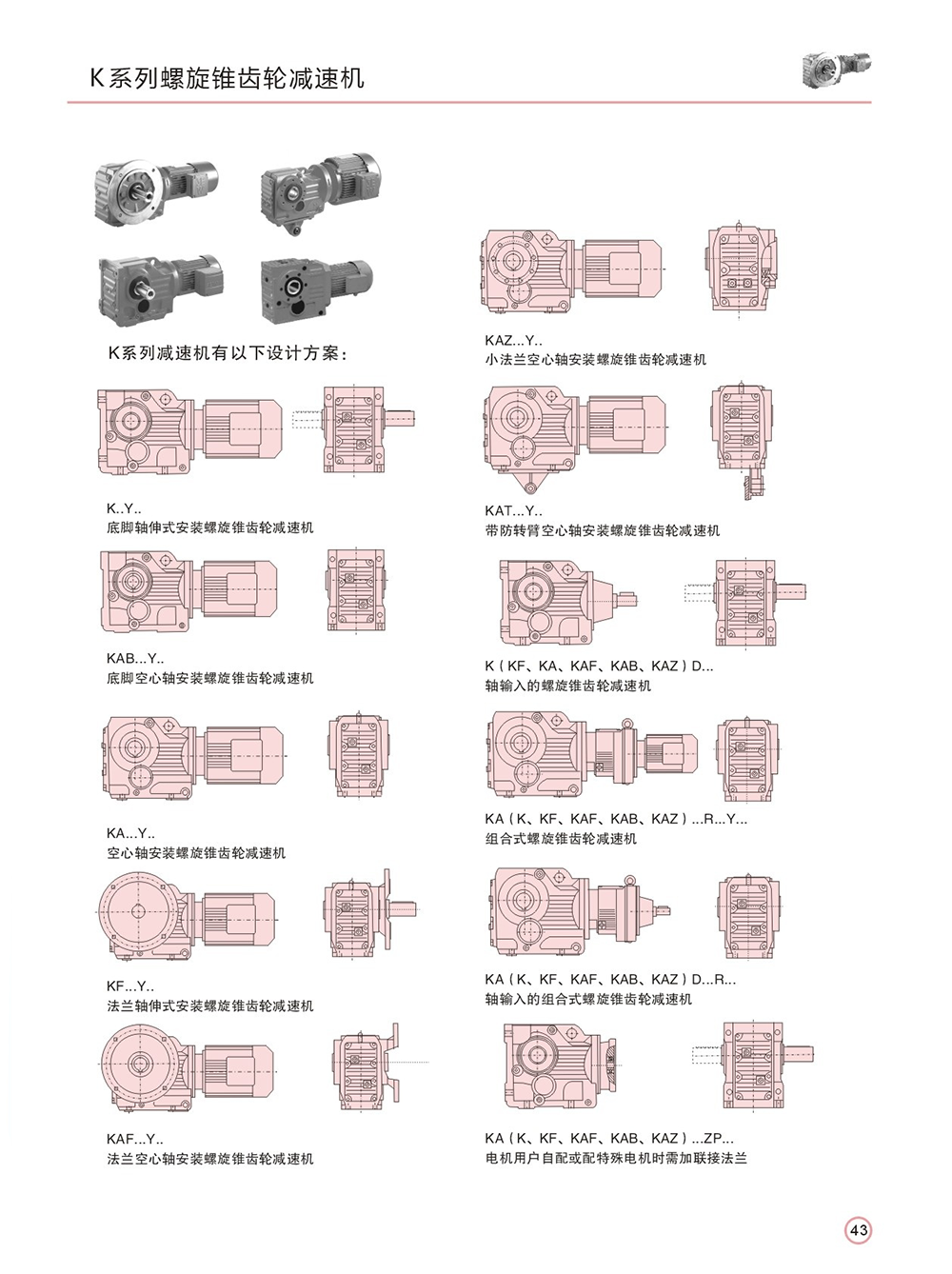

Structural Types:
K: Solid shaft, foot-mounted
KA: Shaft-mounted connection
KF: Solid shaft, flange-mounted
KAF: Shaft-mounted, flange-mounted
S: Input shaft
