Gear Reducer

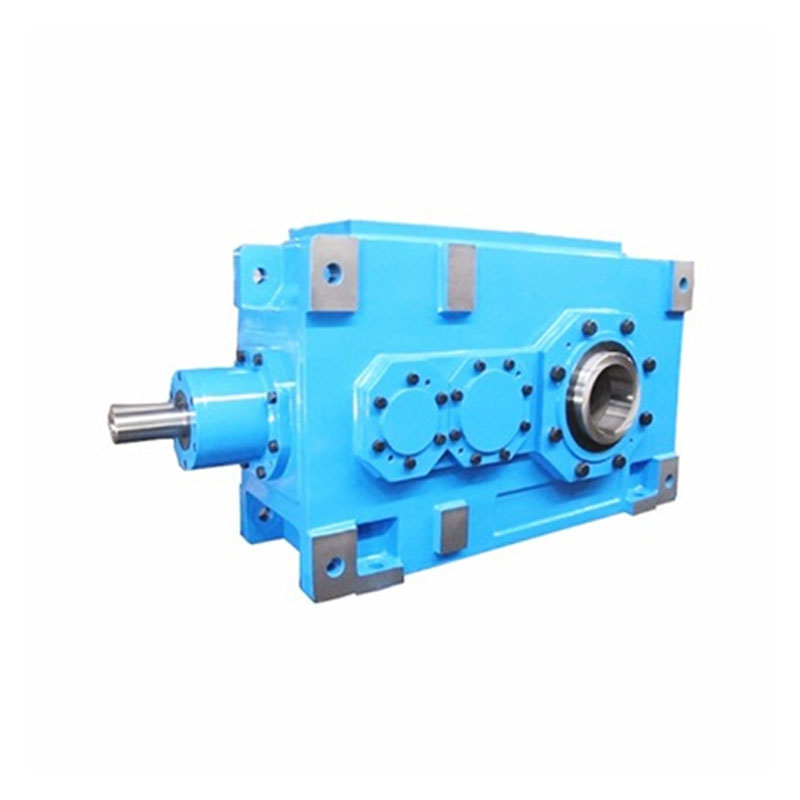

HB series high power gearbox

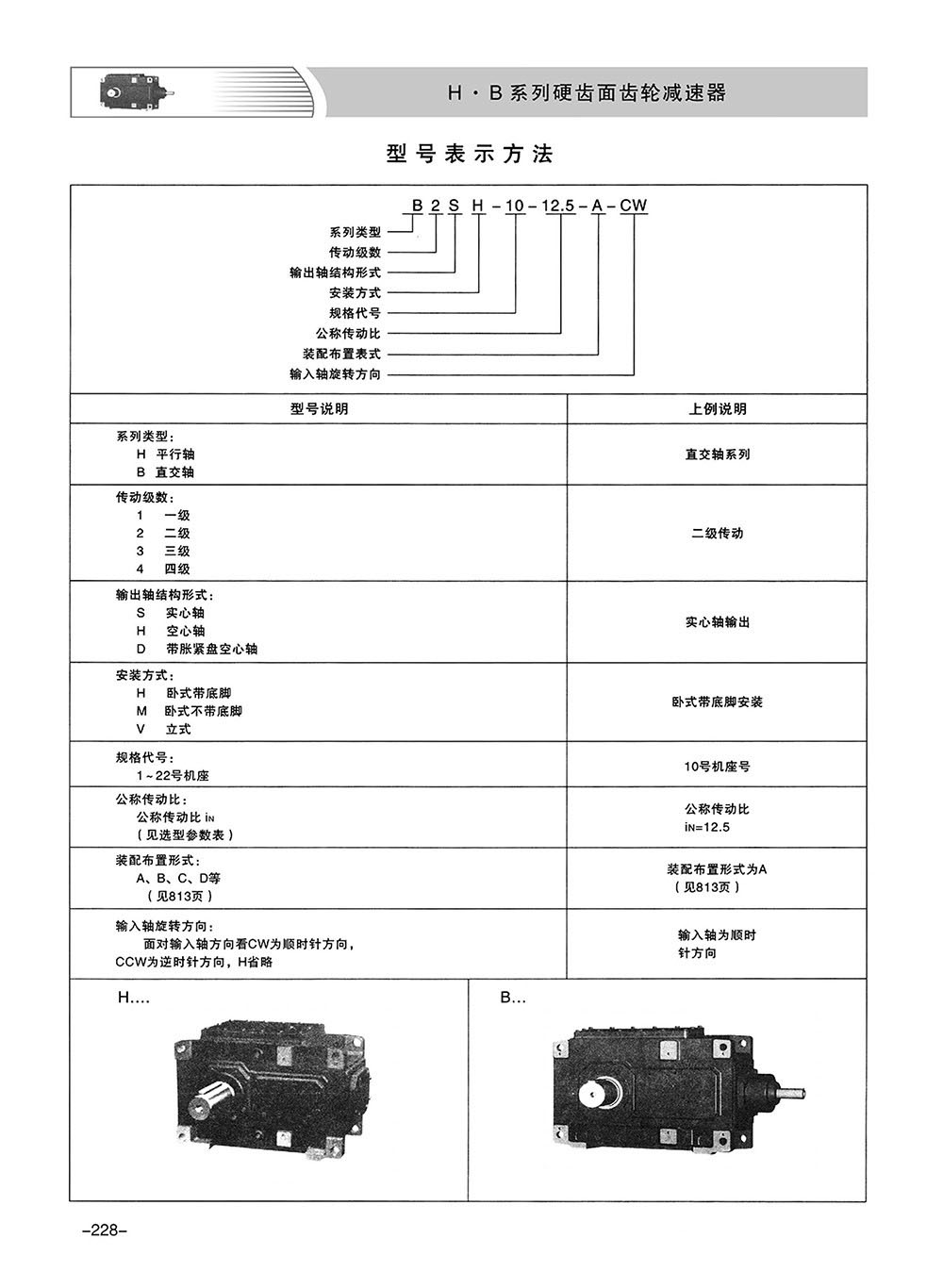

Product Models:
H Series Models:
H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19
H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14, H2SH15, H2SH16, H2SH17, H2SH18, H2SH19, H2SH20
H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15, H3SH16, H3SH17, H3SH18, H3SH19, H3SH20
H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16, H4SH17, H4SH18, H4SH19, H4SH20

B Series Models:
B2SH4, B2SH5, B2SH6, B2SH7, B2SH8, B2SH9, B2SH10, B2SH11, B2SH12, B2SH13, B2SH14, B2SH15, B2SH16, B2SH17, B2SH18
B3SH4, B3SH5, B3SH6, B3SH7, B3SH8, B3SH9, B3SH10, B3SH11, B3SH12, B3SH13, B3SH14, B3SH15, B3SH16, B3SH17, B3SH18, B3SH19, B3SH20

Product Description

Technical Features:
1. The HB series high-power gearbox adopts a universal design concept and can be customized into industry-specific gearboxes according to customer requirements.

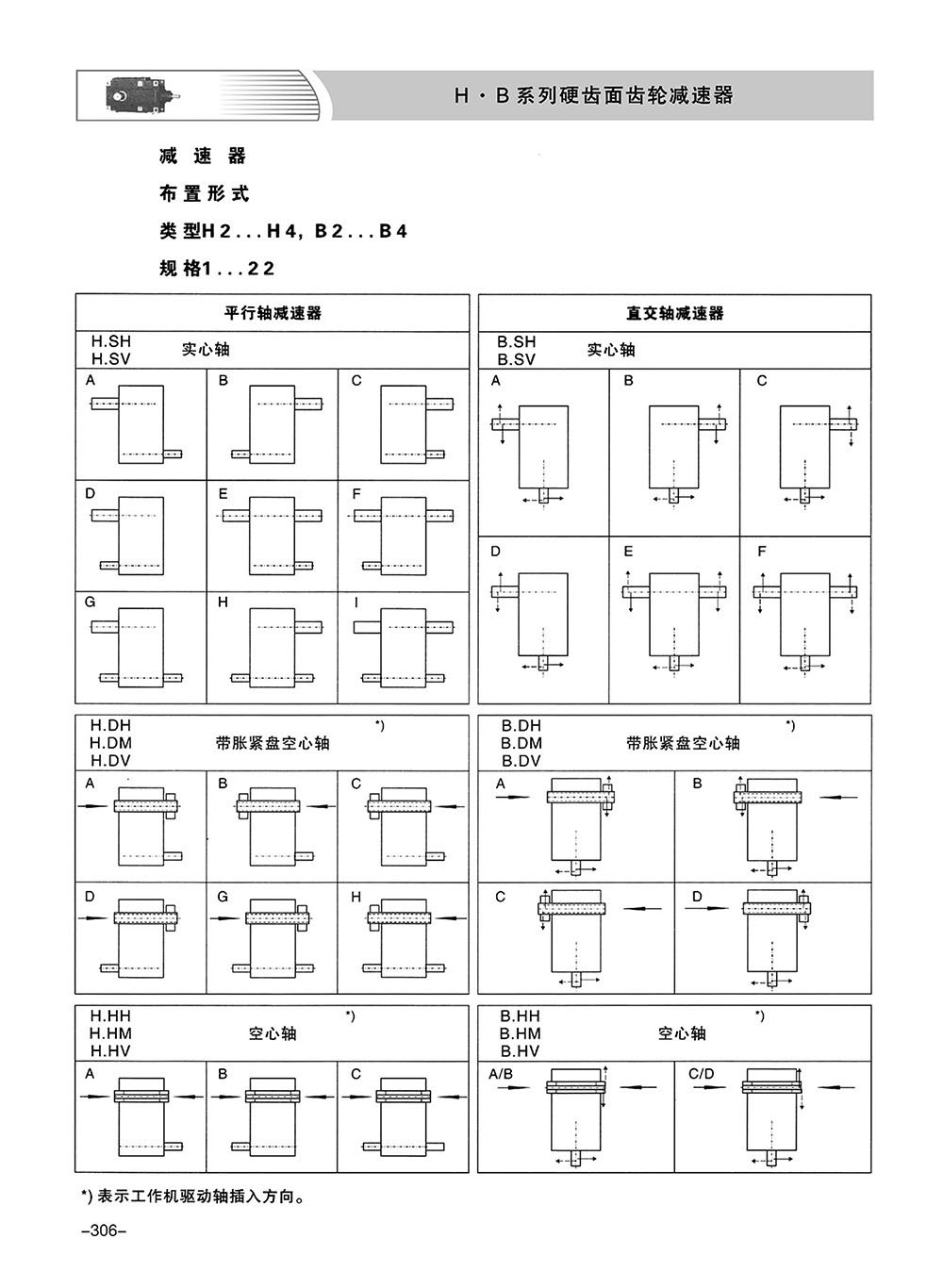

2. The design supports a universal housing for parallel shafts, right-angle shafts, vertical, and horizontal orientations, reducing the number of components while increasing the range of specifications and models.
3. The sound-absorbing housing structure, large surface area, and large fan design, combined with advanced gear grinding technology for cylindrical and spiral bevel gears, reduce temperature rise and noise, enhance operational reliability, and increase power transmission capacity.
4. Input Options: Motor connection flange or shaft input.

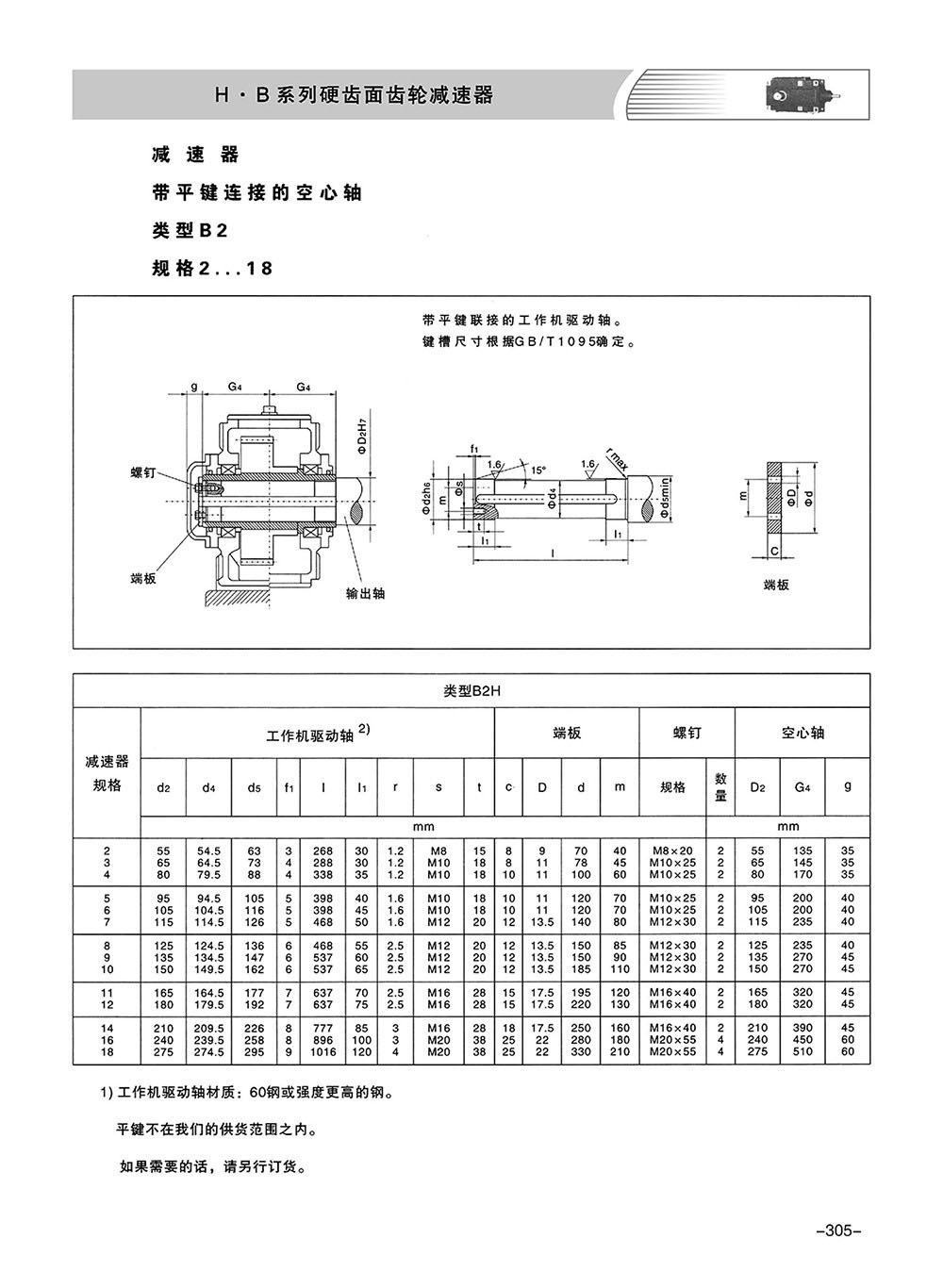

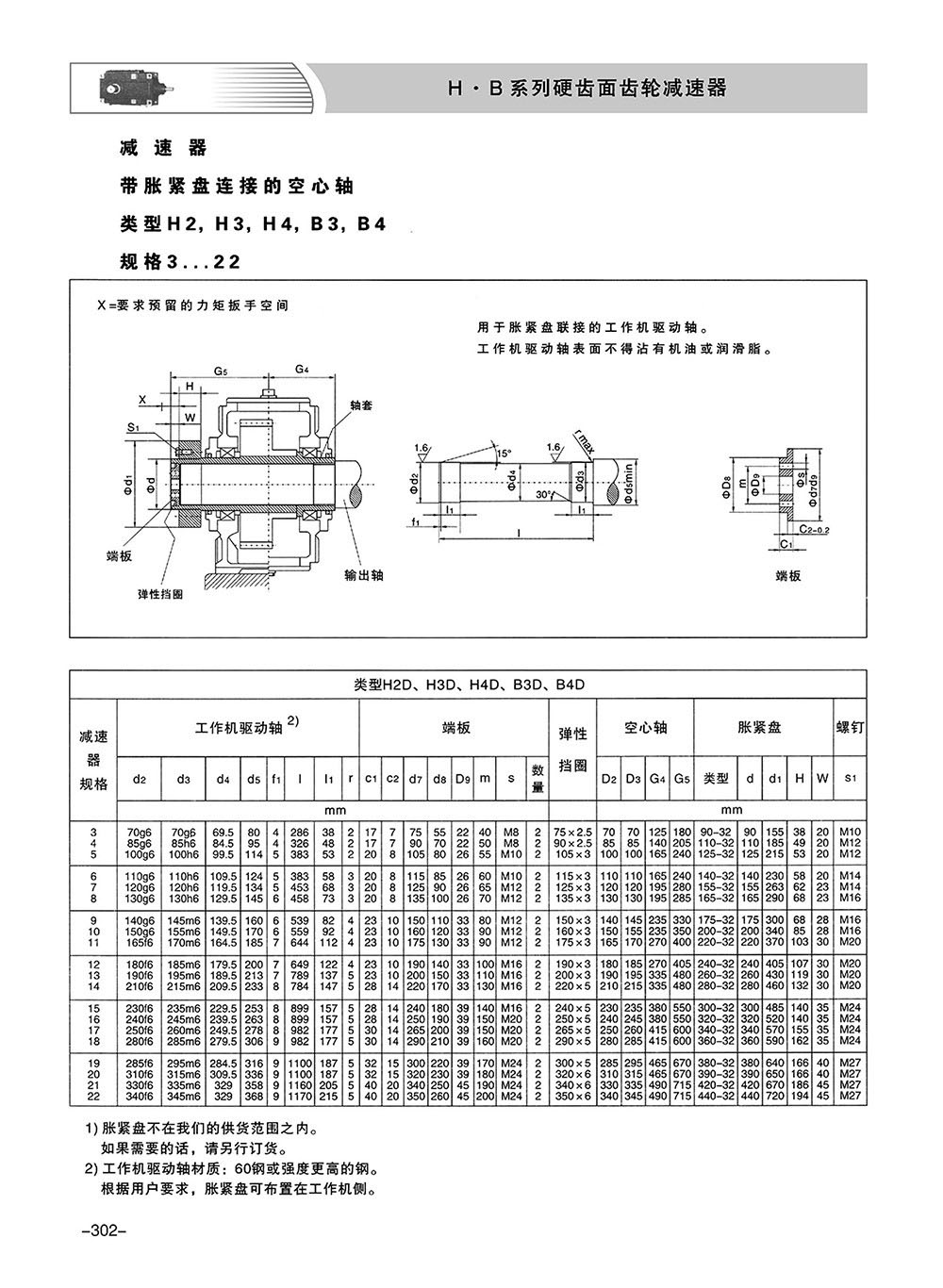

5. Output Options: Solid shaft with key, hollow shaft with key, hollow shaft with shrink disk connection, hollow shaft with spline connection, solid shaft with spline connection, and solid shaft with flange connection.
6. Installation Options: Horizontal, vertical, swing base, and torque arm mounting.
7. The HB series high power gearbox comes in 3 to 26 sizes, with 1 to 4 gear stages, offering gear ratios from 1.25 to 450. By combining with our R, K, and S series, even higher gear ratios can be achieved.

Technical Parameters:
Gear Ratio Range: H series: 1.25–450, B series: 5–400
Torque Range: H series: 2–900 kNm, B series: 5.8–900 kNm

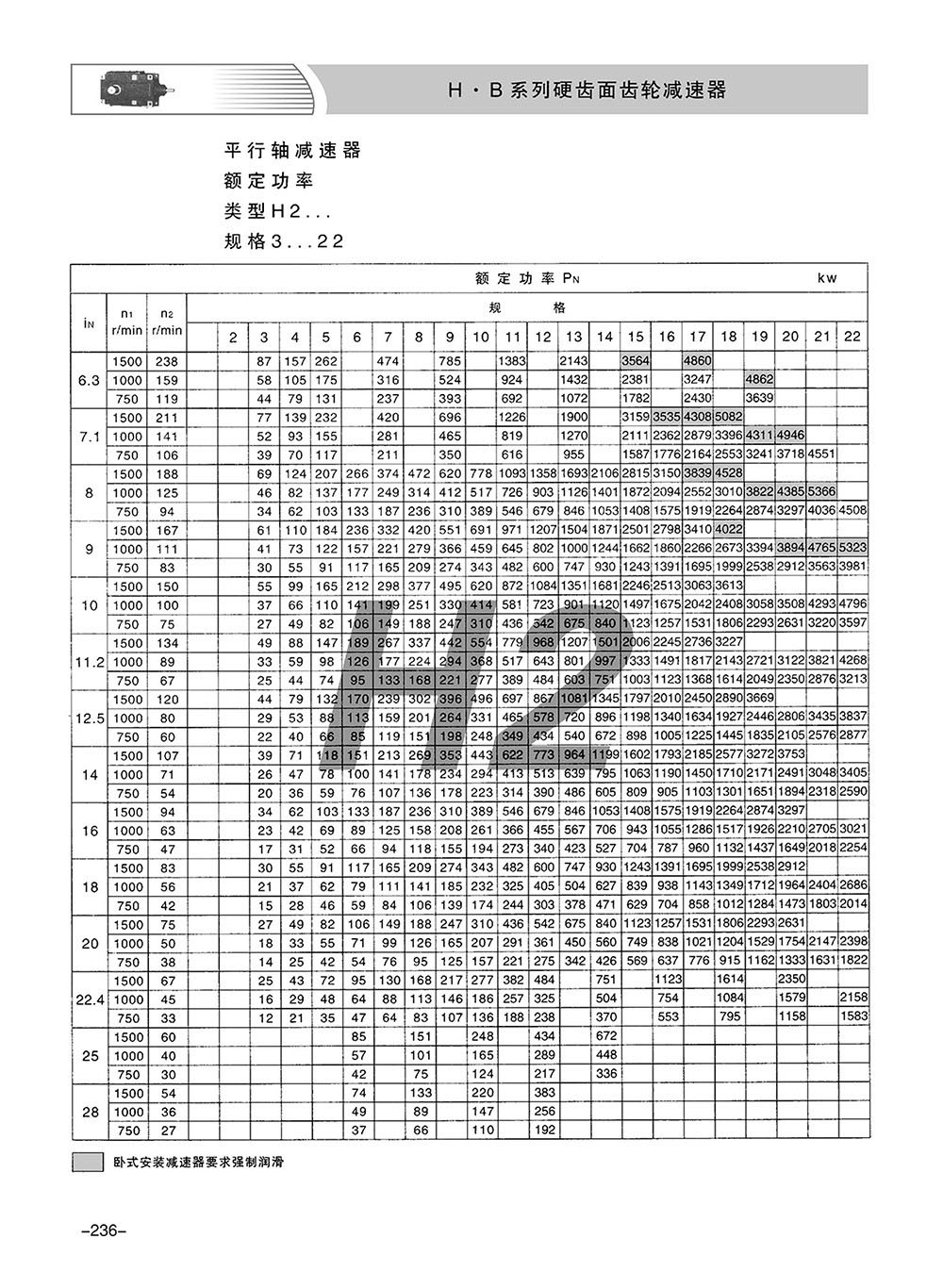

Power Range: H series: 4–5000 kW, B series: 2.8–3000 kW
