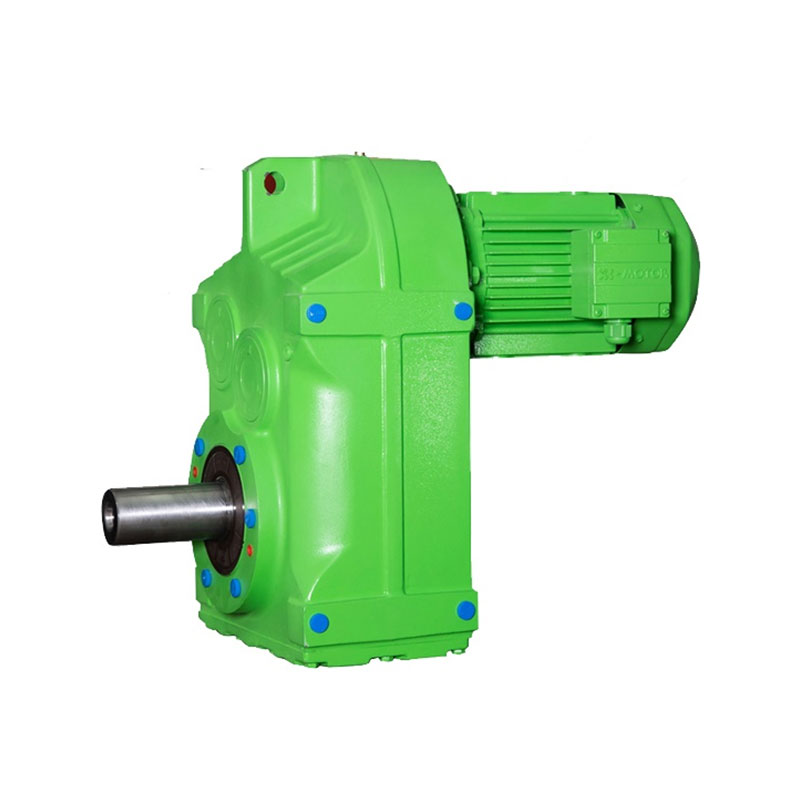

F series parallel shaft helical gear reducer

Product Description

The F series parallel shaft helical gear reducer adopts a standardized, modular design concept, offering broad adaptability. It features numerous motor combinations, installation positions, and structural solutions, allowing you to select any speed and various structural configurations according to your actual needs. The use of high-quality rigid cast iron housings significantly enhances the hardness and impact resistance of the housing. All transmission gears undergo high-frequency heat treatment, greatly increasing their hardness and wear resistance. Another notable feature of this machine is its planetary design principle, allowing integration with the MB series stepless variator from the same manufacturer to form a stepless speed regulation gear motor, enabling speed adjustment within an extremely low output range. This series is widely used in light industry, food, beer and beverage, chemical, escalators, automated warehousing equipment, construction and building materials machinery, steel metallurgy, environmental protection, power plants, coal, mining, paper, engineered wood, automotive, ports (airports, docks), and tobacco machinery sectors.

The F series reducer is manufactured according to international technical standards, incorporating advanced technology. It is space-saving, reliable, durable, capable of handling high overloads, with a power capacity exceeding 90 kW. It features low energy consumption, superior performance, efficiency above 95%, minimal vibration, and low noise. Made from high-quality forged steel materials and rigid cast iron housing, the gears undergo high-frequency heat treatment and precise machining to ensure shaft parallelism and positioning accuracy. These aspects form a robust gear transmission assembly, integrating with various motors, resulting in electromechanical integration that fully guarantees the product's performance and quality characteristics.

Performance Features:
Parallel Output: Compact structure, large torque transmission, smooth operation, low noise, and long service life.

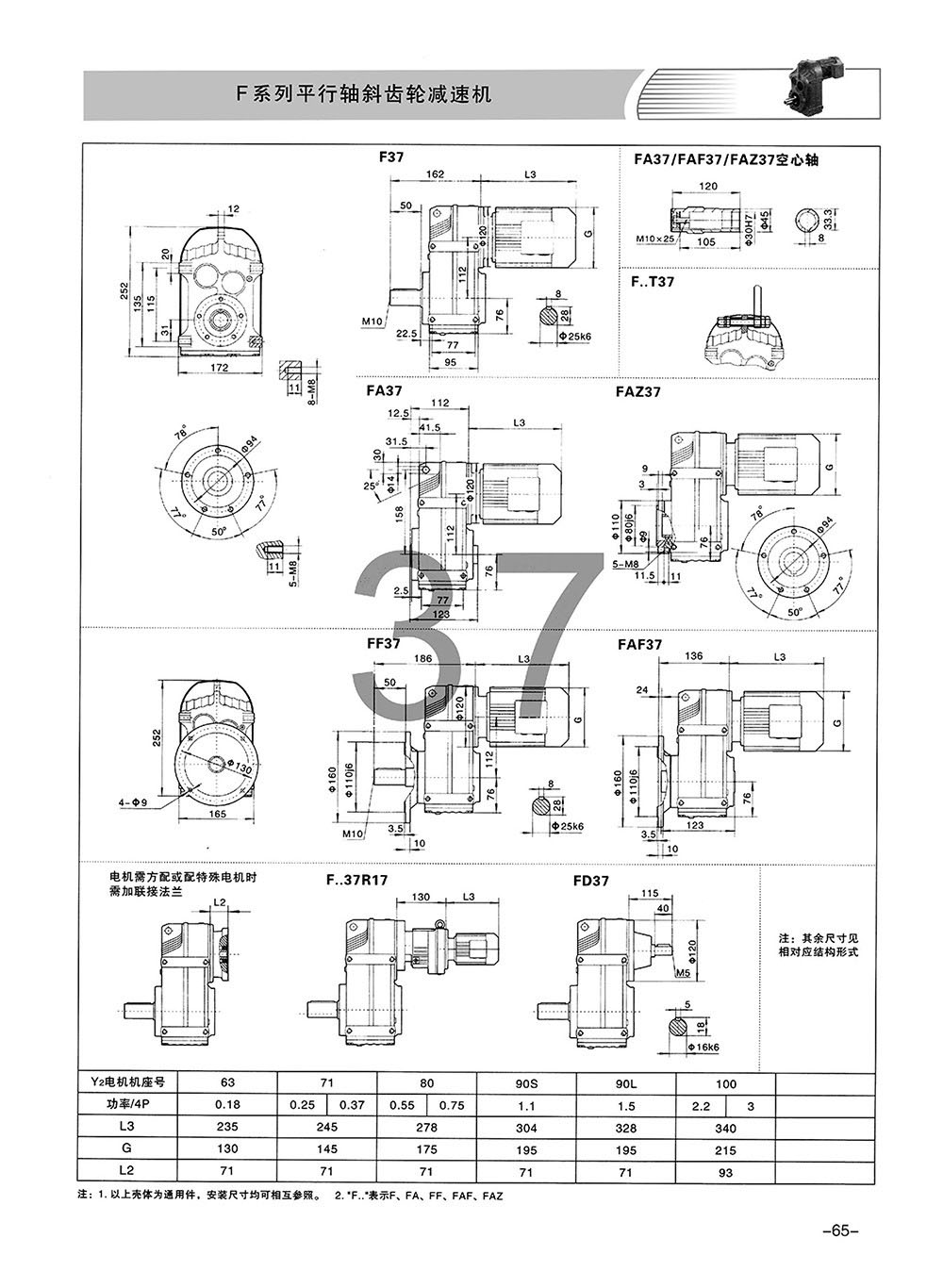

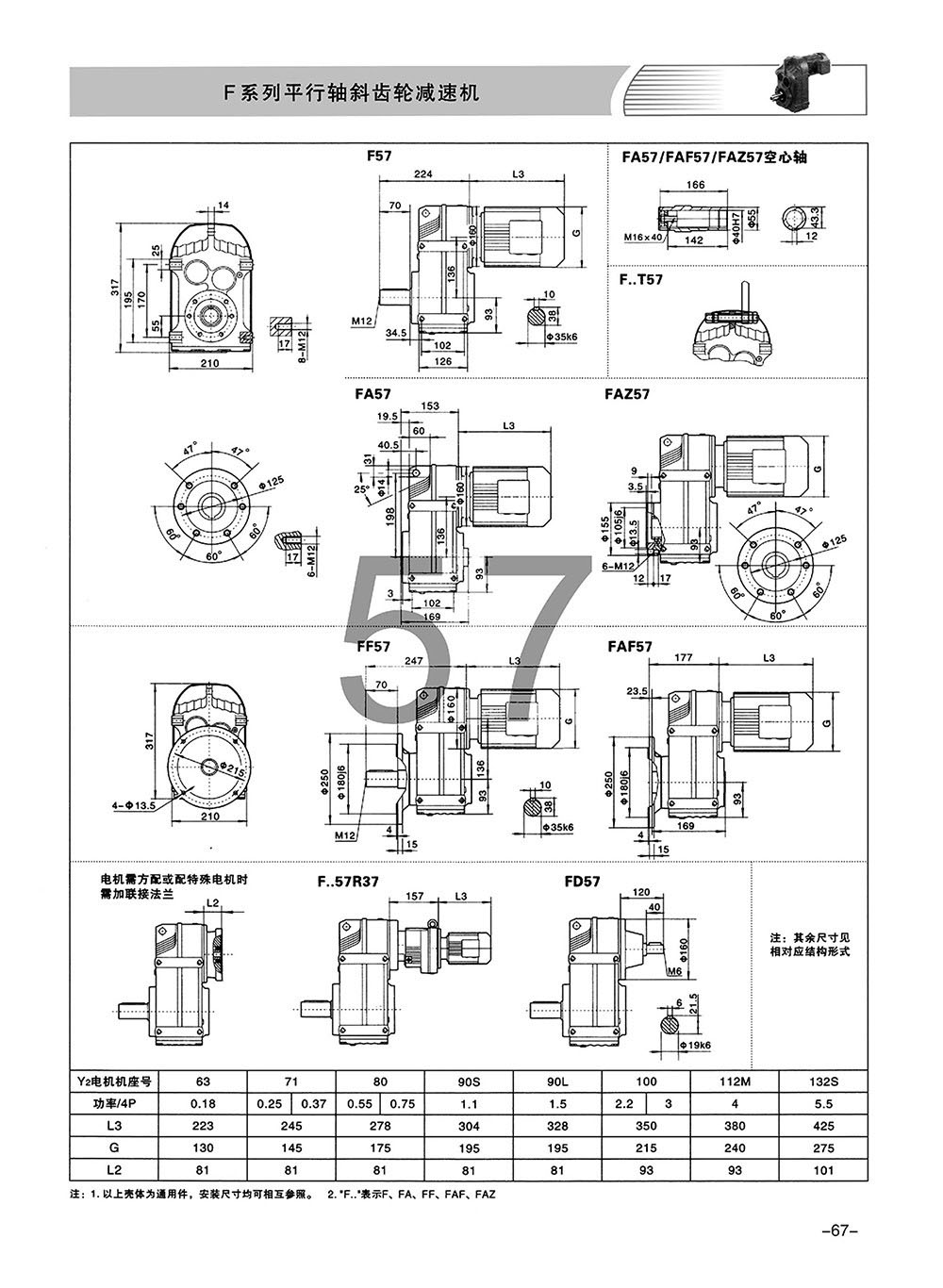

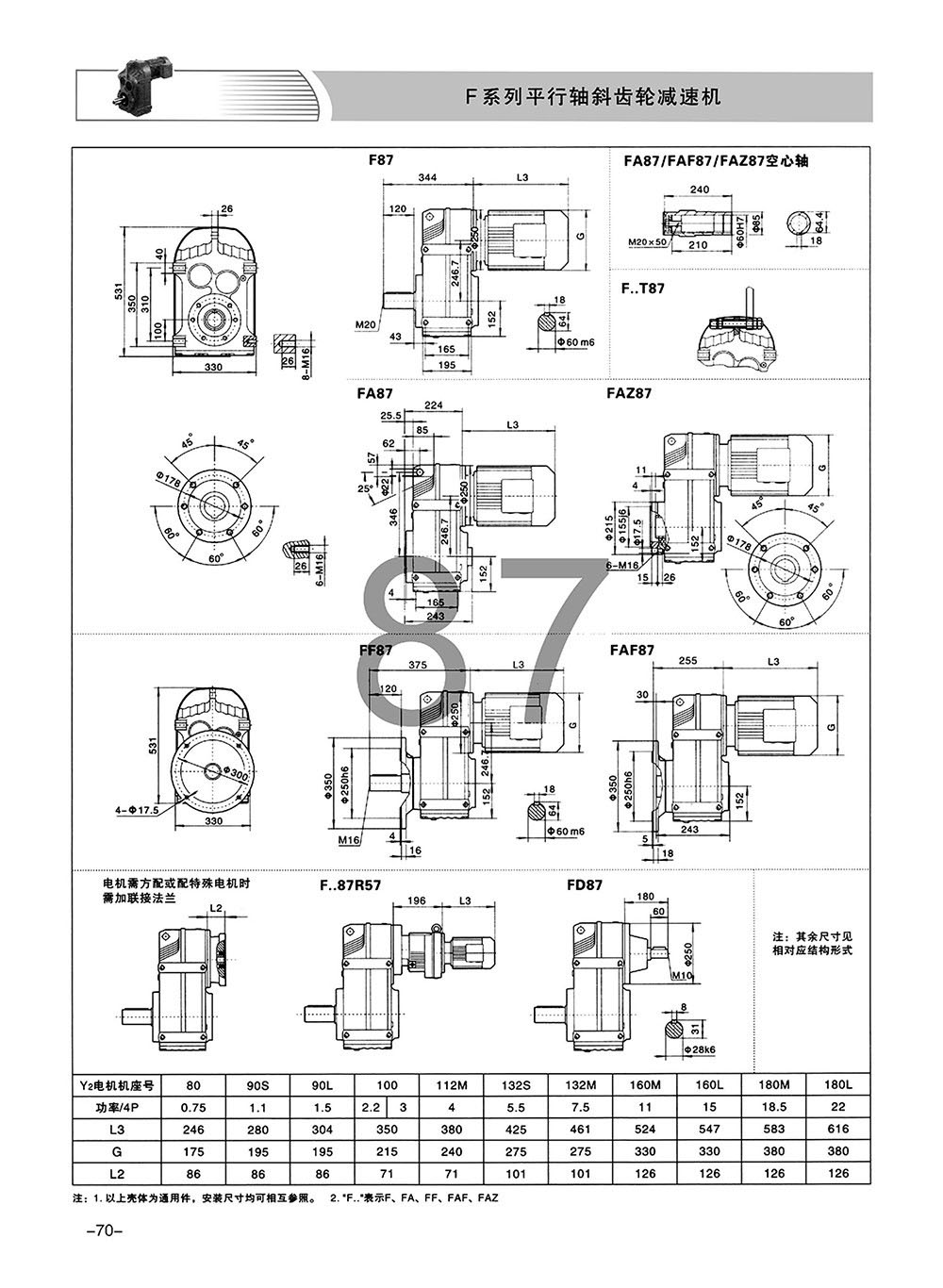

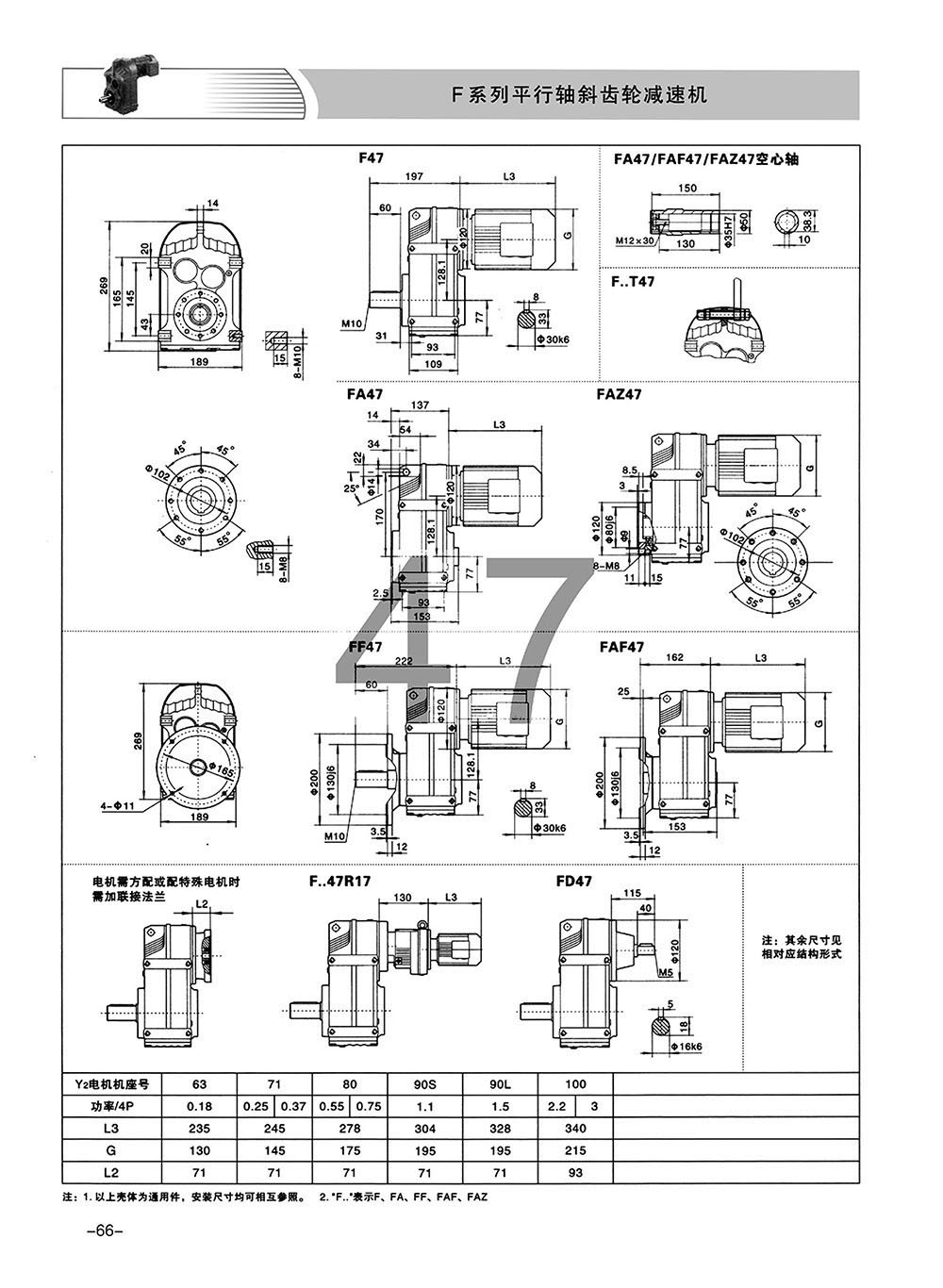

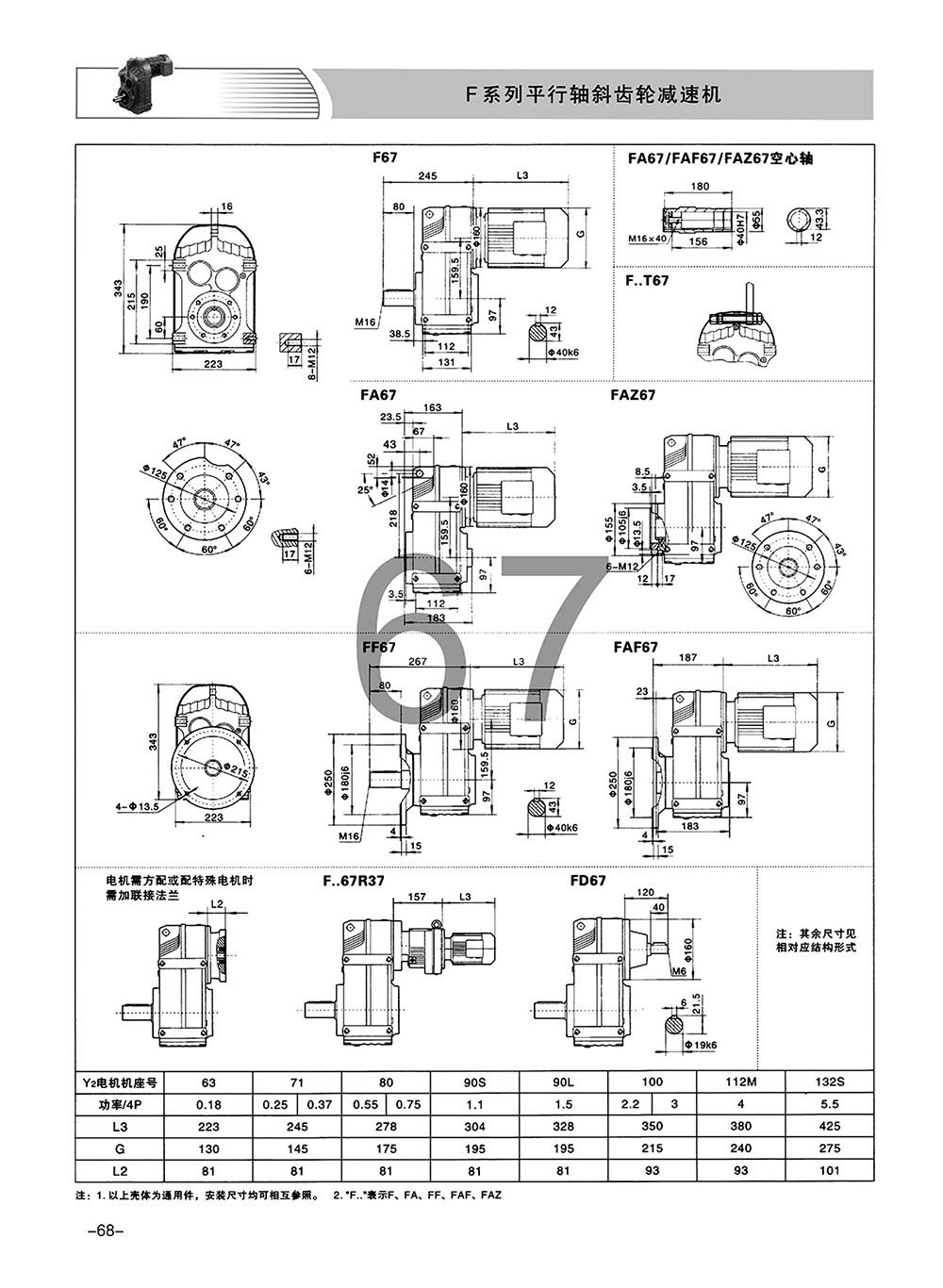

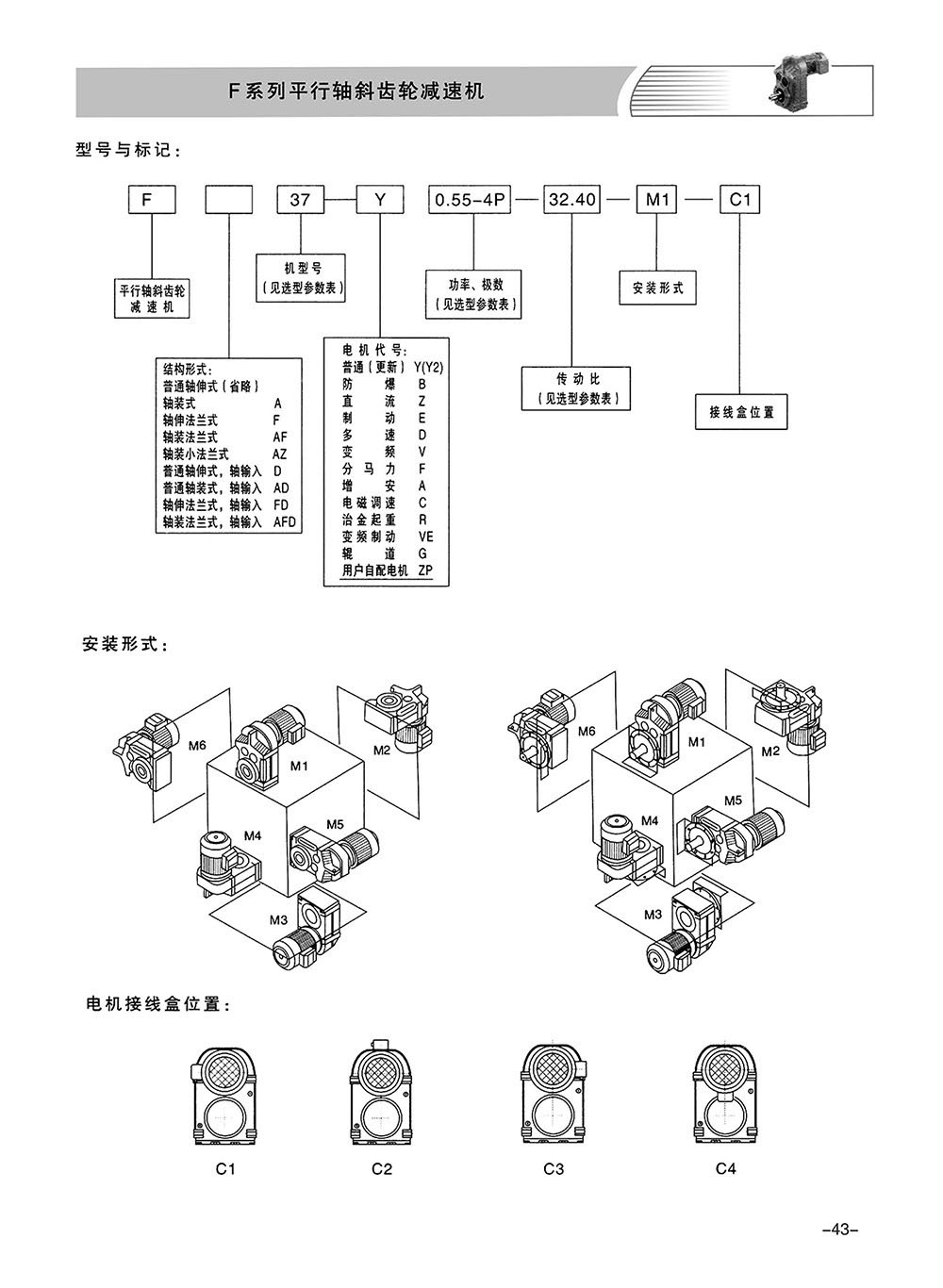

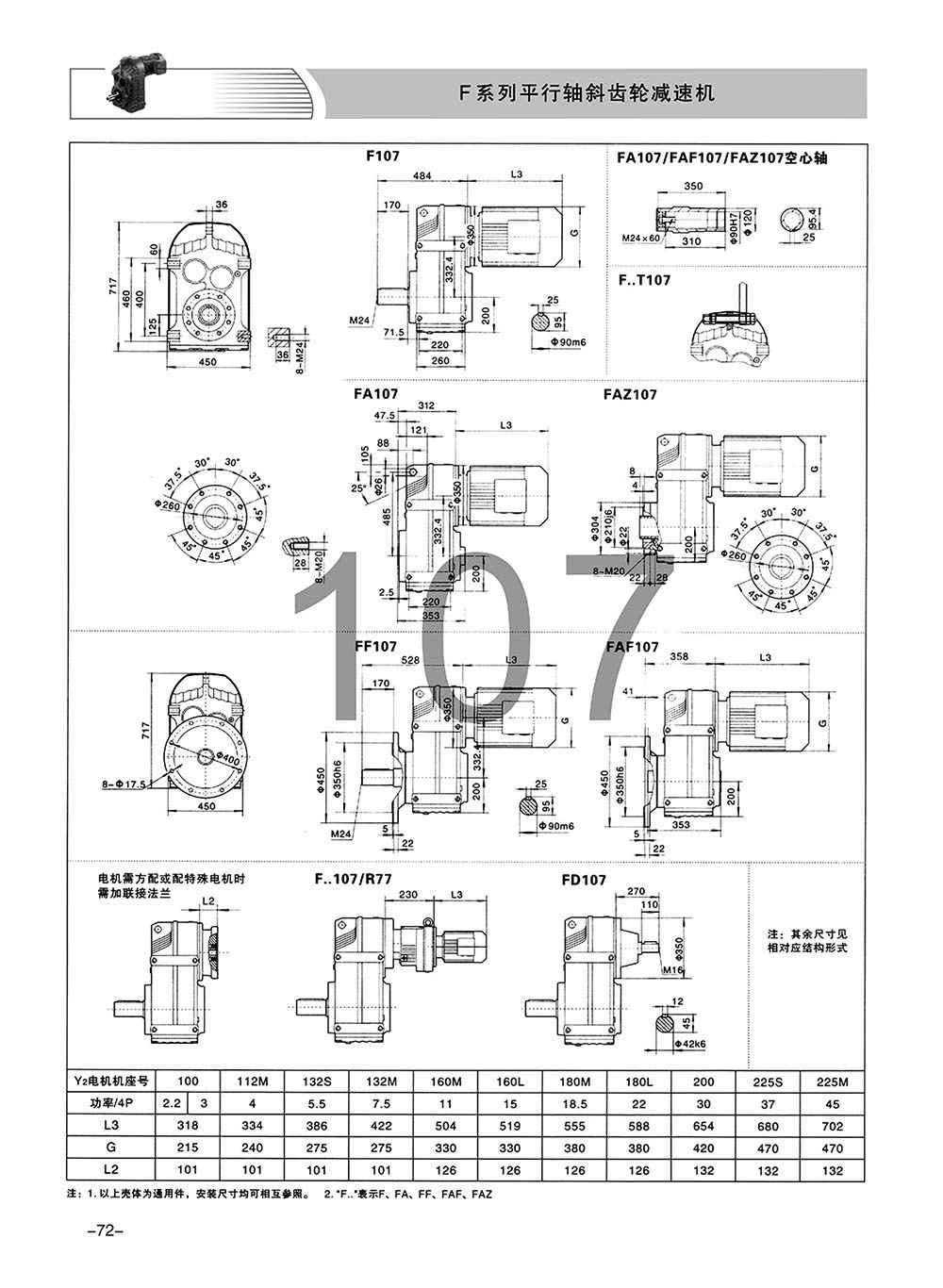

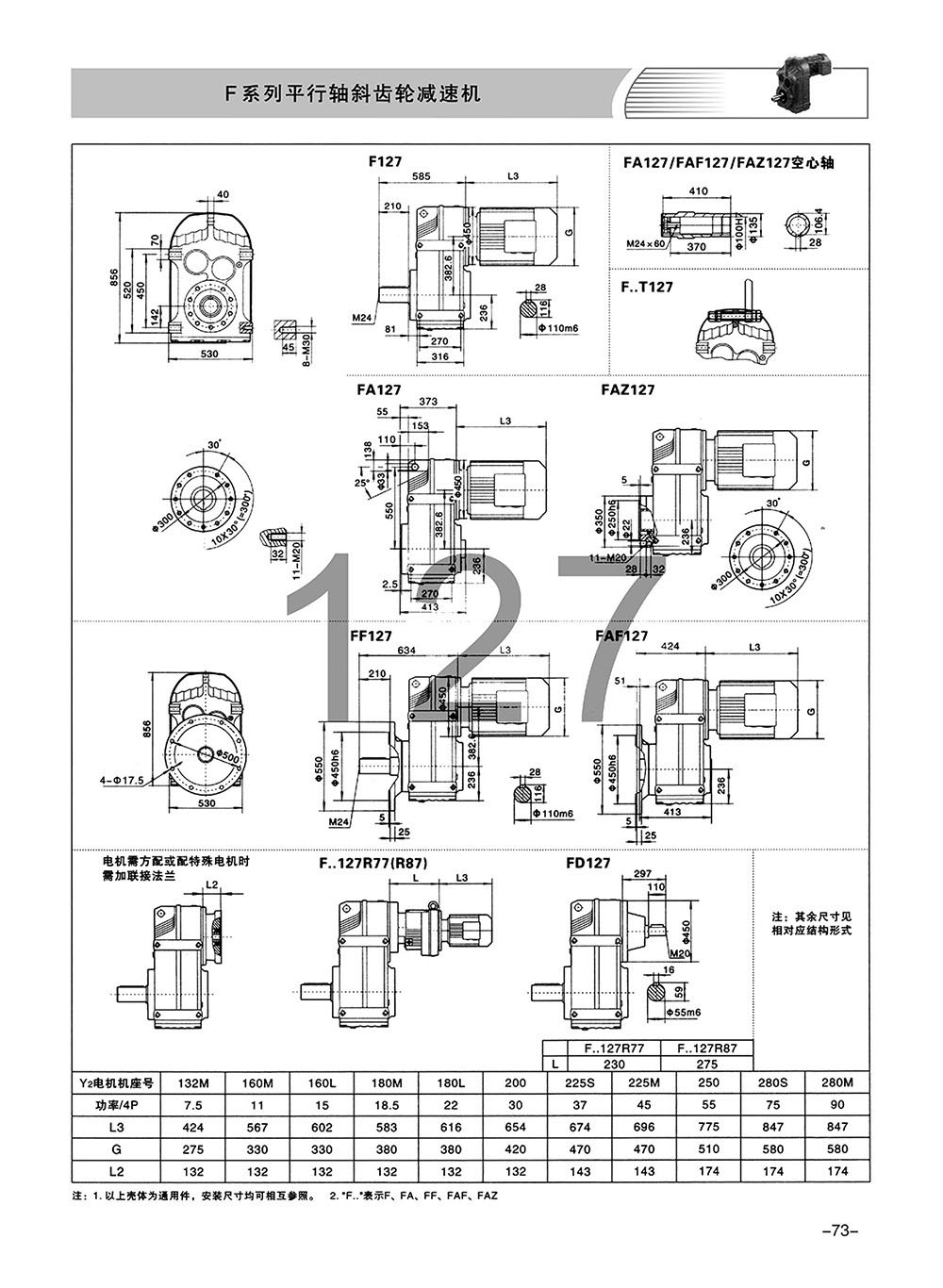

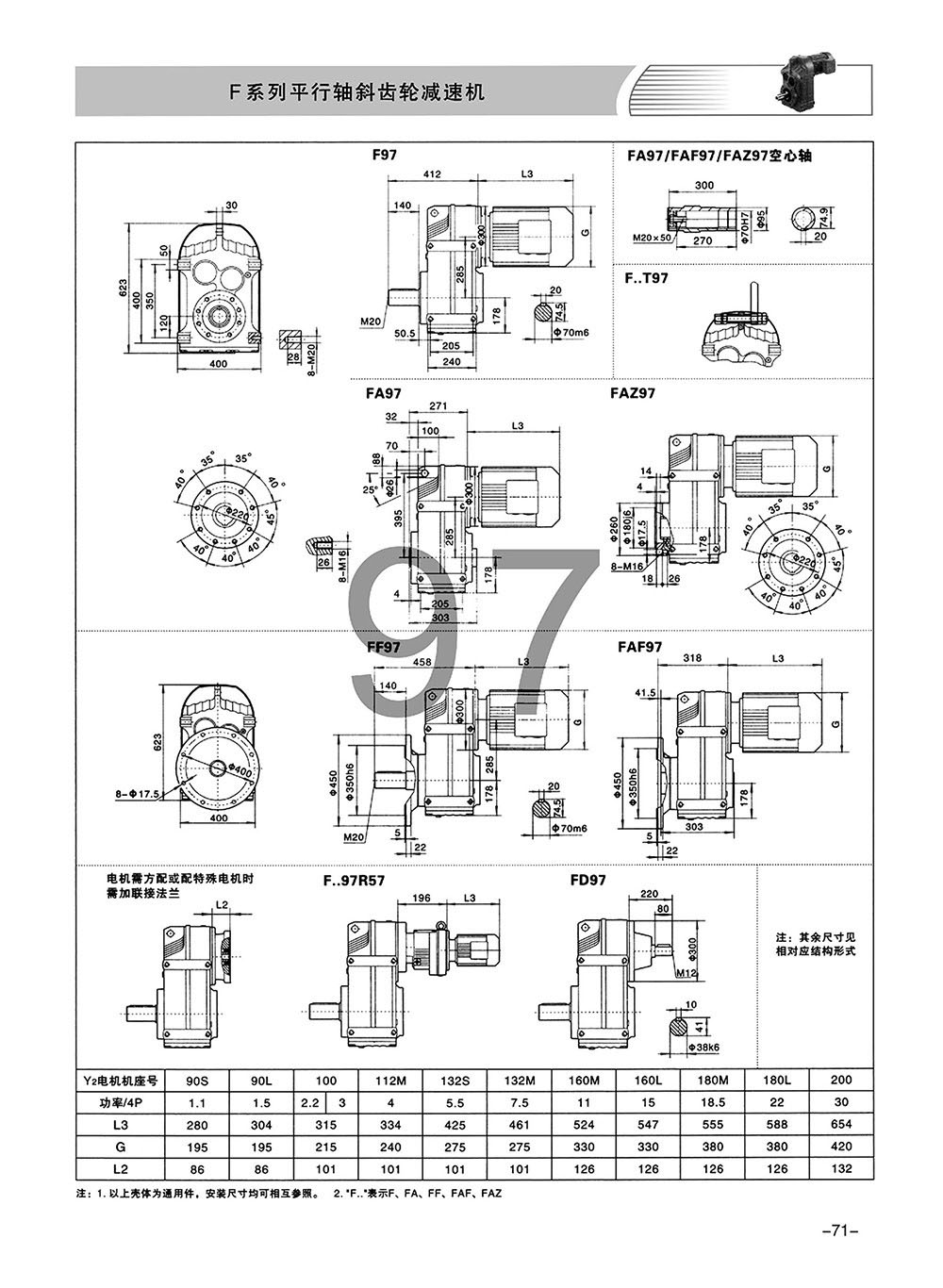

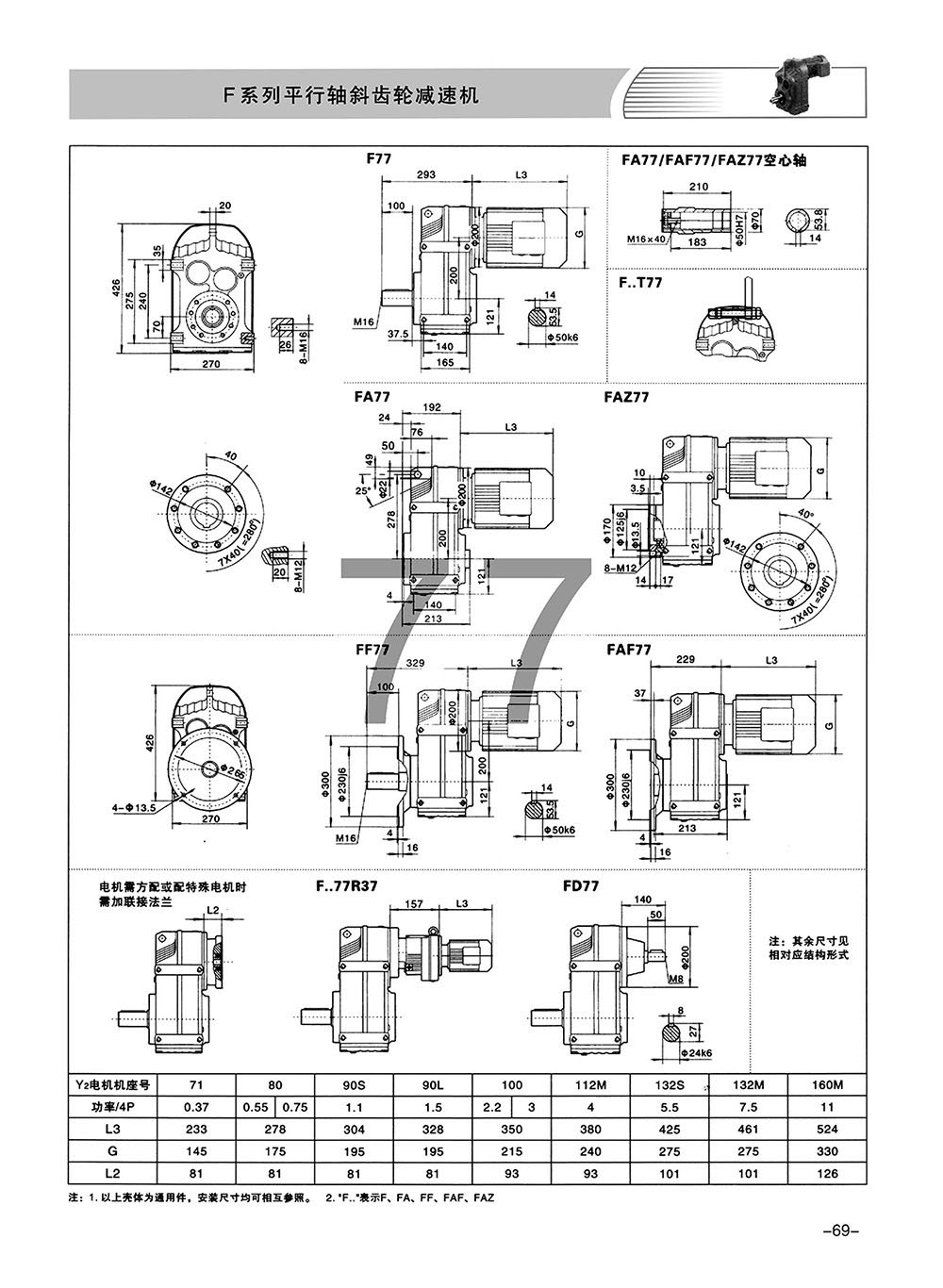

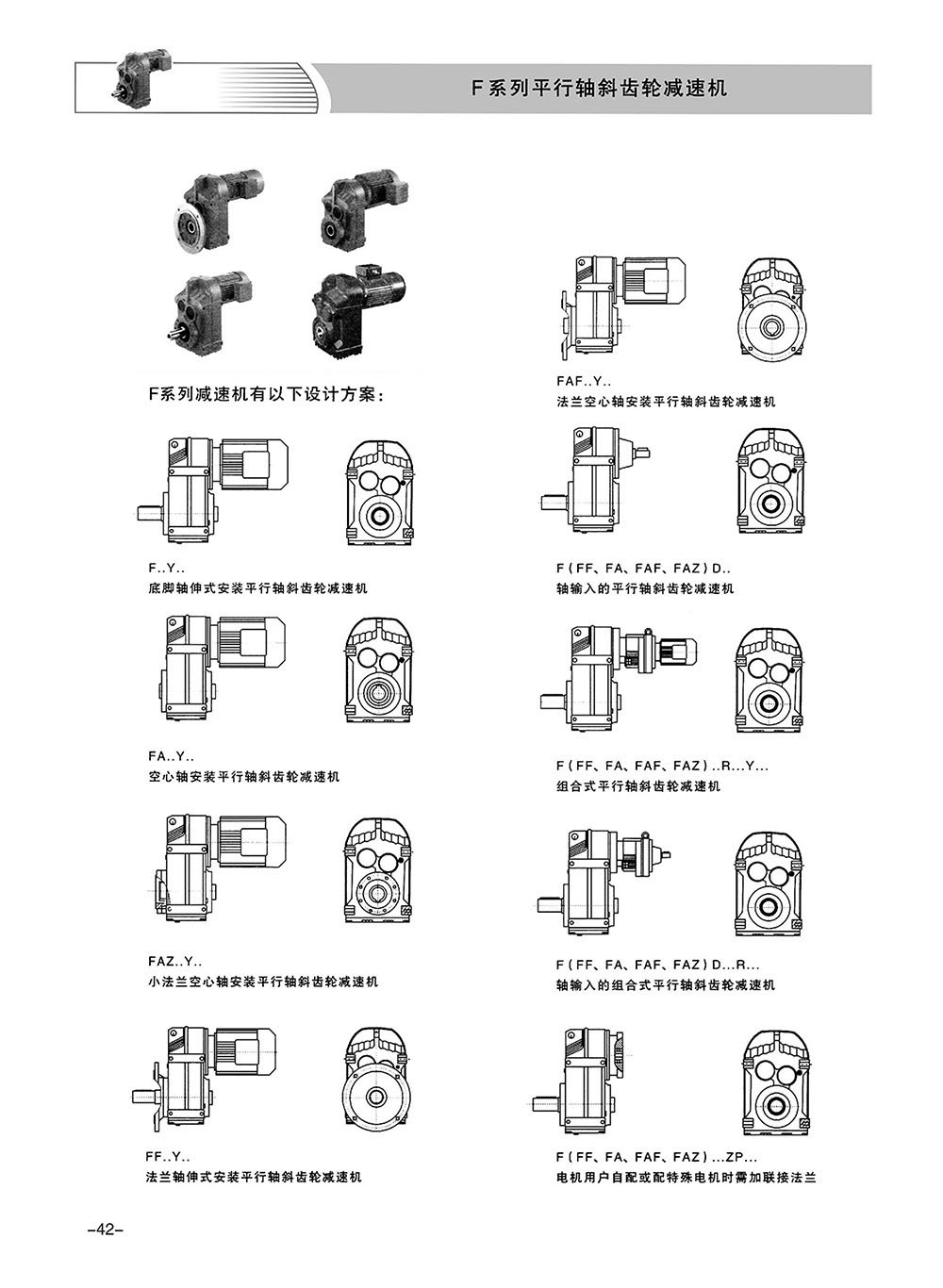

Mounting Options: Foot mounting, hollow shaft mounting, flange mounting, torque arm mounting, and small flange mounting.
Rotation Direction: Basic two-stage models have the same input and output rotation direction, while three-stage models are opposite. For F/R combinations, consult separately.
Output Options: Hollow shaft or solid shaft output.
Average Efficiency: Two-stage 96%, three-stage 94%, F/R combination average 85%.

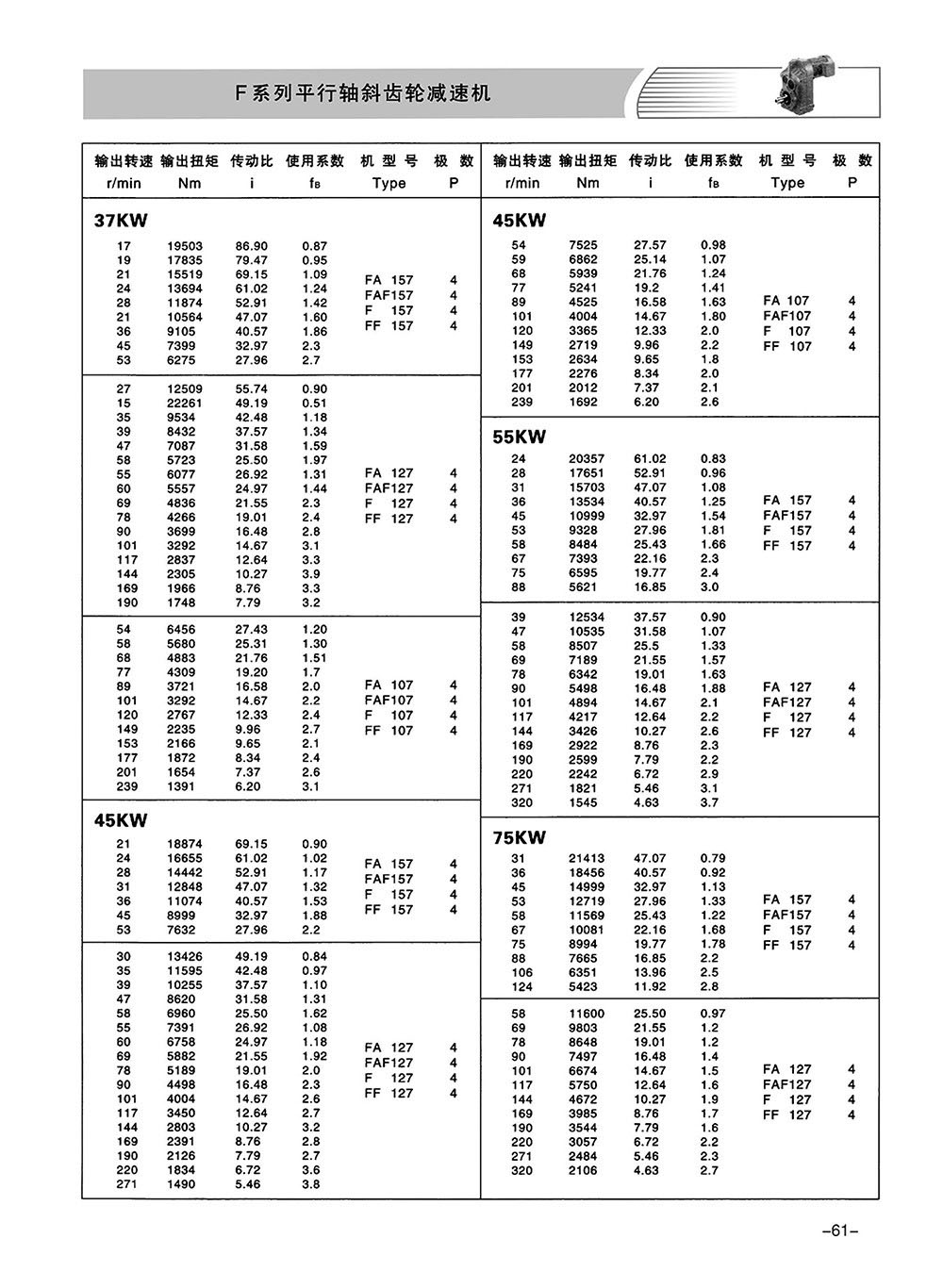

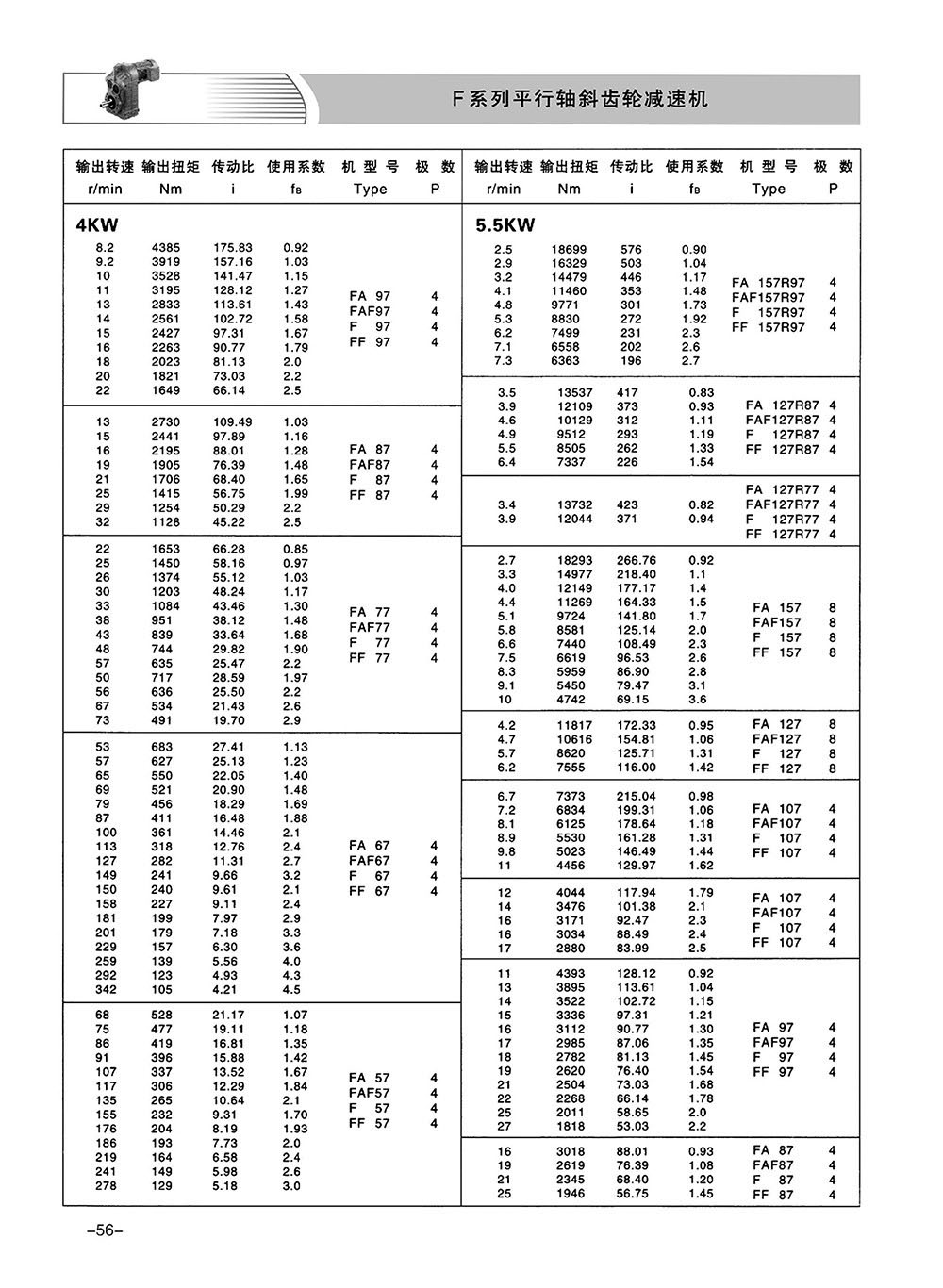

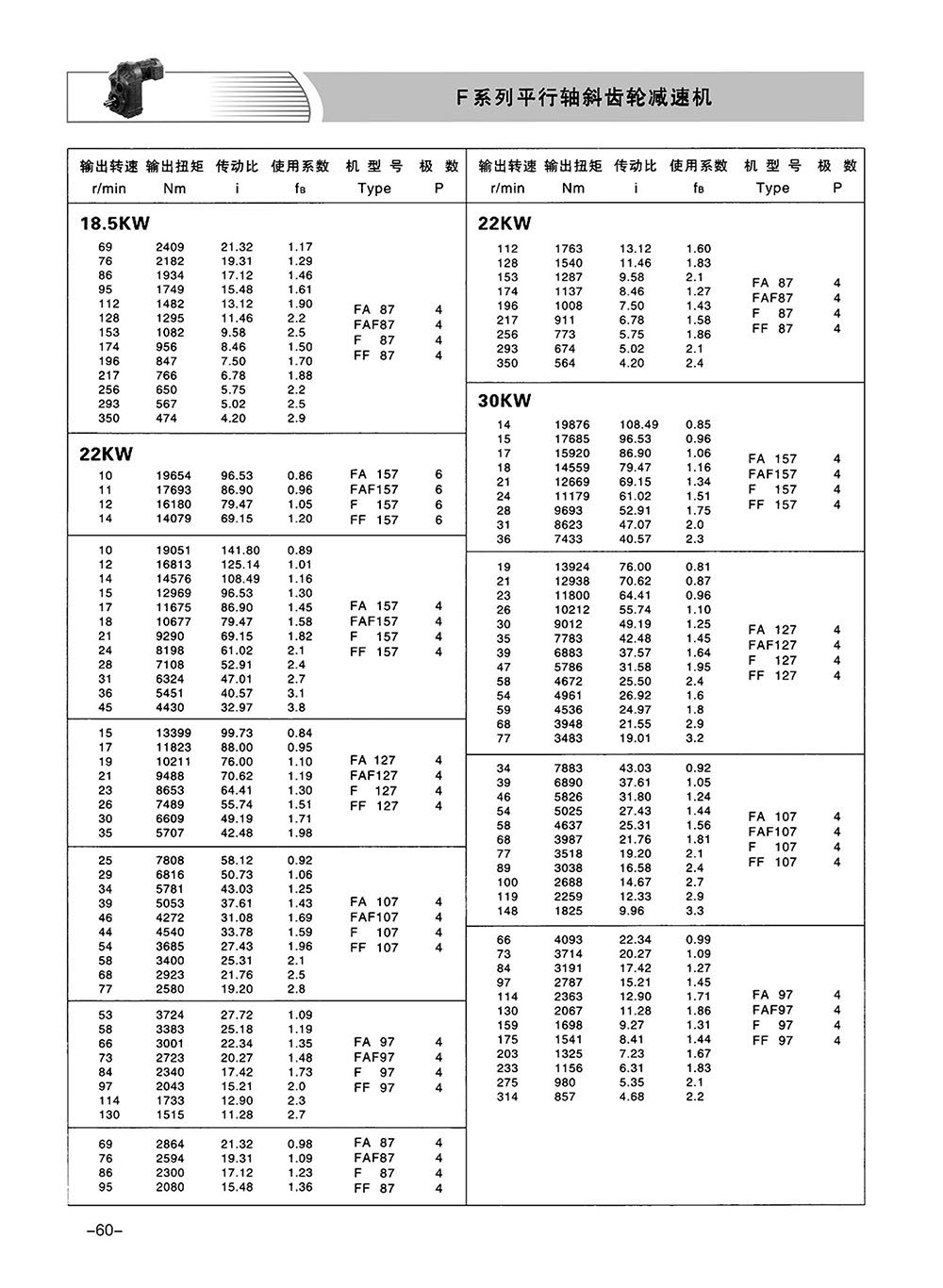

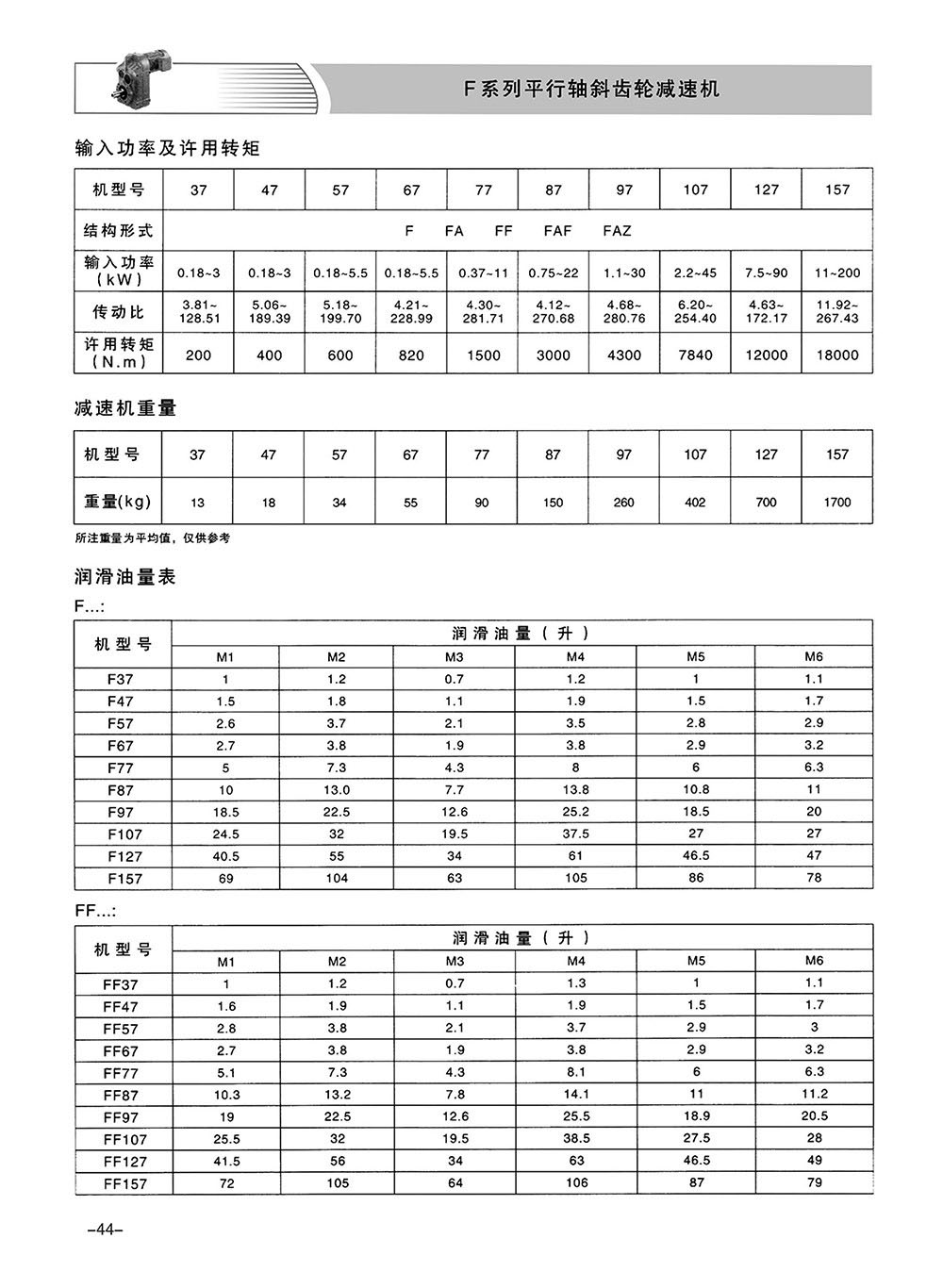

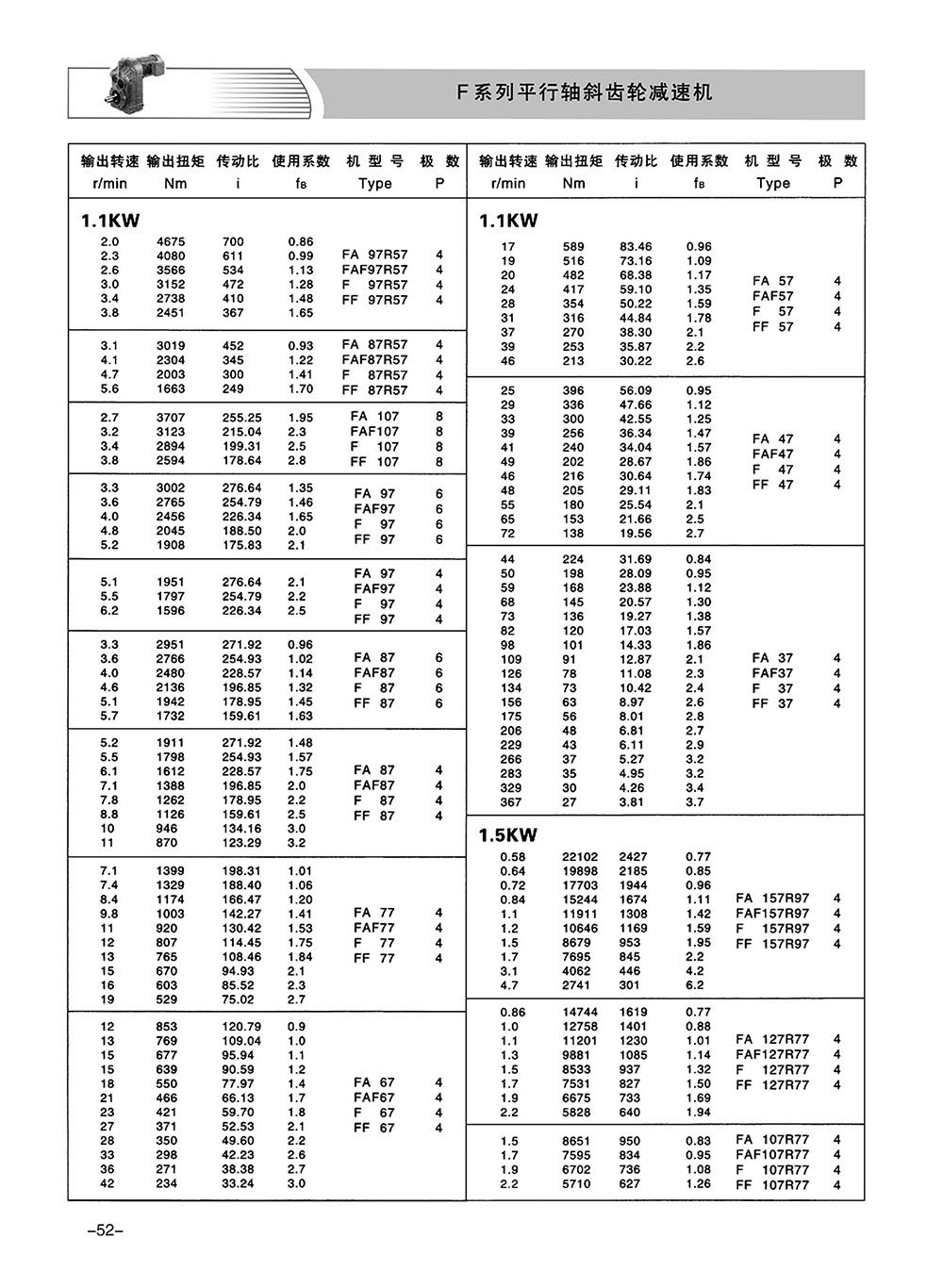

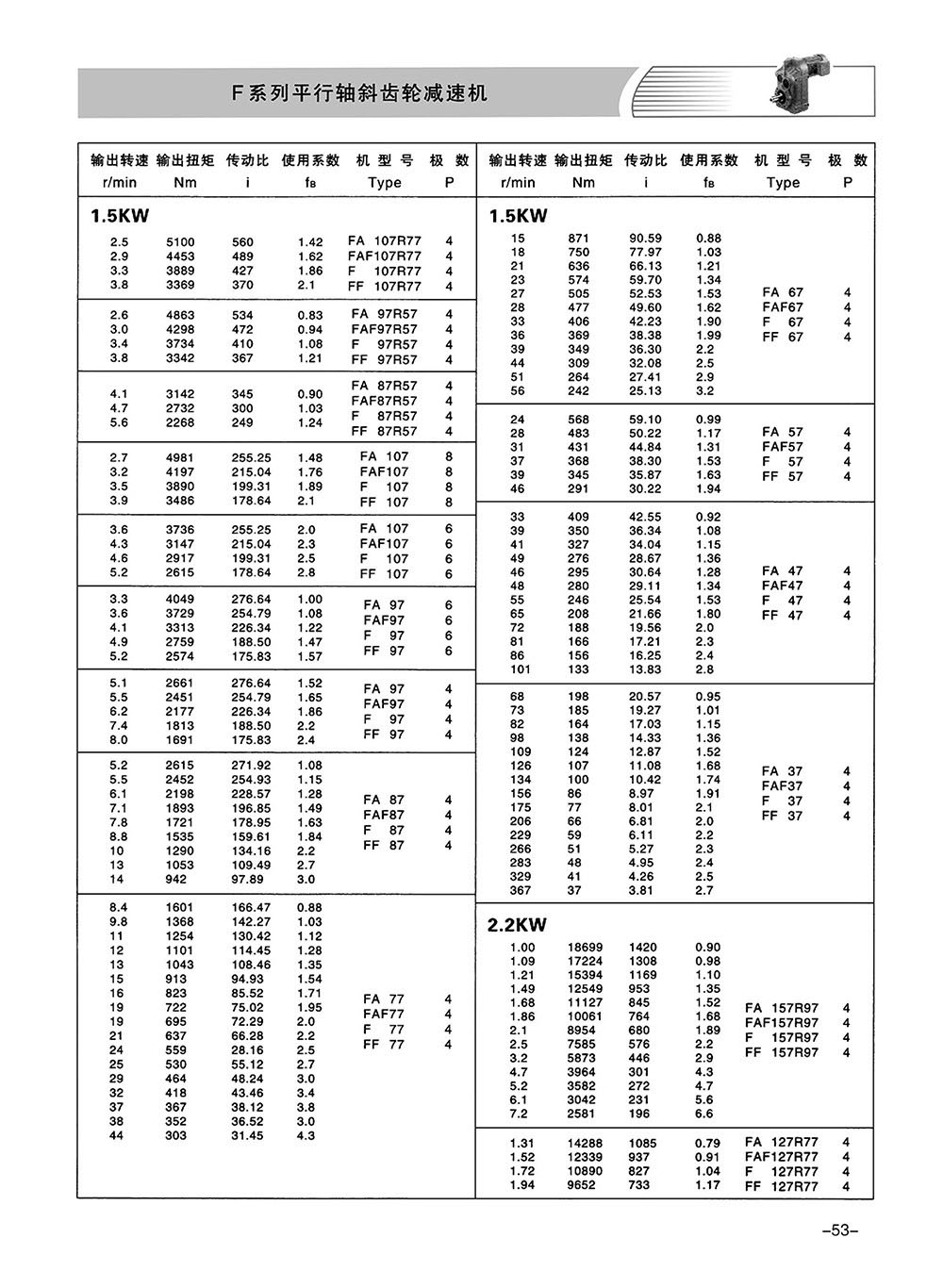

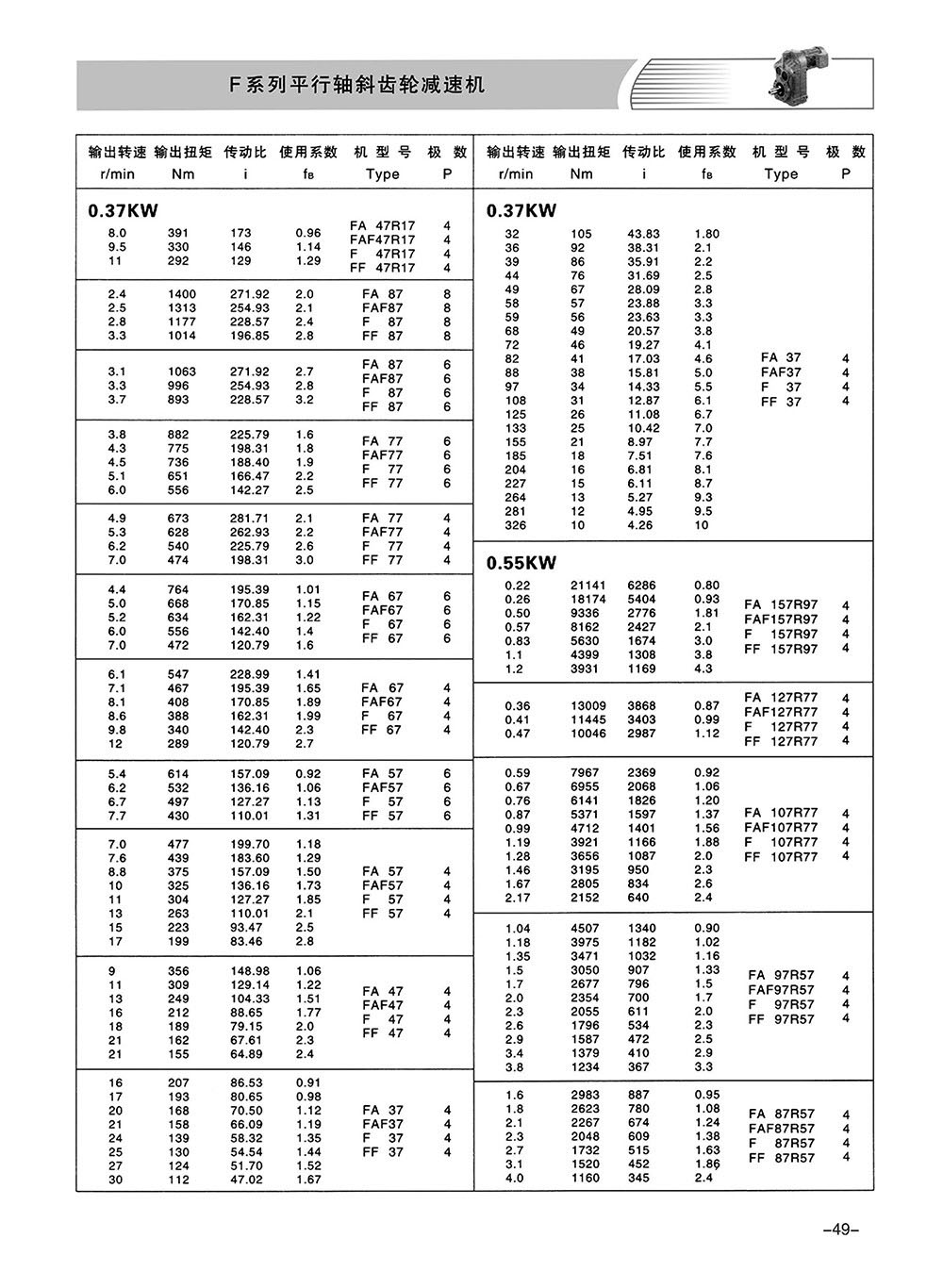

Technical Parameters:
Speed Ratio Range: Basic type 3.81–281.71, F/R combination up to 31,434.
Torque Range: 200–18,000 Nm.
Power Range: 0.18–200 kW.
