Product models:

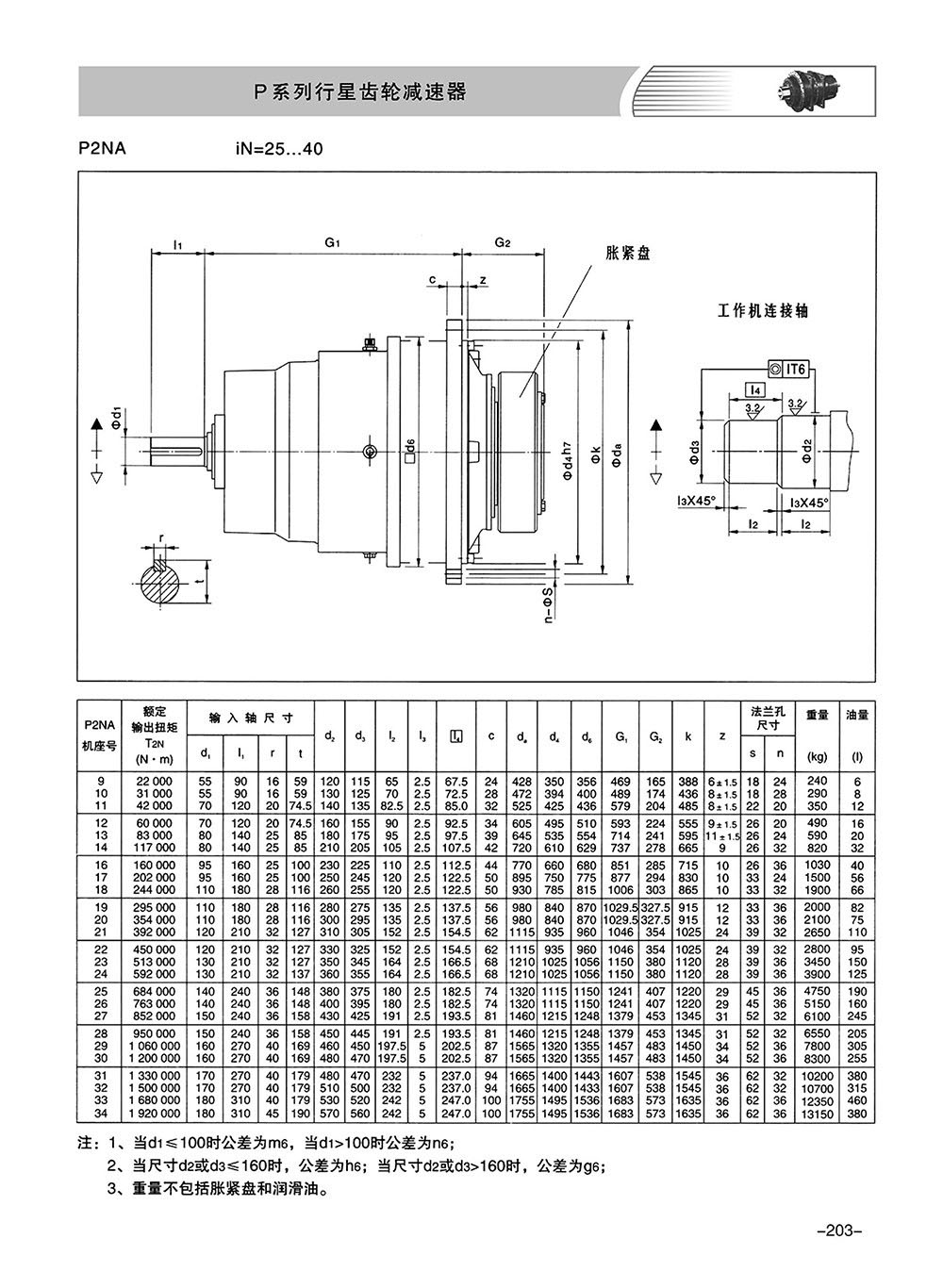

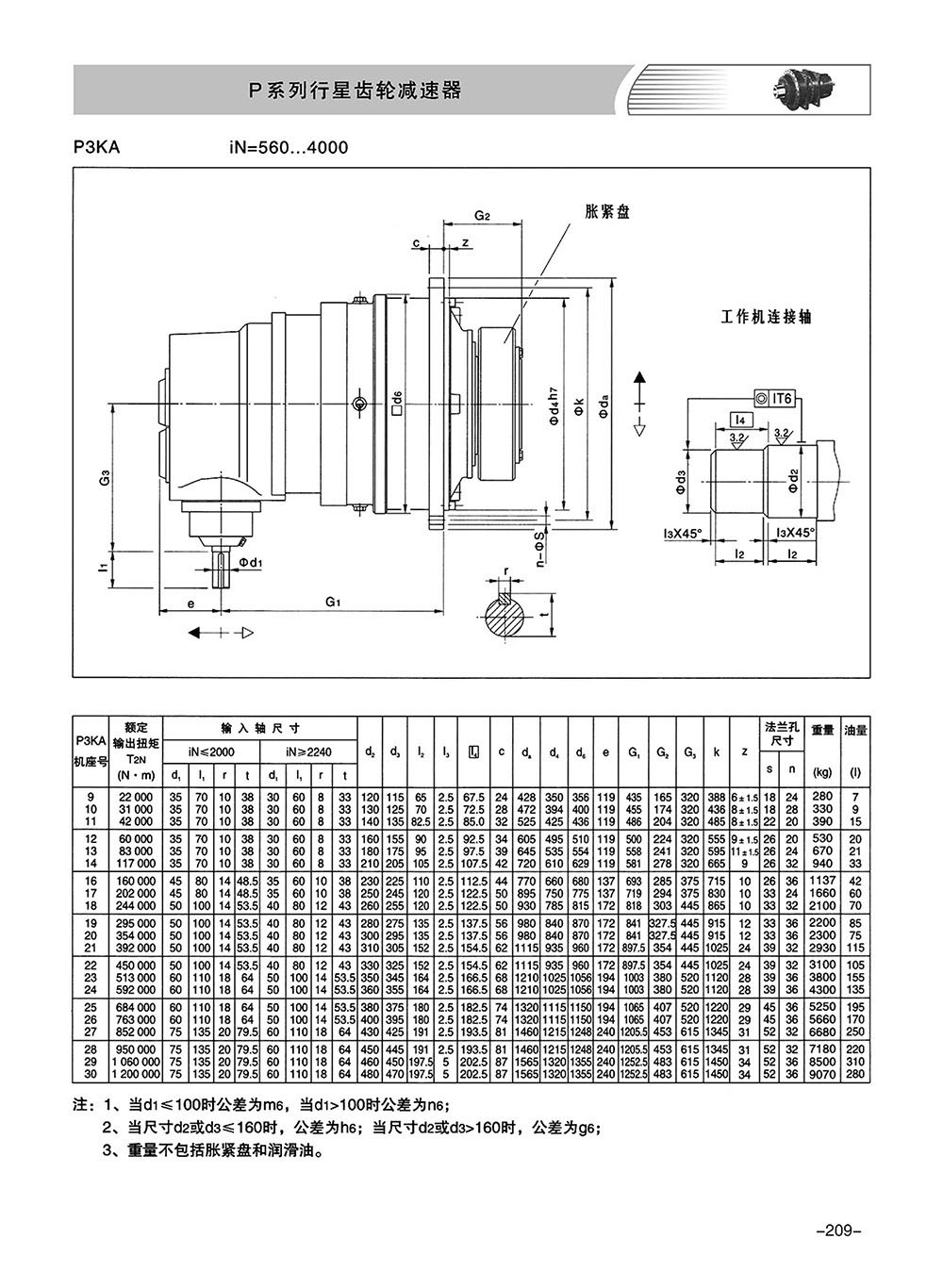

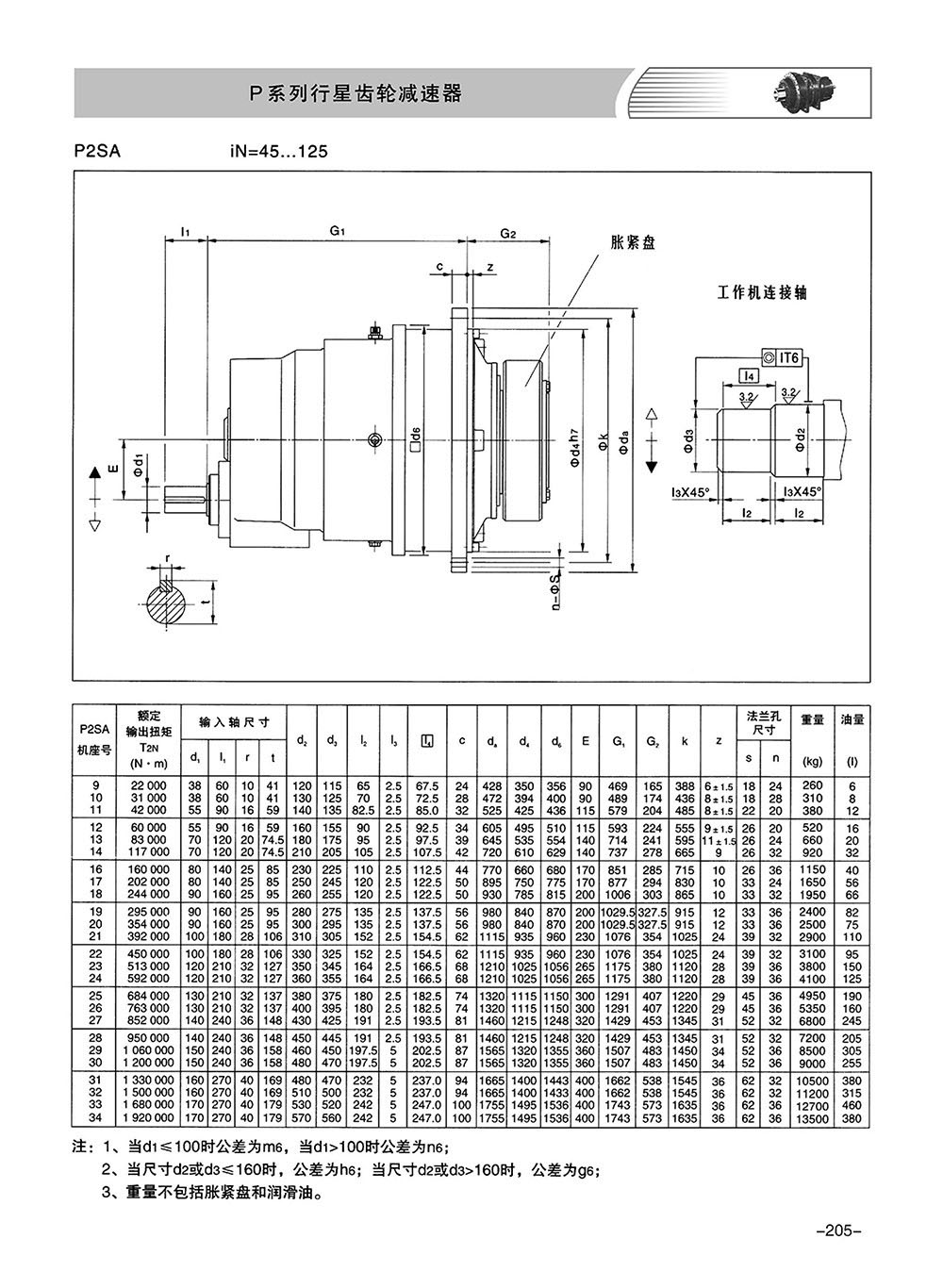

Types: P2NA, P2LA, P2SA, P2KA, P3NA, P3SA, P3KA
Frame sizes: 9~34

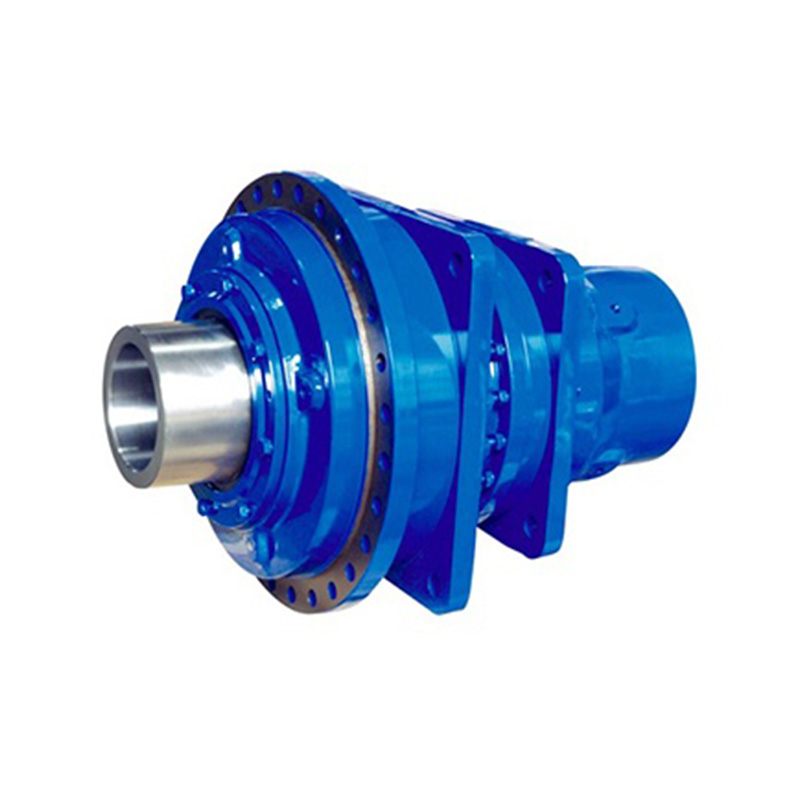

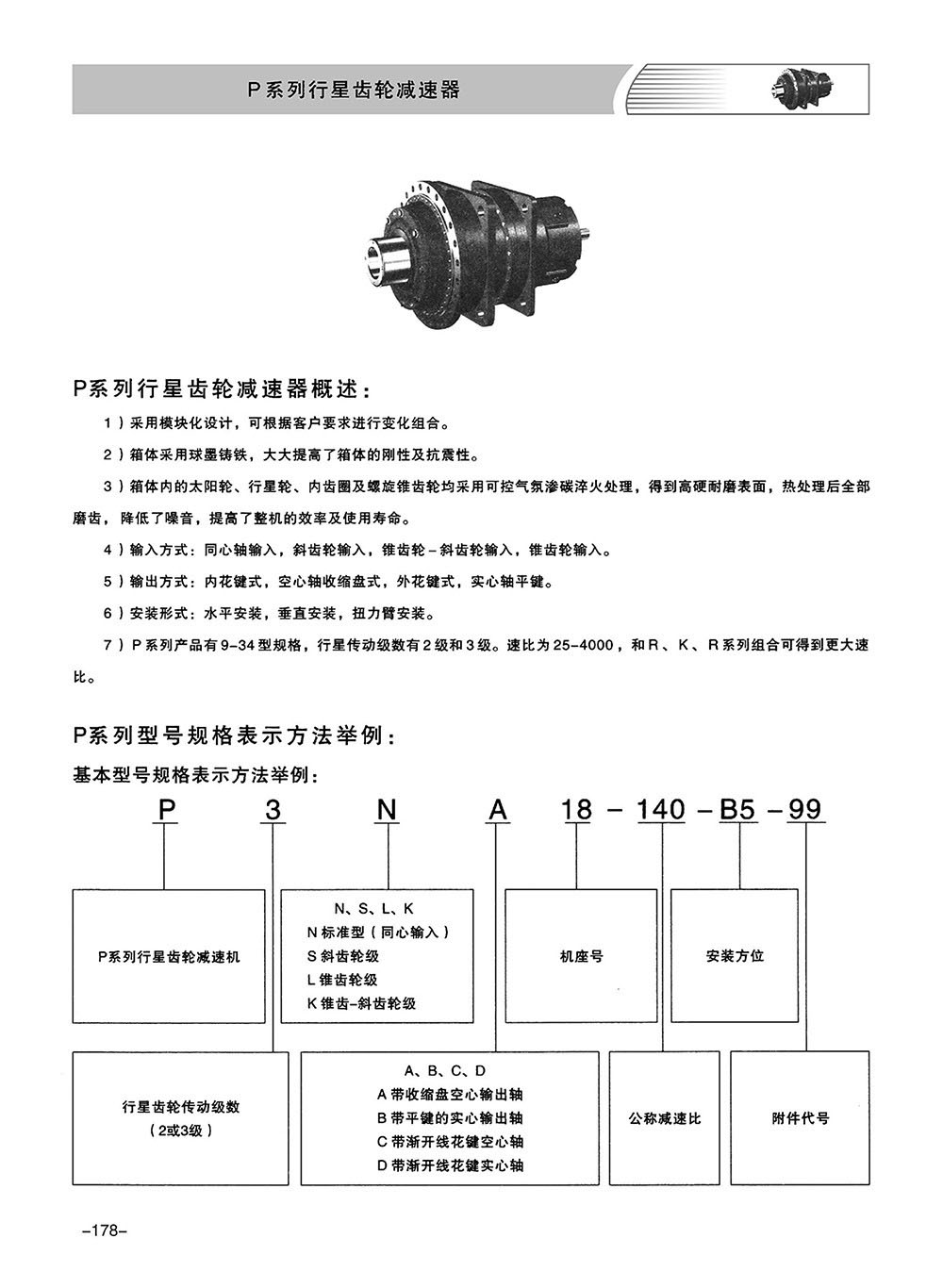

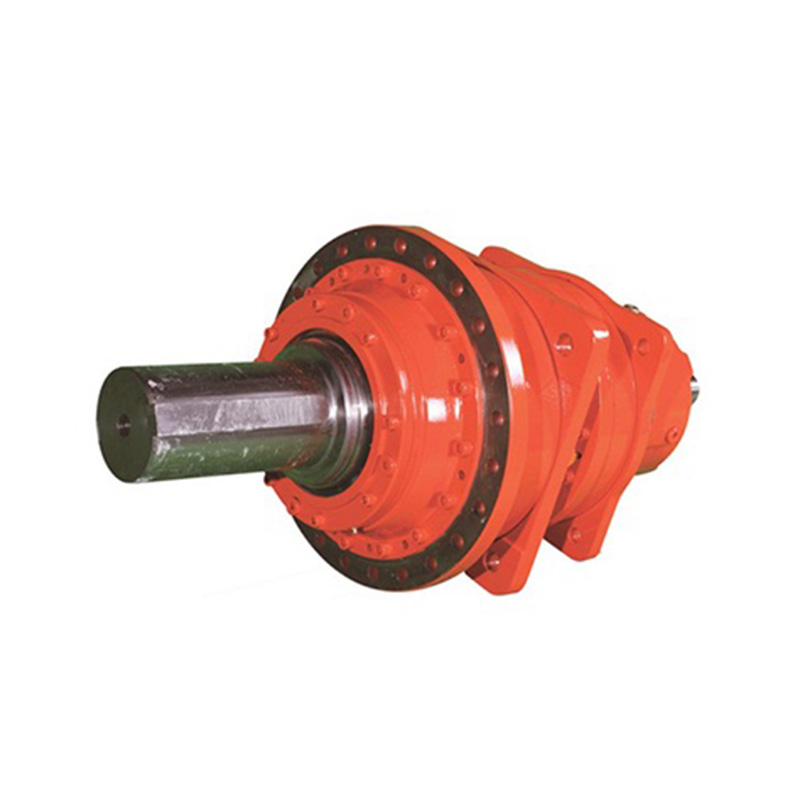

◆ The P series planetary gear reducer adopts involute planetary gear transmission, making reasonable use of internal and external meshing and power distribution. Therefore, it features light weight, compact size, a wide range of transmission ratios, high efficiency, smooth operation, low noise, and strong adaptability.
◆ The housing is made of ductile iron, greatly improving the rigidity and shock resistance of the housing.

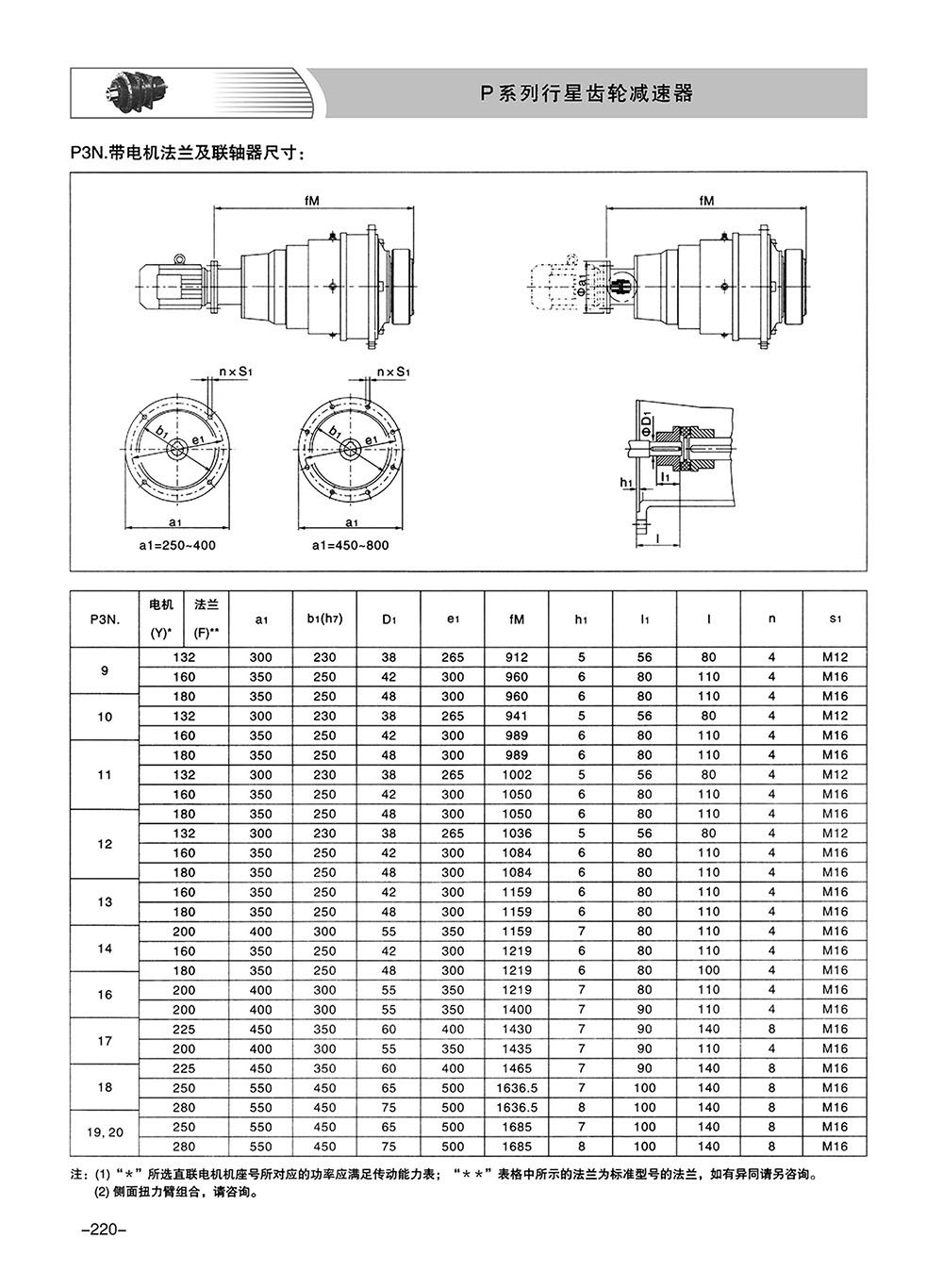

◆ Input types: coaxial input, helical gear input, bevel gear-helical gear input, bevel gear input.

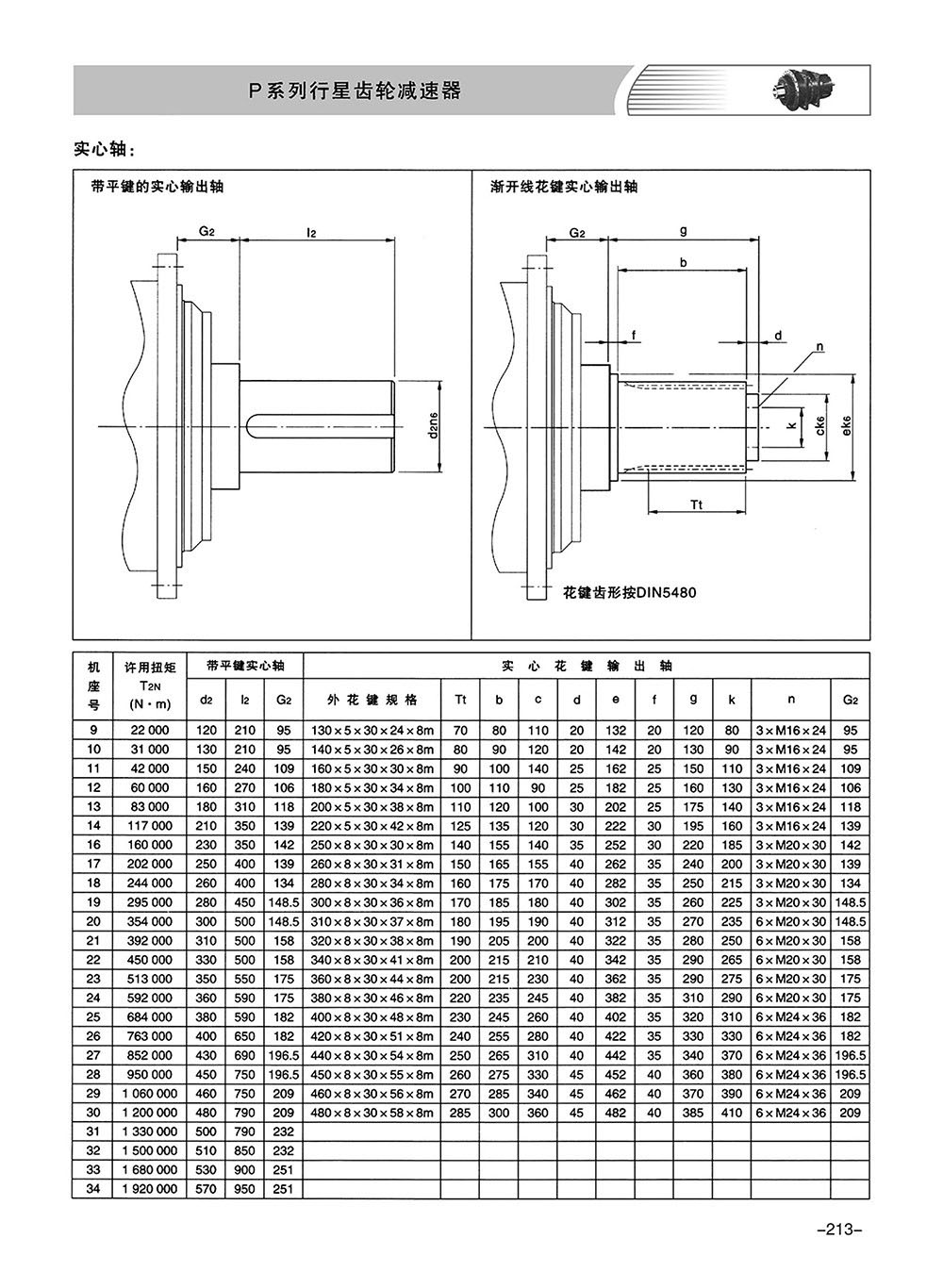

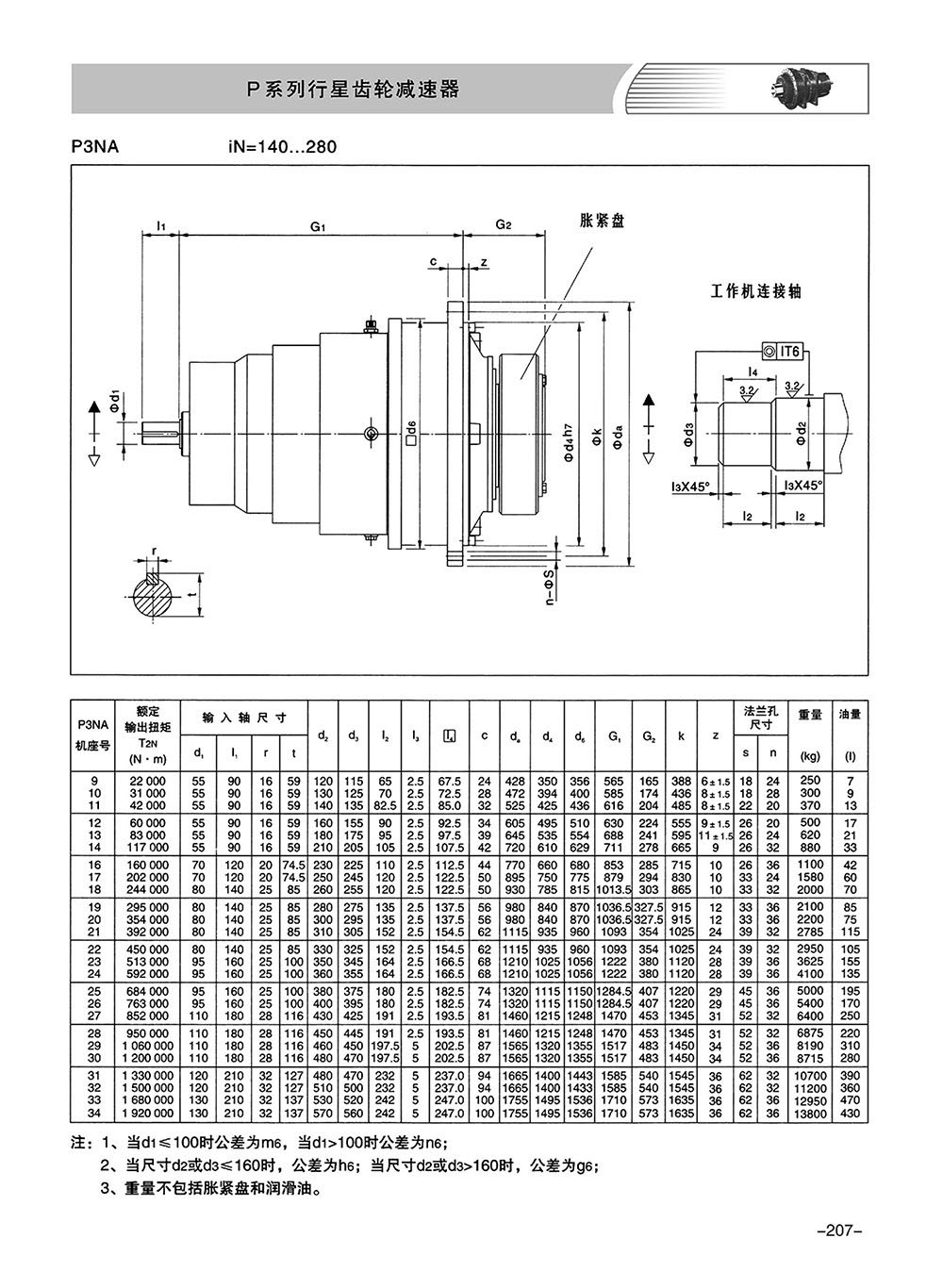

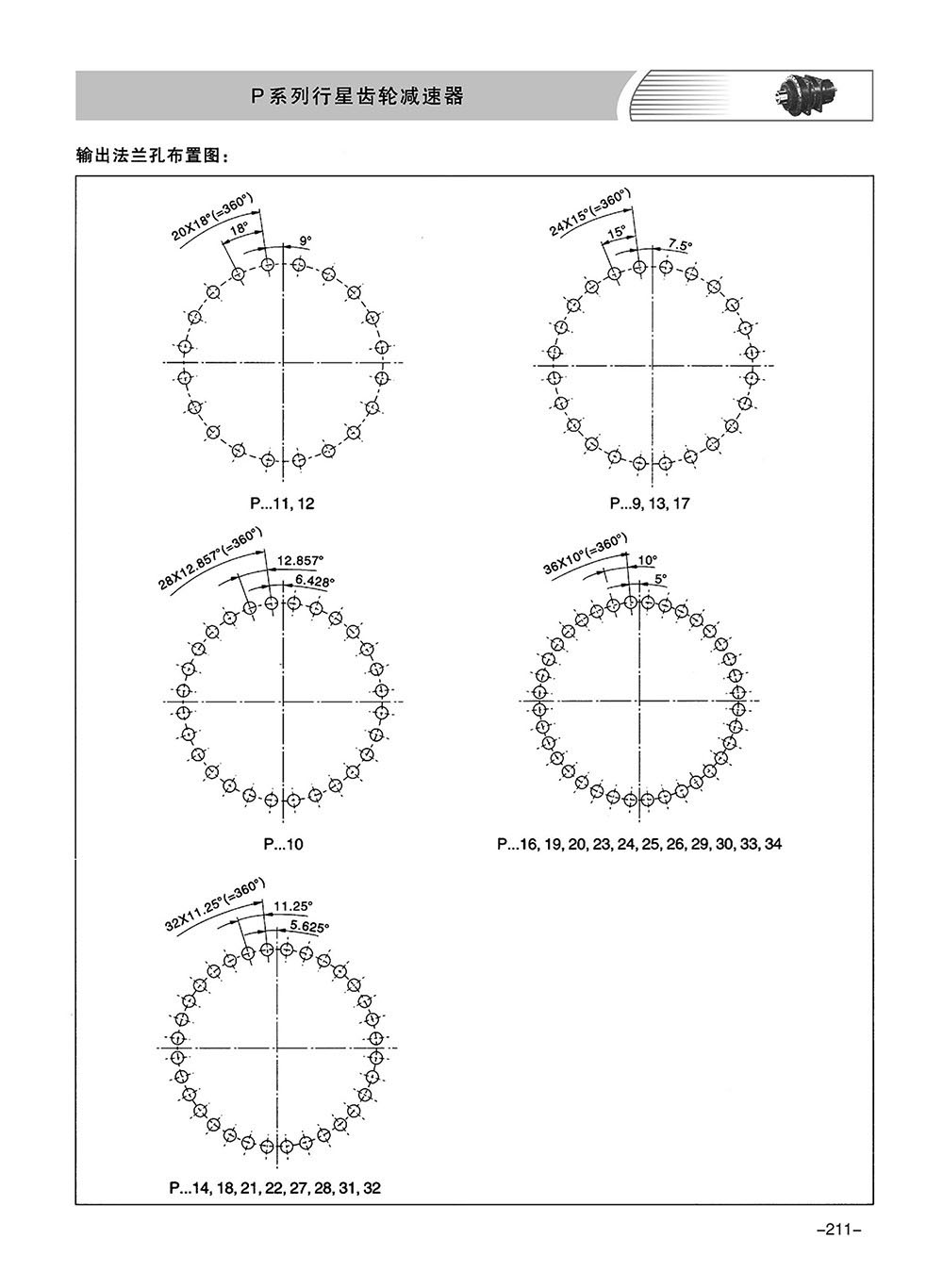

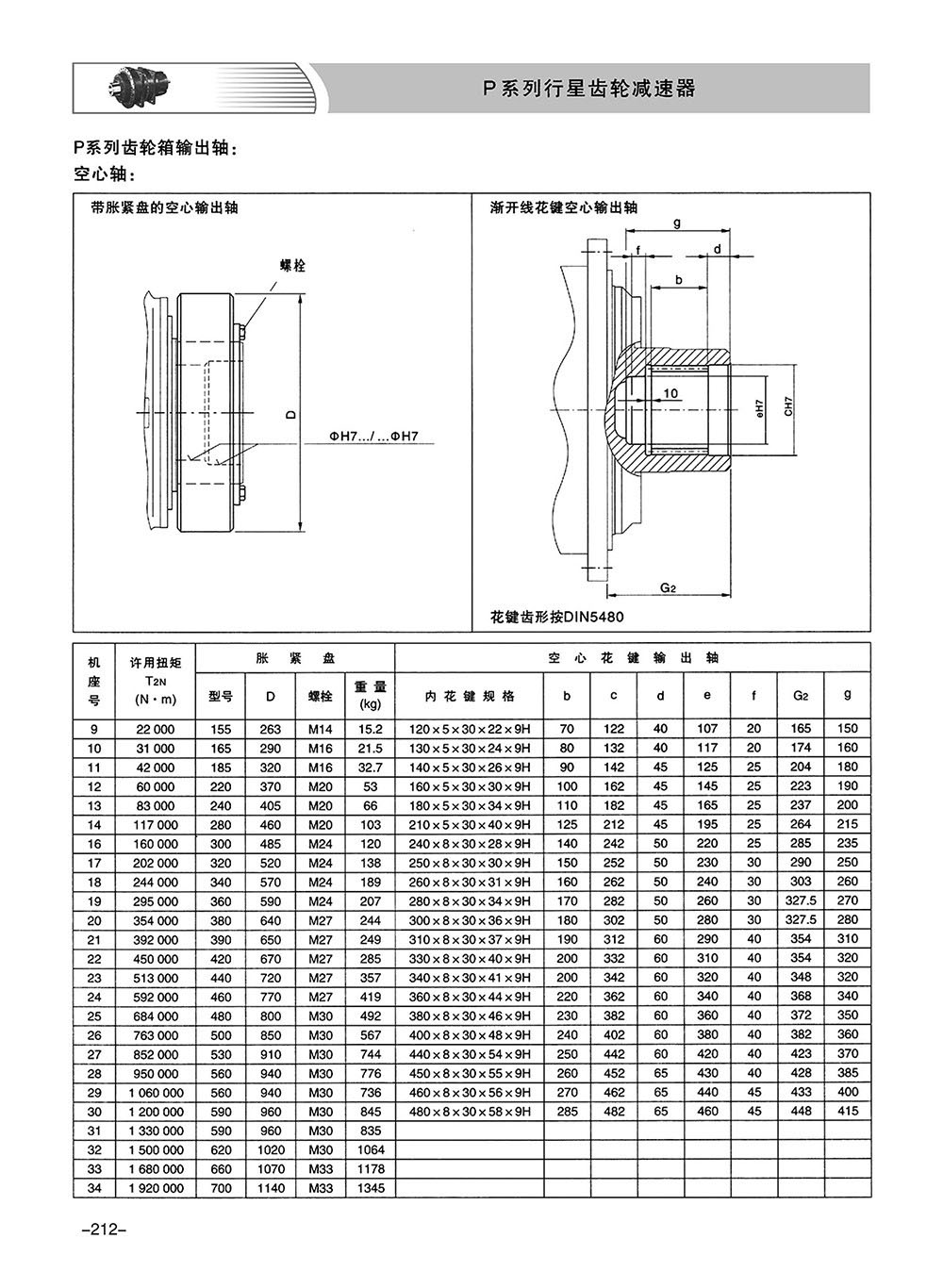

◆ Output types: internal spline, hollow shaft with shrink disc, external spline, solid shaft with key.

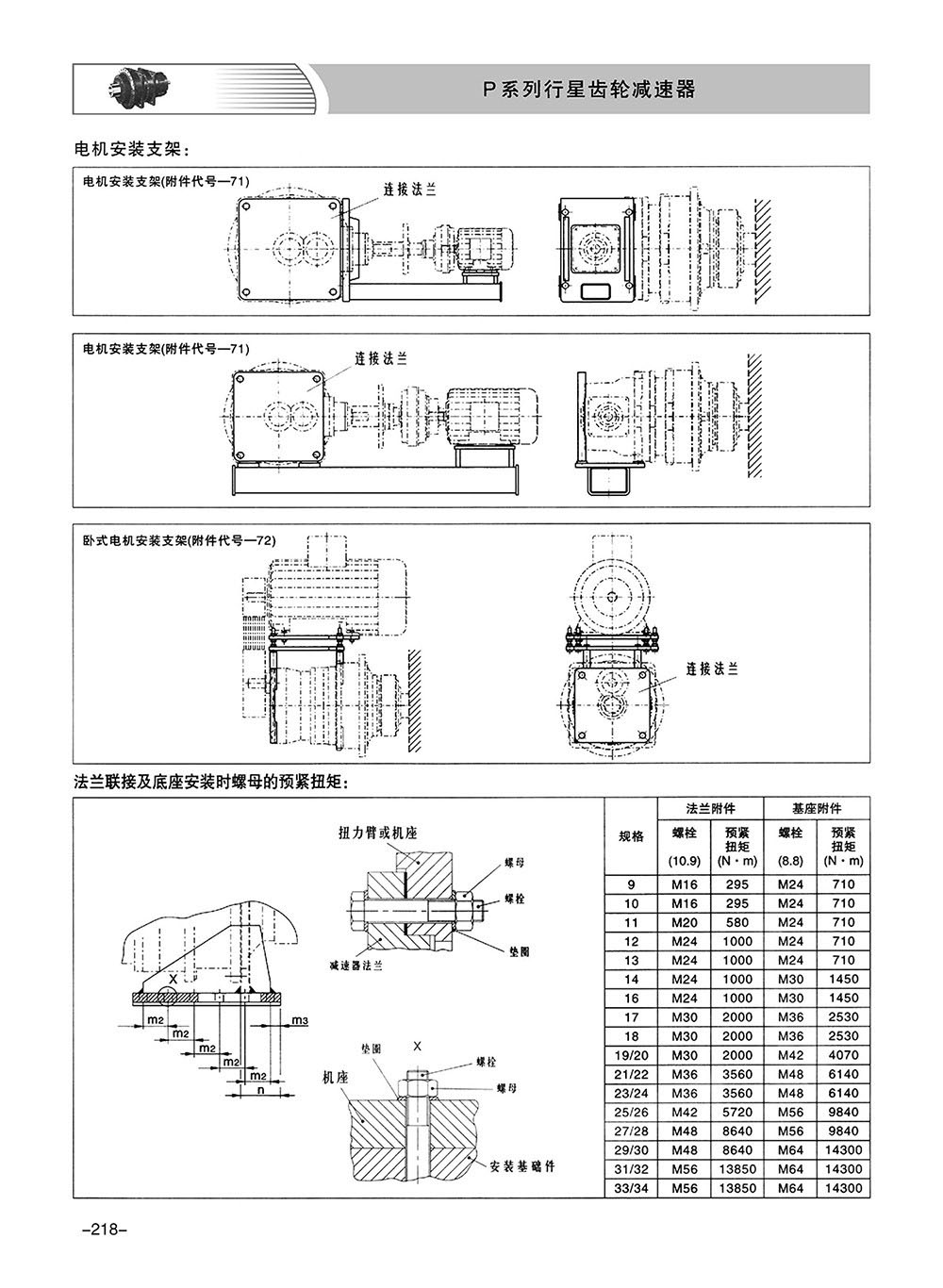

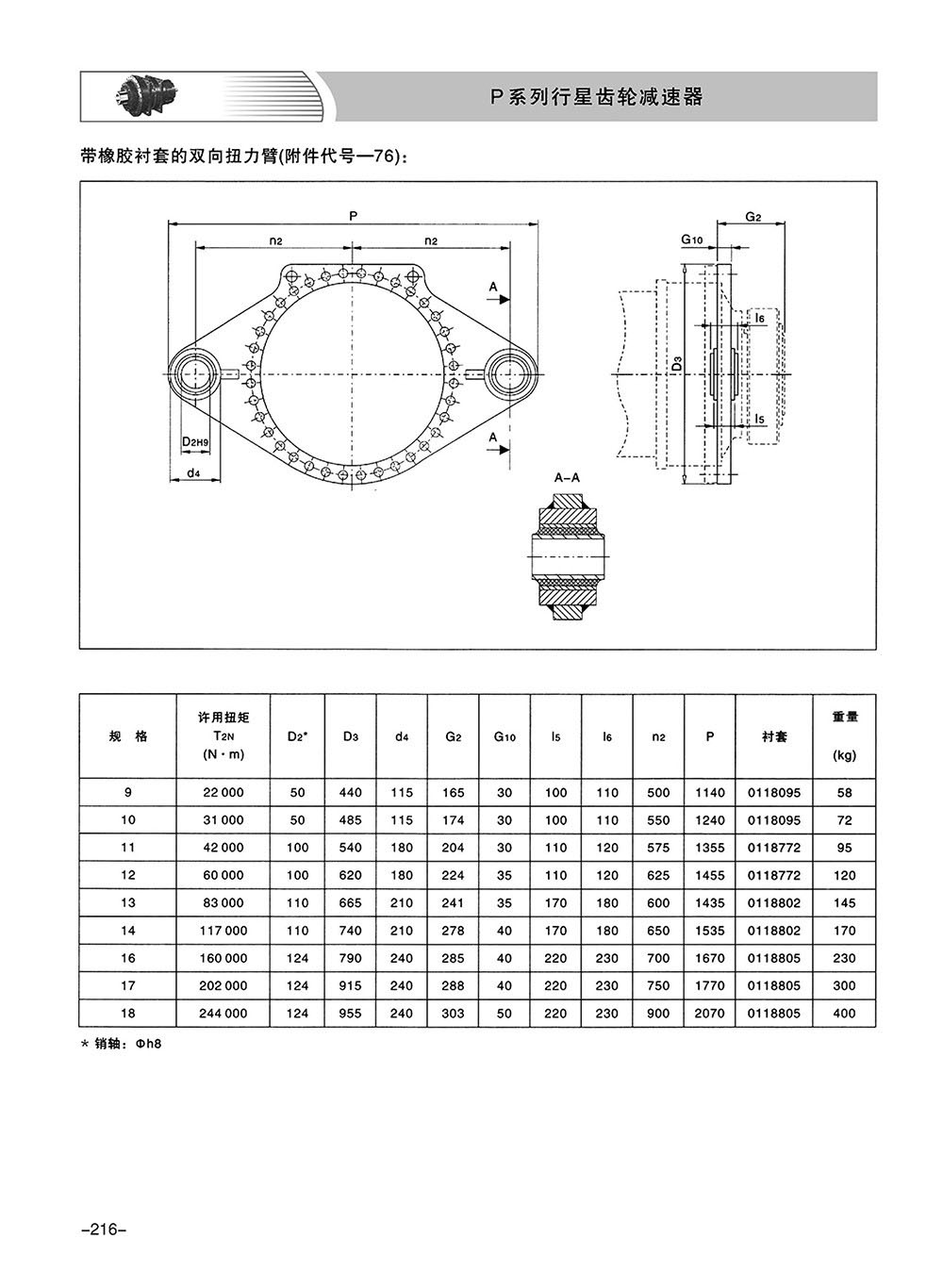

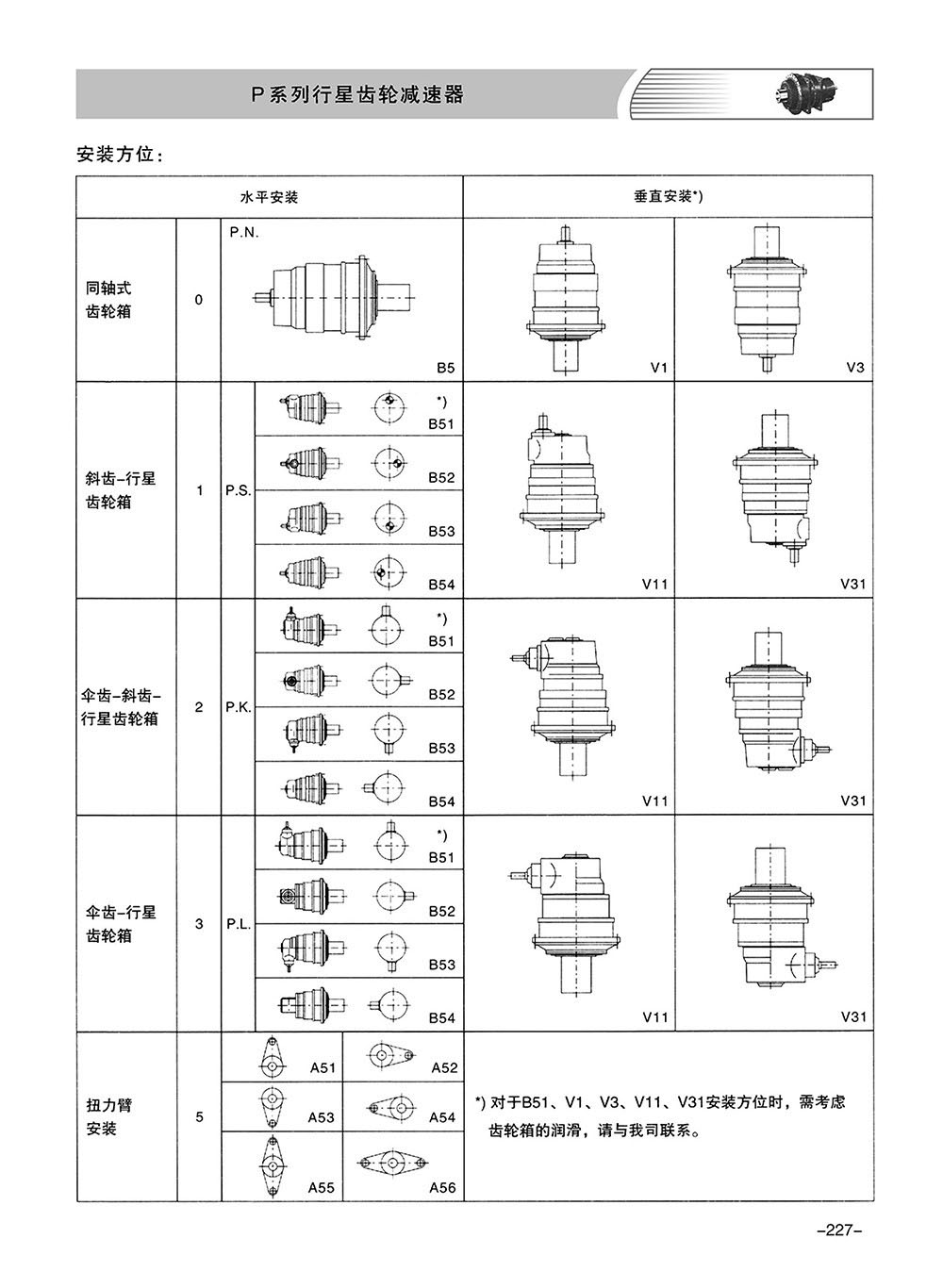

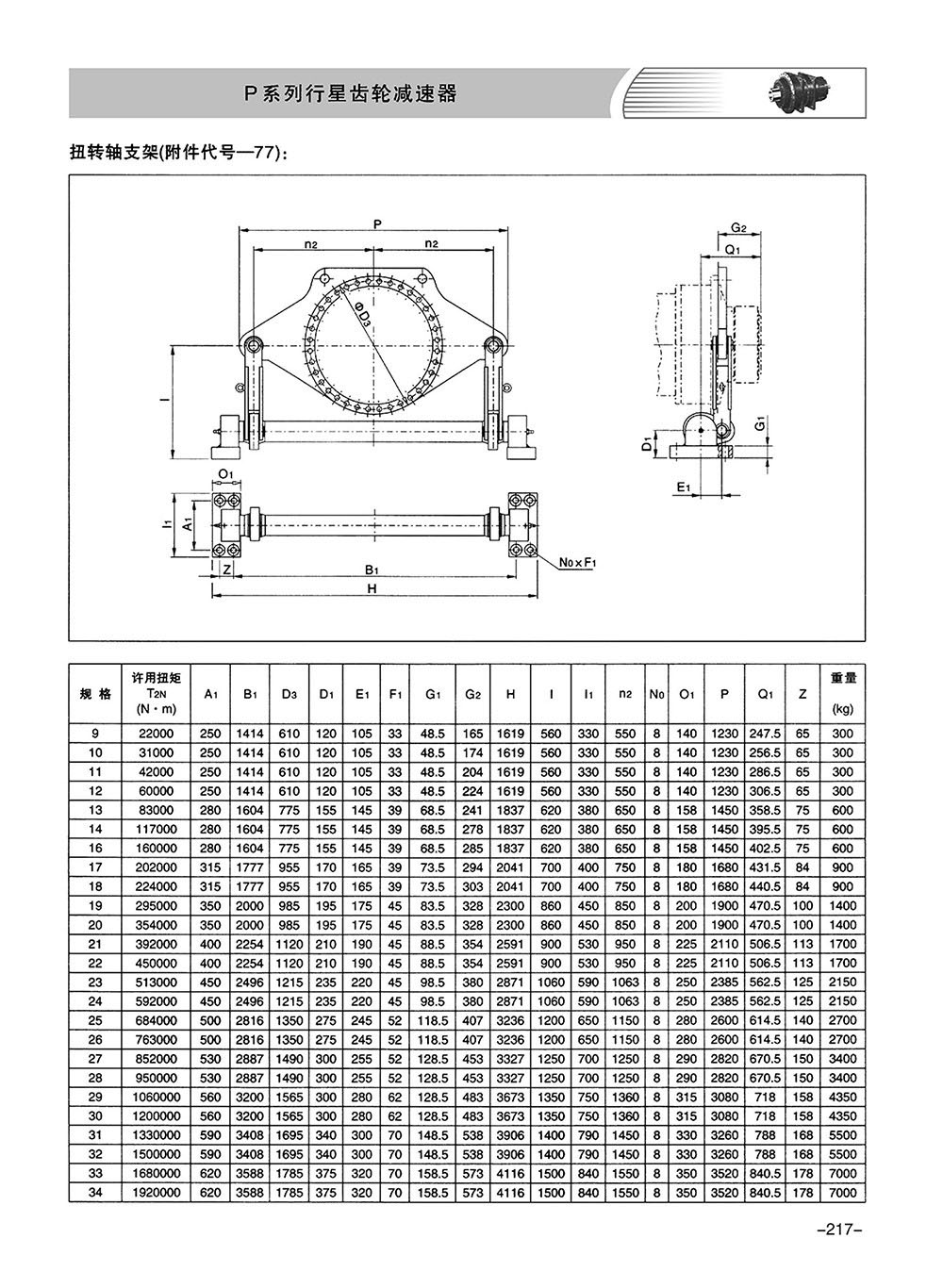

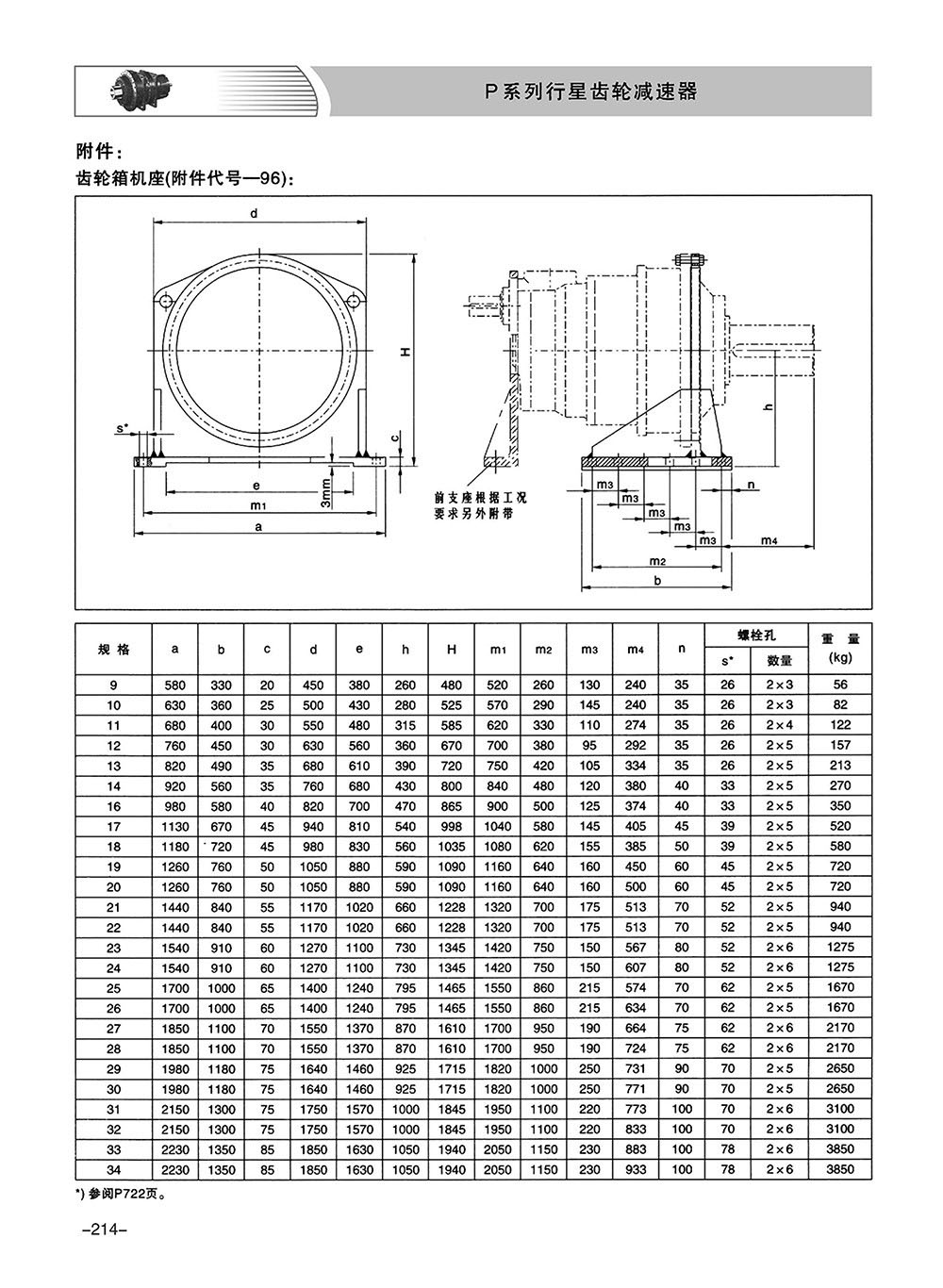

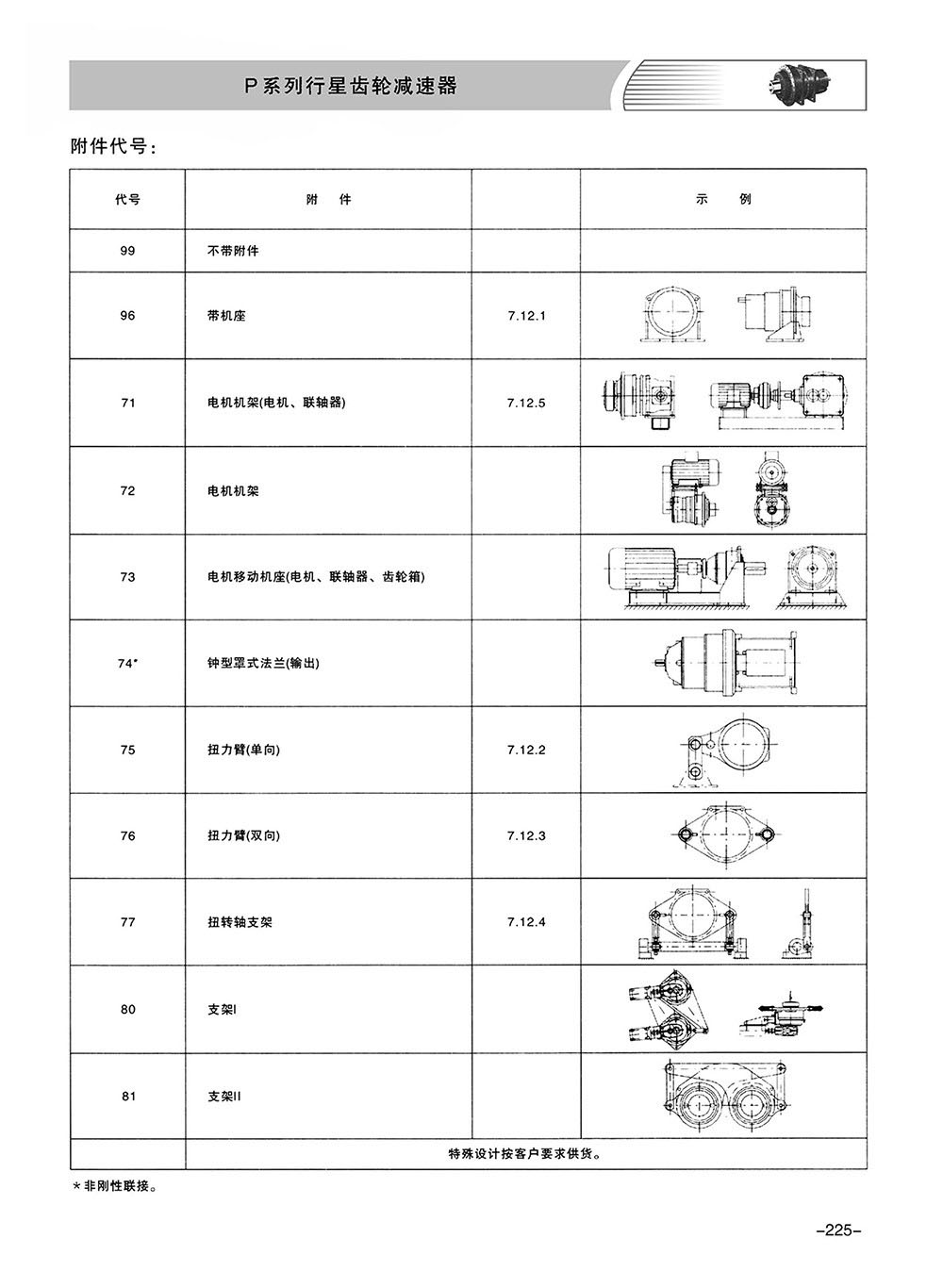

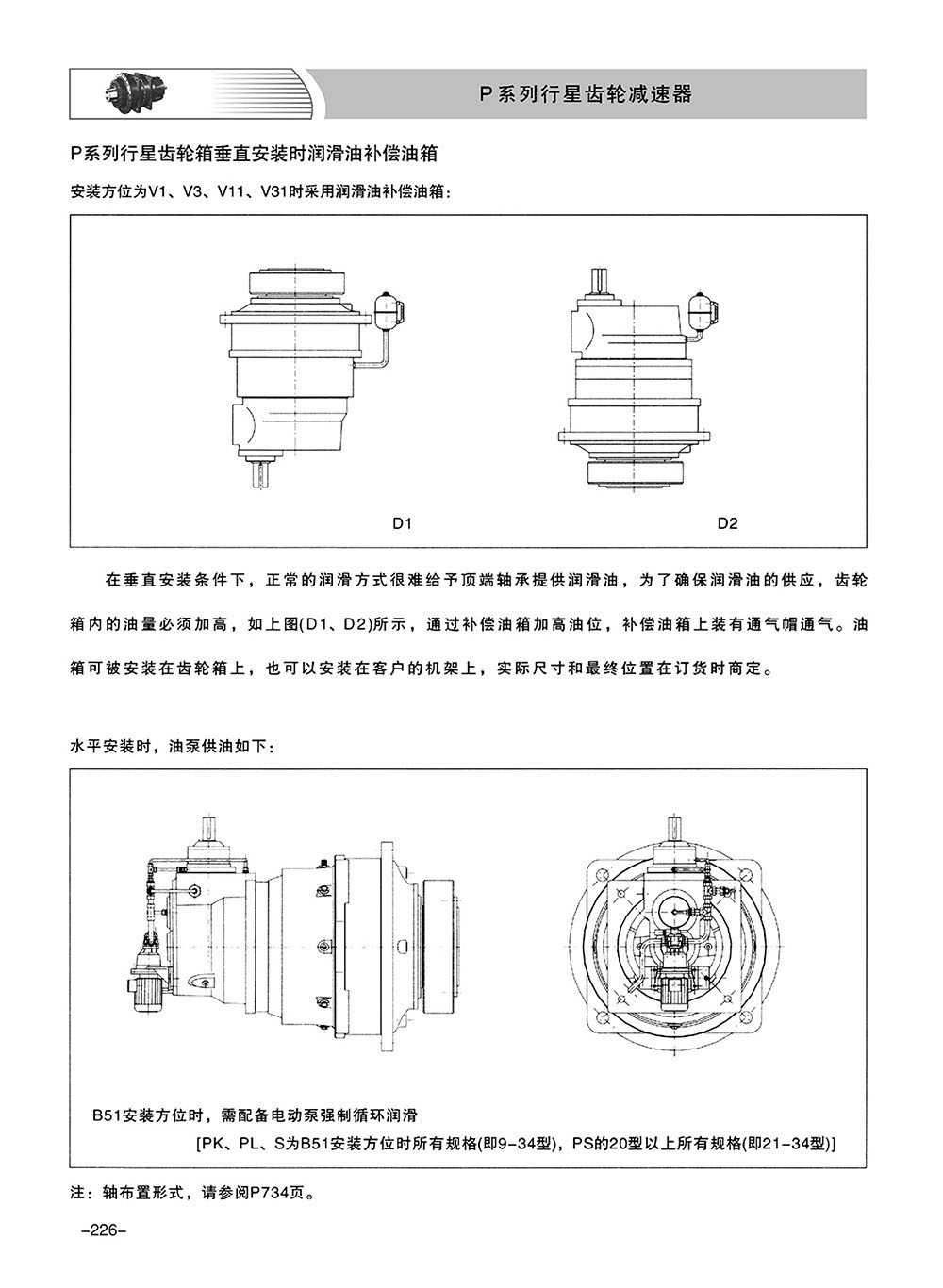

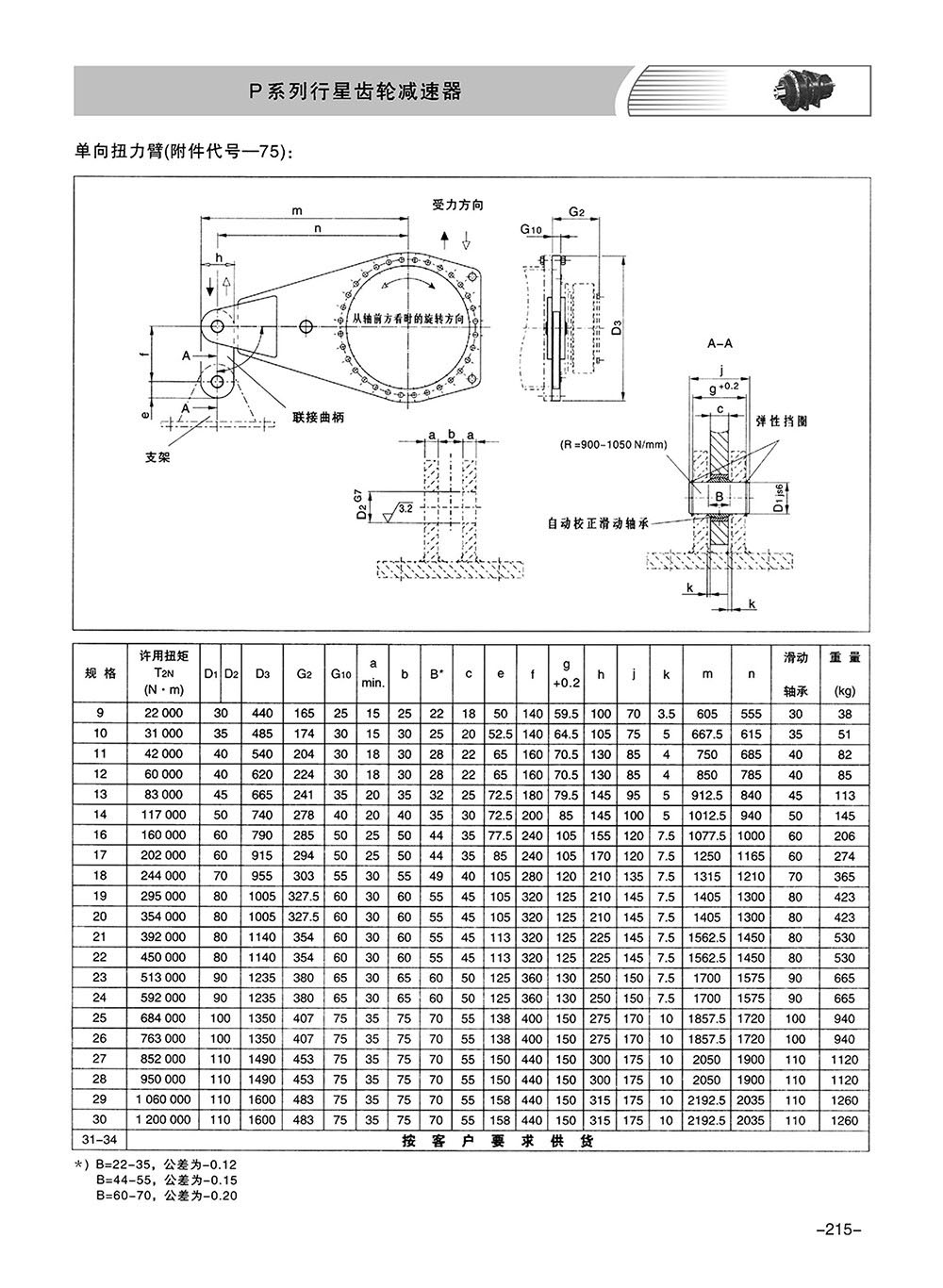

◆ Mounting types: horizontal mounting, vertical mounting, torque arm mounting.

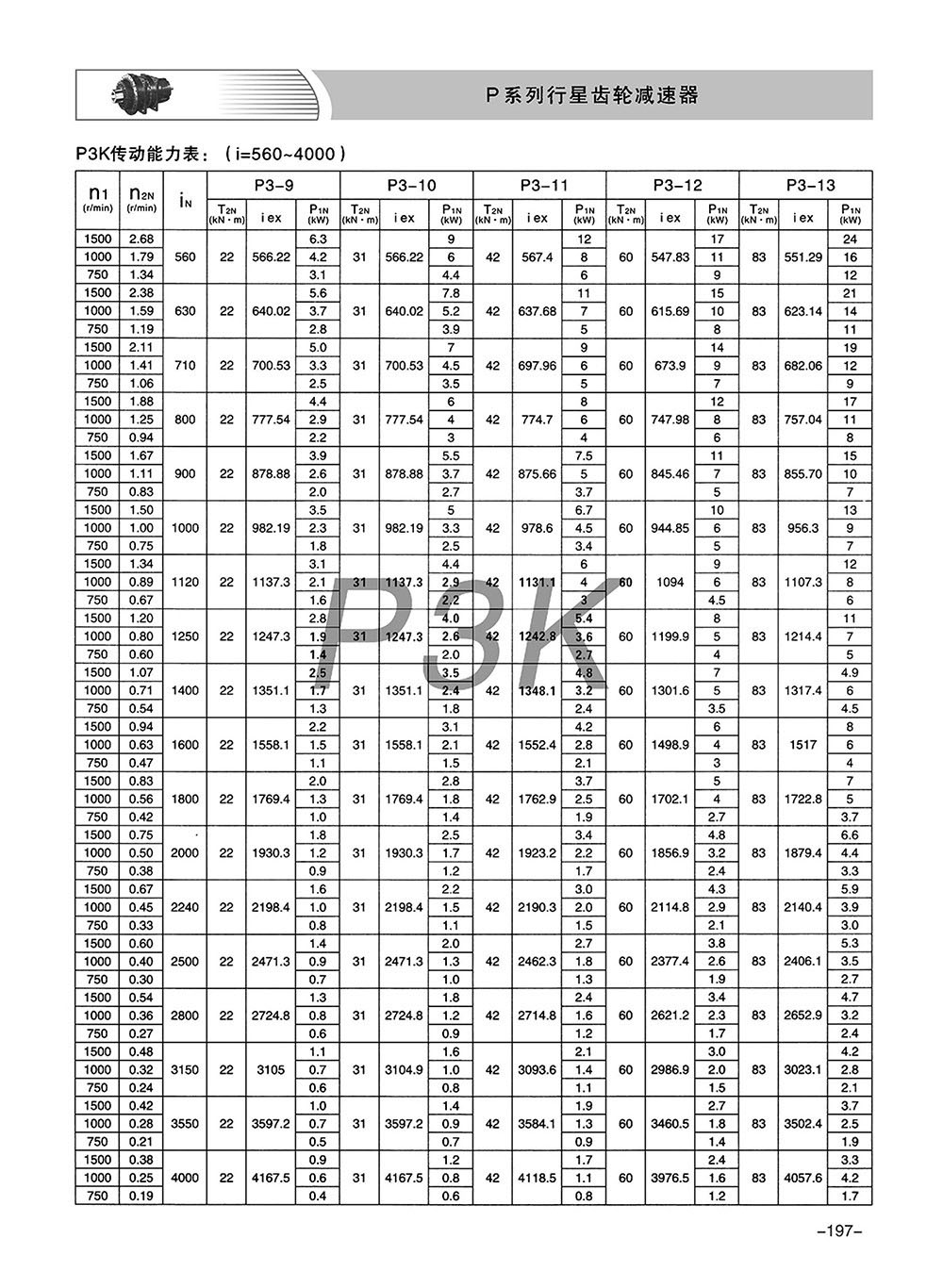

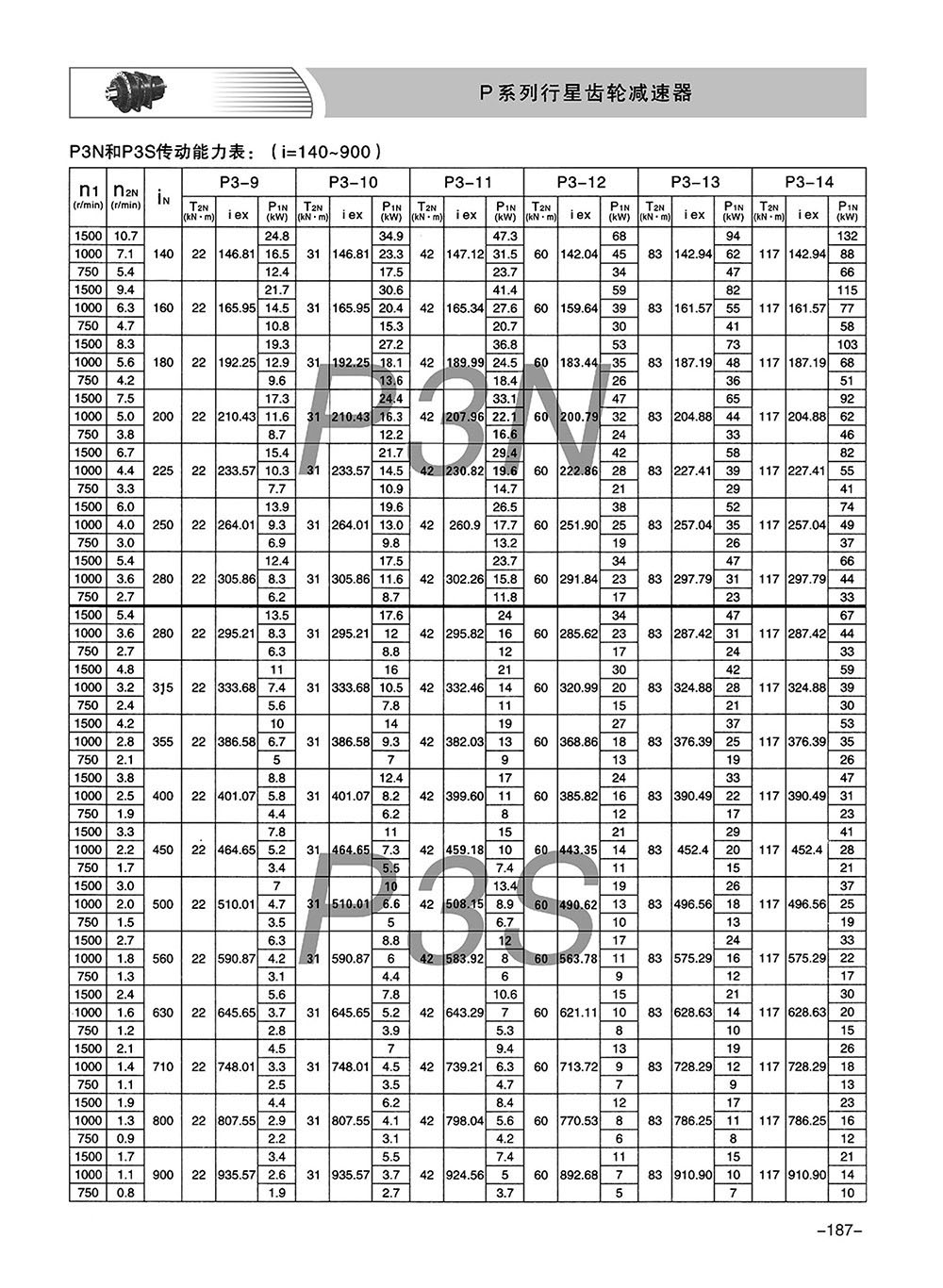

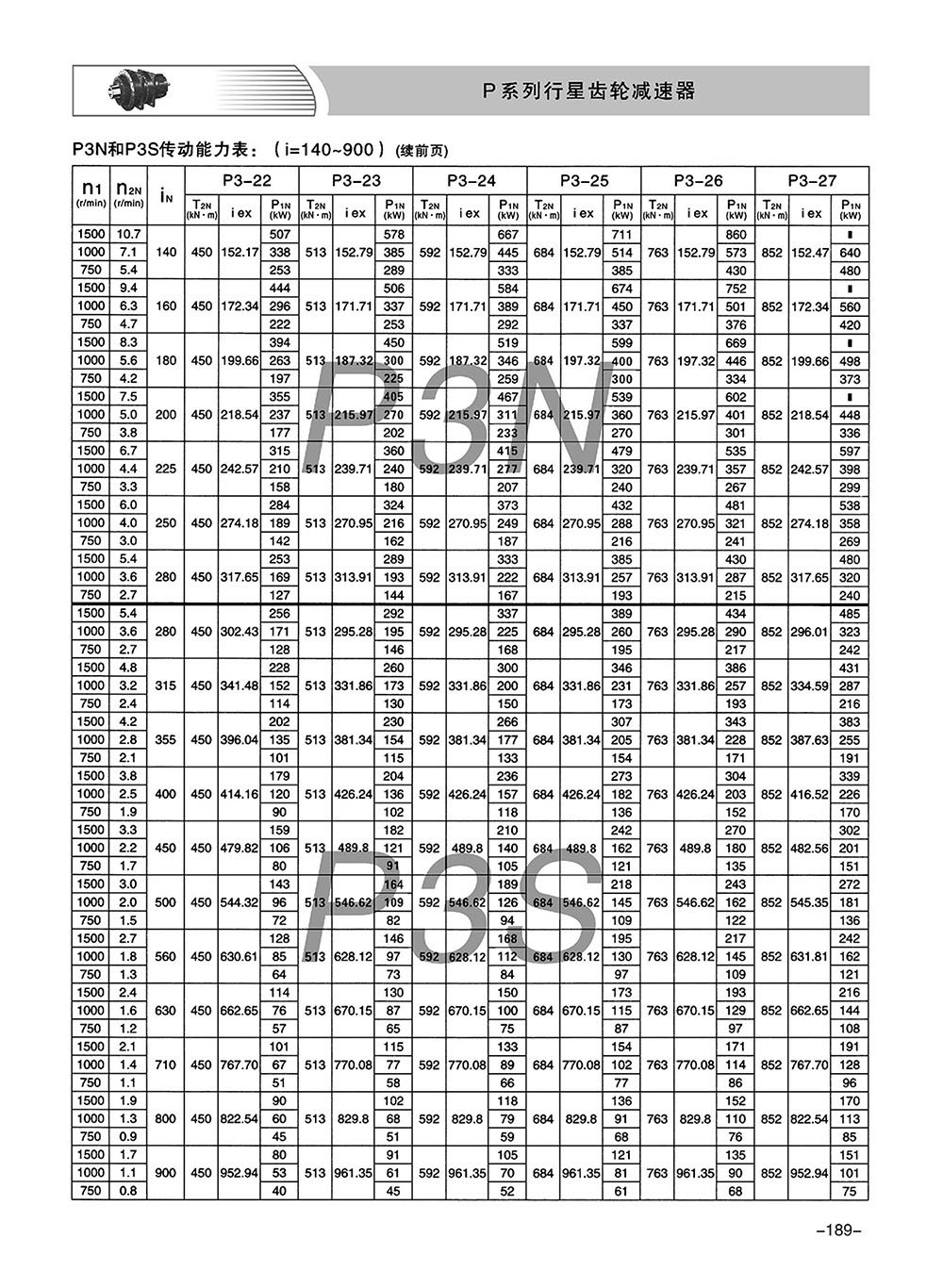

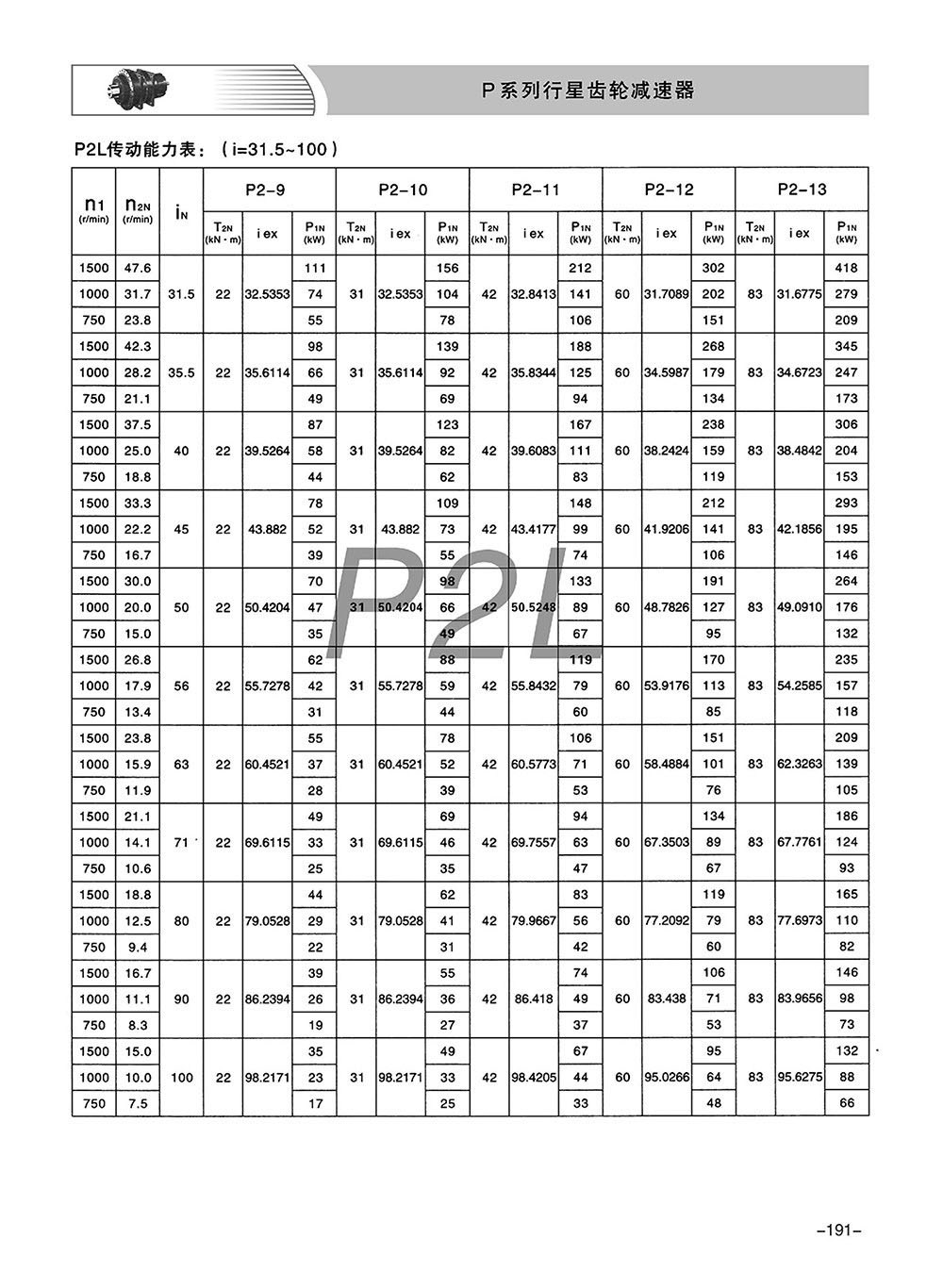

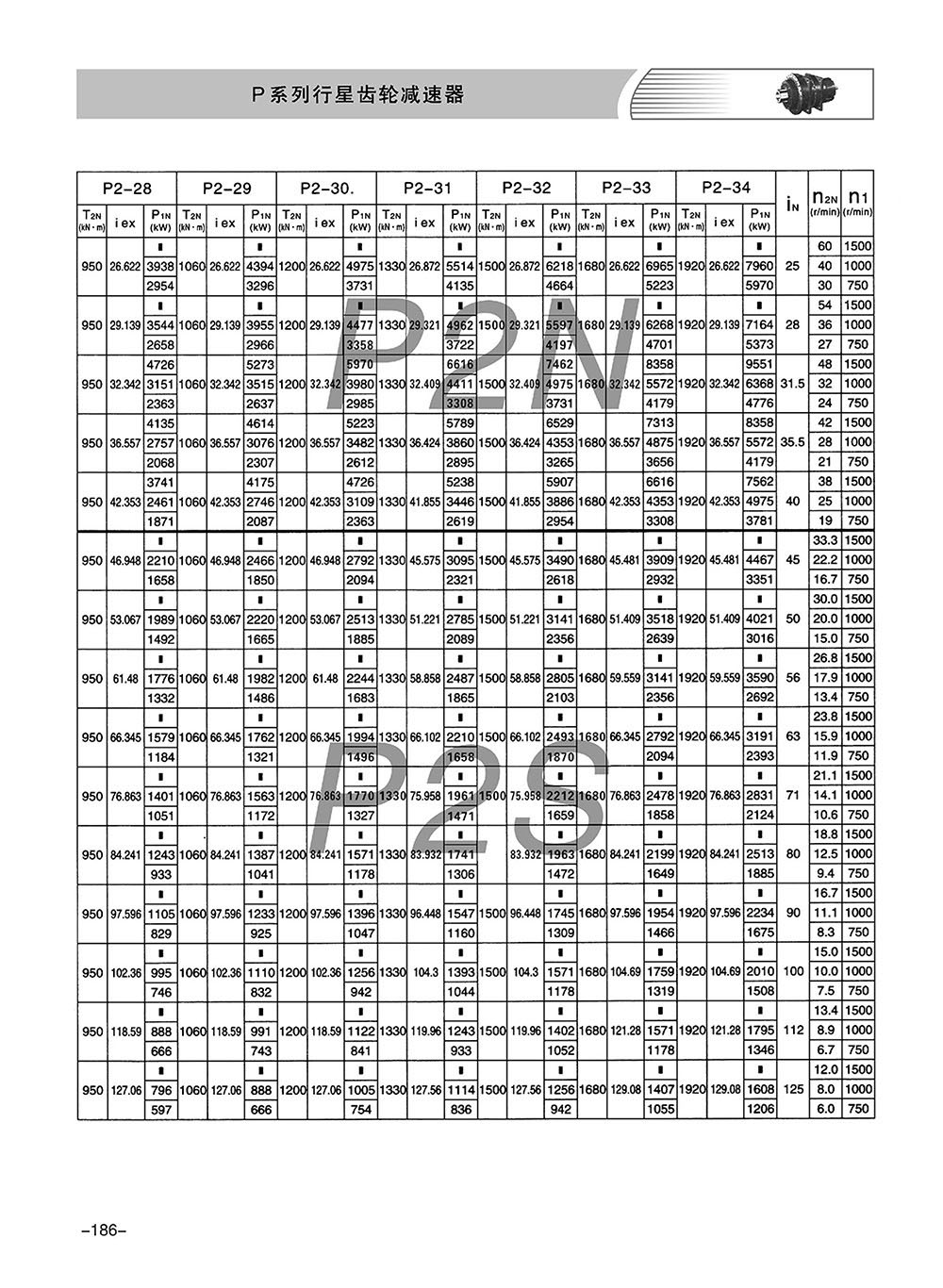

◆ The P series products range from size 9 to size 34, with planetary transmission stages of 2 and 3. The speed ratio ranges from 25 to 4000.
◆ The modular design allows for variations and combinations based on customer requirements.

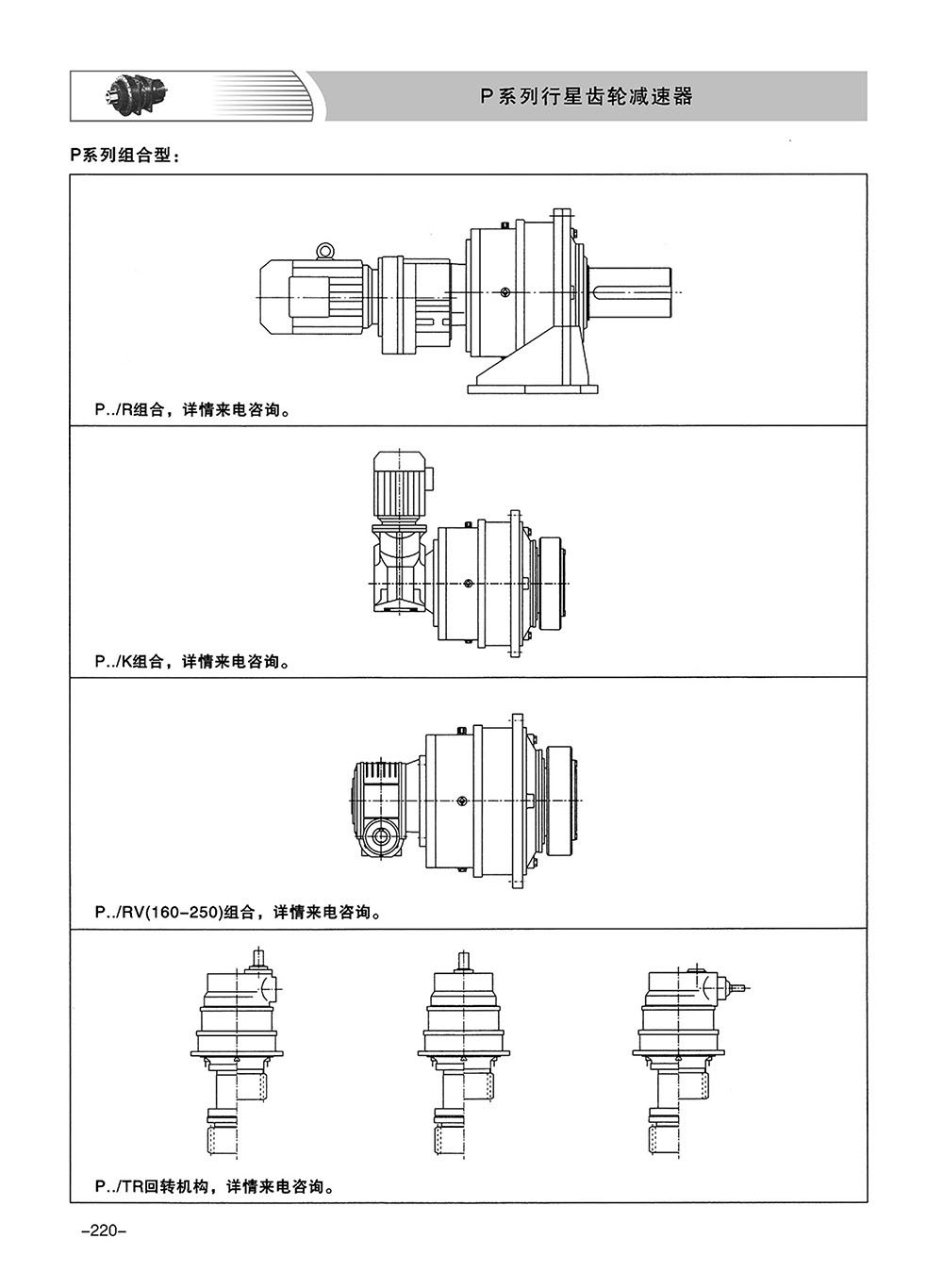

◆ When combined with R and K series, a larger speed ratio can be achieved.

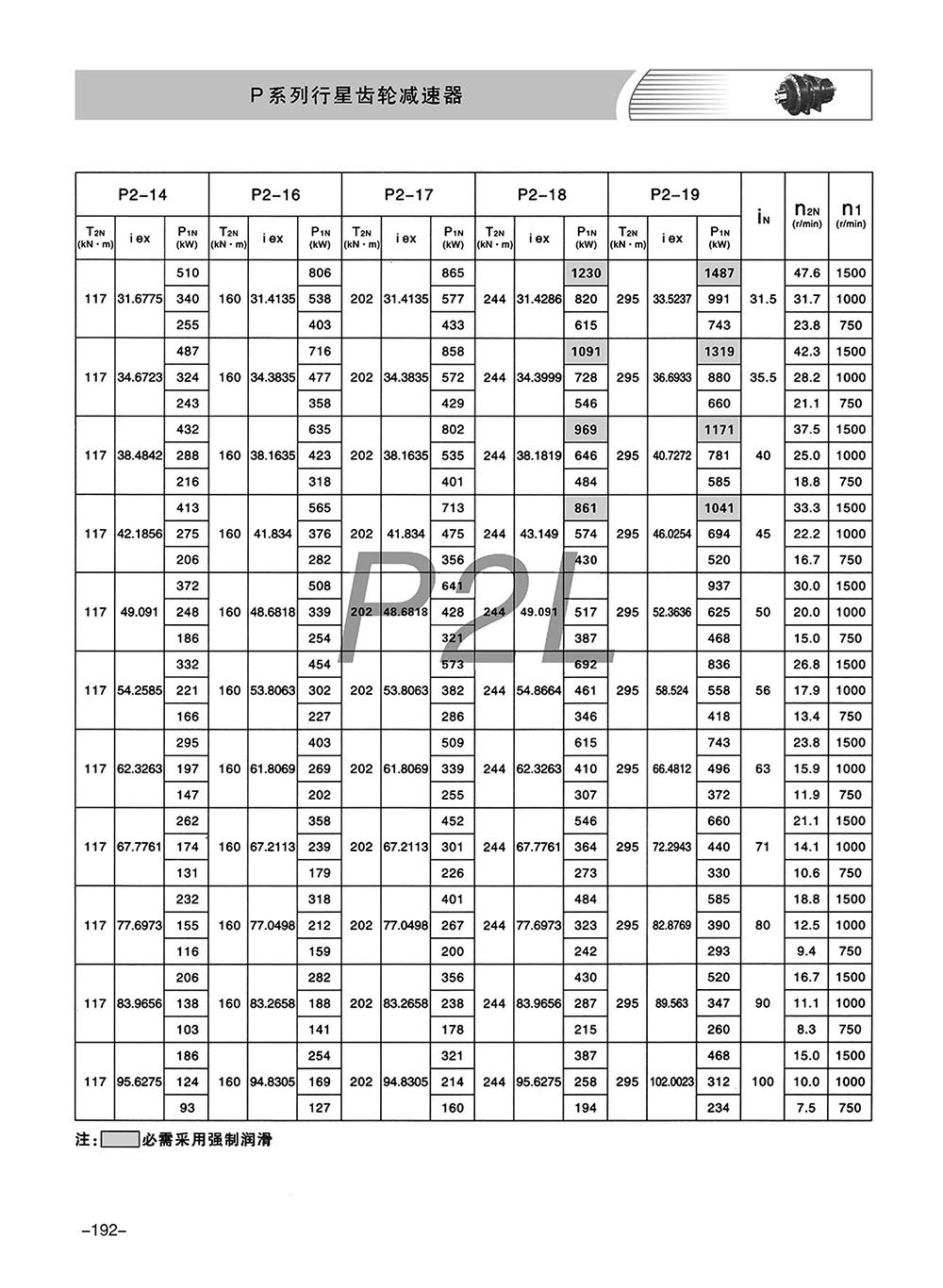

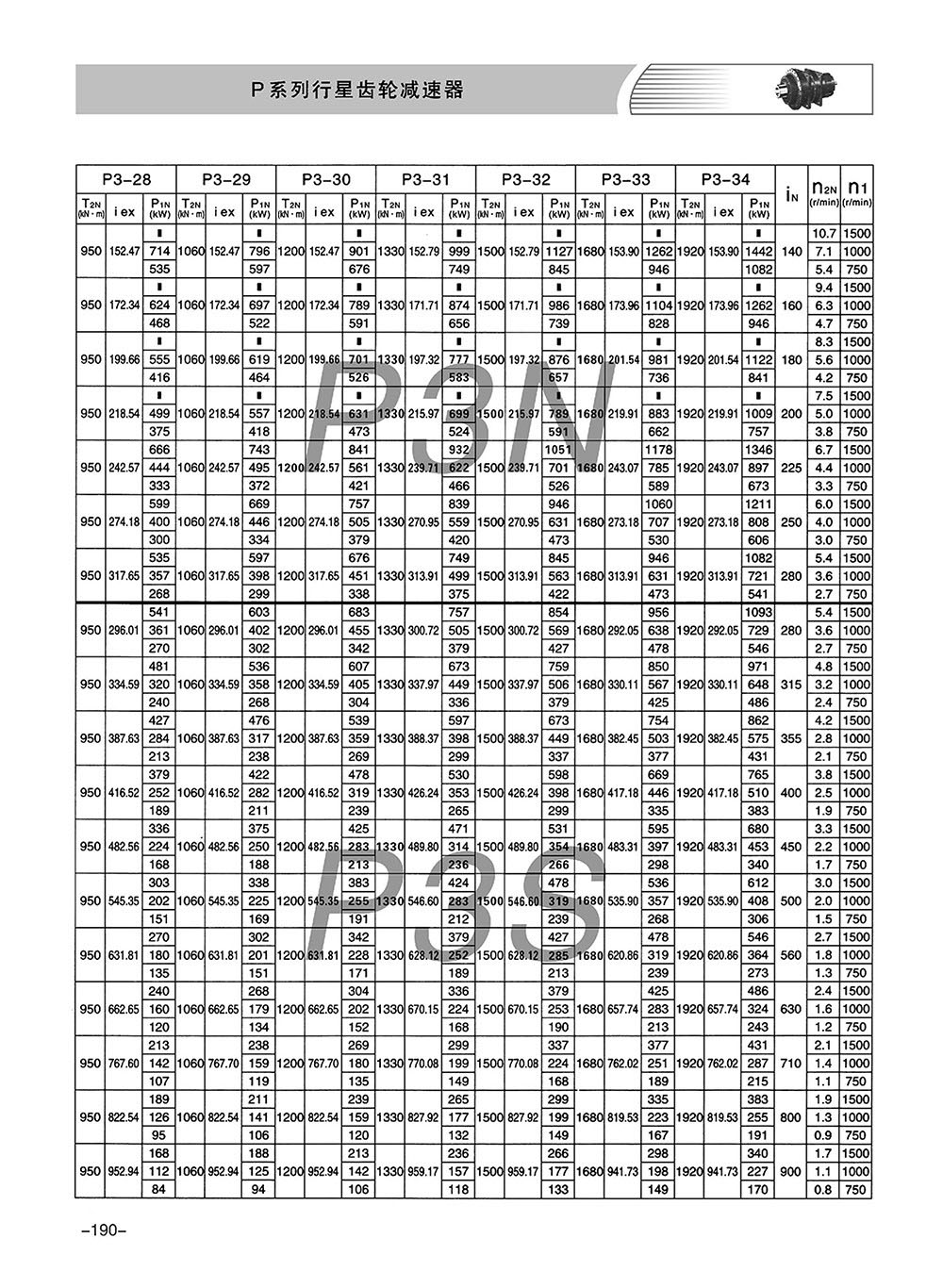

Technical parameters:
Speed ratio range: basic model 25~4000
Torque range: 2.6~900 kNm
Power range: 22~1920 kW
















































Liangqiu Machinery Co., Ltd. is a company that researches, develops, manufactures, and sells transmission machinery.
The company has a quality assurance system, complete testing facilities, computer-aided design and computer-aided manufacturing, a horizontal machining center, a CNC cone grinding wheel grinding machine, a three-dimensional coordinate meter and gear detector, and other equipment. It can design and process products for customers and develop and manufacture new products.
The company mainly produces the T series spiral bevel gear commutator, HD spiral conical gear commutator, ARA series spiral bevel gear steering box, SWL worm gear screw lift, JWM spiral lift, P planetary gear reducer, precision planetary gear reducer, WP cast iron worm gear reducer, RV worm gear reducer, R series helical gear hard gear surface reducer S series helical gear worm gear reducer, K series helical bevel gear reducer, F series parallel axis helical gear reducer, MB step-less transmission machine, WB micro cycloid reducer, X/B series cycloid pin gear reducer, HB standard industrial gearbox, M large gear reducer, Mc hard tooth surface reducer, G fully enclosed gear motor, ZDY hard face cylindrical gear reducer and other nearly 20,000 kinds of speed ratios of various types of reducer, can be matched with ordinary Y(Y2) motor, explosion-proof B(YB) motor, DC Z motor, brake E(YEJ) motor, variable frequency V(YVP) motor, variable frequency brake VE(YVEJ) motor, track G motor and all kinds of servo motor non-standard connection.
